Project overview in Shelby, NC

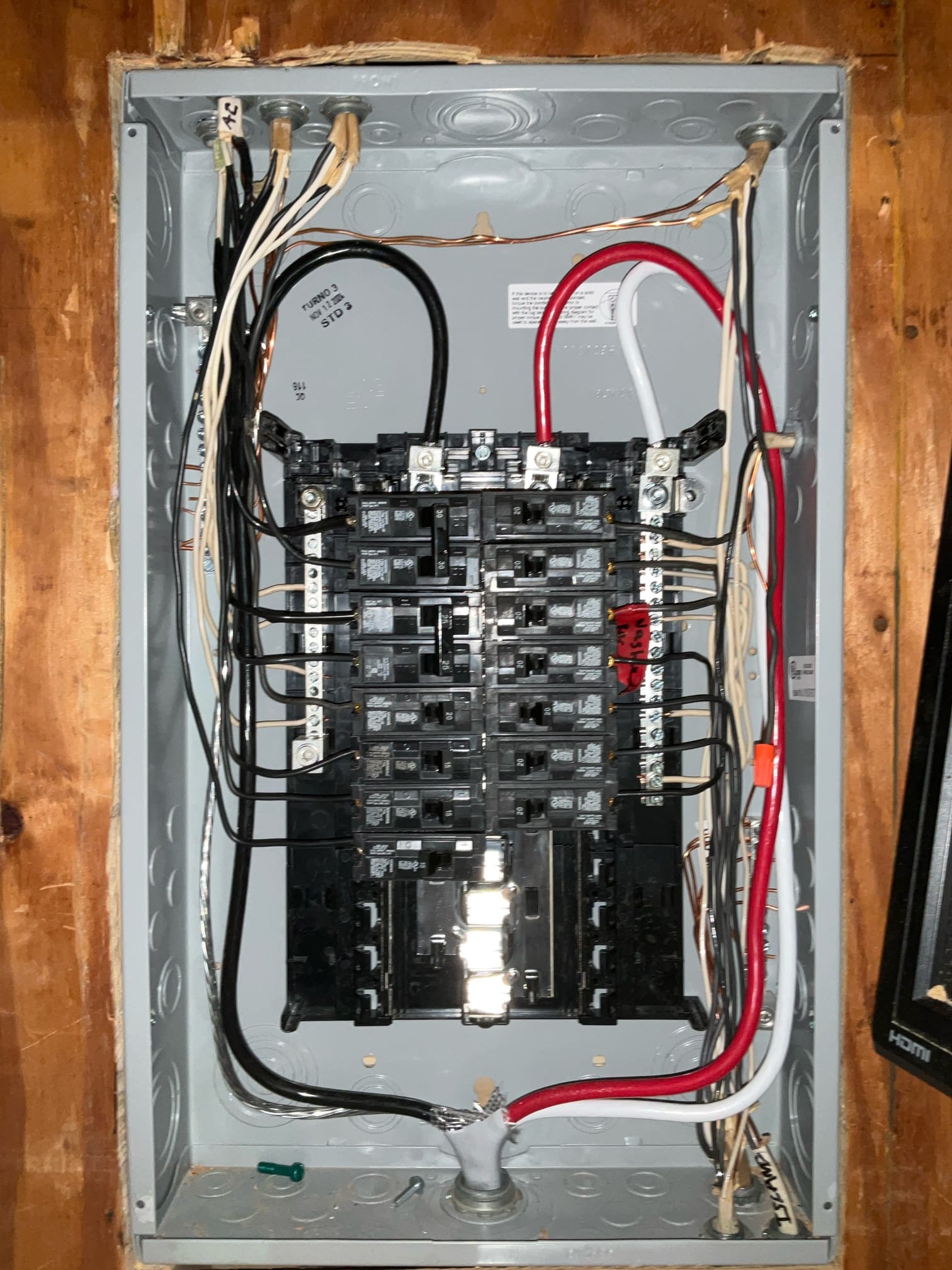

Our Charlotte branch, based out of Matthews, completed a comprehensive panel and safety upgrade for homeowner Robert Vogel in Shelby, NC. On May 6, 2025, technician Viktor Opalko consolidated two aging utility-room subpanels into a single, higher-capacity panel, added whole-home surge protection, and upgraded the grounding system for better safety and reliability.
This project falls under our Panels & Service Upgrades and Subpanel Installation services and was designed to improve electrical organization, capacity, and protection from power disturbances.
Work completed
- Replaced two subpanels with one larger 200A indoor subpanel (permitted installation).
- Installed a whole-home surge protector at the main electrical panel to divert excess voltage safely to ground and help protect connected appliances and electronics from surges.
- Upgraded grounding by installing new ground rods and a continuous grounding electrode conductor to the service equipment.
- Updated feeder with 1/0 SER, 4‑wire cable from the main panel to the subpanel to provide a dedicated equipment grounding conductor and proper neutral isolation.
- Configured new breakers to match the home’s loads and improve circuit organization.
Breaker and equipment details
- Subpanel: 200A indoor unit (permitted).
- Surge protection: Whole-home SPD designed to help guard against lightning-related surges, utility fluctuations, and equipment cycling.
- Grounding: New ground rods with continuous GEC routed to the main service equipment.
- Feeder: 1/0 SER (4-wire) from main panel to the subpanel.
- Overcurrent devices installed:
- 1× 100A 2‑pole (subpanel feed)
- 1× 30A 2‑pole (dryer, water heater, A/C, spa, EV charger, etc.)
- 1× 25A 2‑pole (small condenser, well pump, or mini‑split)
- 1× 20A 2‑pole (small appliances)
- 8× 20A single‑pole (general small-appliance circuits)
- 3× 30A single‑pole (appliances)
Result: a cleaner, safer panel layout with dedicated protection and a modern grounding path that supports today’s household loads.
Why this upgrade matters
- Improved reliability: Consolidating two subpanels into one reduces connection points and streamlines troubleshooting.
- Stronger grounding: New ground rods and a continuous GEC help clear faults quickly and reduce shock risk.
- Surge defense: The whole-home surge protector helps shield wiring and connected equipment from damaging voltage spikes.
- Future-ready: Organized circuits and modern breakers make it easier to add loads like HVAC upgrades, appliances, or EV charging.
Code and inspection notes
As local inspectors continue adopting the 2020 NEC, some existing circuits may require AFCI protection. When AFCI breakers are added, they can reveal preexisting wiring issues (such as shared neutrals) that may need diagnostic work to locate and correct. Our team is experienced with these updates and will guide you through any code-driven recommendations.
Ongoing protection with our Gold Home Safety Plan
During this visit, the homeowner enrolled in our Annual Home Safety Plan – GOLD, which includes:
- Panel inspection, voltage checks, bus bar condition, proper bonding, and sealed knockouts
- Site testing of safety devices such as the whole-home surge protector and service disconnects
- Inspection of the main electrical service (meter base, feeders, weatherhead/riser, moisture intrusion, grounding)
- Site testing of home protection systems (Smoke/CO detectors, security and camera systems)
- HVAC and major appliance disconnect checks
- GFCI testing
Gold members also enjoy service perks like extended coverage on completed work, preferred pricing on projects, and $0 dispatch and diagnostic visits.
Local service you can trust
Touchstone Electric serves homeowners in Shelby, NC from our Charlotte branch in Matthews. We deliver code-compliant installations, transparent communication, and clean workmanship on every project.
Customer feedback: Robert Vogel praised our team with a positive review after completion of this project.
If you need panel upgrades, subpanel installation, grounding improvements, or surge protection in the Shelby area, our licensed electricians are ready to help.
