Subpanel Installation and Breaker Upgrades in Maggie Valley, NC

Touchstone Electric completed a panel capacity and breaker compatibility upgrade for a home in Maggie Valley. The existing Siemens electrical panel was newer and in good condition, but it was completely full and included breakers that were not compatible with the panel. Multiple tandem breakers were also present, even though this particular panel was not designed to accept them.

To create safe, usable capacity for planned crawlspace electrical work and future circuits, our team installed a midsized indoor subpanel and made the necessary breaker upgrades. This approach allowed the homeowner to expand their electrical system without replacing an otherwise sound main panel.

Creating More Space with a Midsized Subpanel

When a main panel has no remaining room for additional circuits, a subpanel can be an efficient solution. For this Maggie Valley project, Touchstone Electric installed a 12/24 midsized indoor subpanel rated for up to 125 amps. The new subpanel provides additional breaker spaces for electrical needs while helping organize the home’s distribution system.

A properly sized and installed subpanel is especially helpful when a home needs circuits for areas such as a crawlspace, appliances, heating equipment, a range, an EV charger, or other future electrical improvements. Our electricians evaluate the existing equipment, available capacity, and the type of circuits required before recommending the right panel upgrade option.

125-Amp Feeder Breaker and PVC Conduit Installation

To supply the new subpanel, our technician installed a 125-amp, two-pole feeder breaker along with 1-inch PVC conduit and applicable fittings. Proper feeder protection and raceway installation are important parts of a safe subpanel installation, helping provide a protected path for the electrical conductors serving the added panel.

Frank Fragale completed the work with attention to the home’s existing Siemens equipment and the need for a clean, code-conscious expansion. The project also included filing the electrical permit with the county for the electrical scope of work.

Correcting Incompatible Breakers in a Siemens Panel

Electrical panels and breakers must be matched according to the equipment’s listing and manufacturer requirements. In this home, various Eaton breakers had been installed in the Siemens panel. Even when a breaker appears to fit physically, it may not be approved for use in another manufacturer’s panel.

Touchstone Electric replaced incompatible and unsuitable breakers with appropriate standard breakers for the panel. The upgrade included six 20-amp standard breakers and two 50-amp standard breakers. Correct breaker selection helps support proper panel operation and provides a safer foundation for current and future circuits.

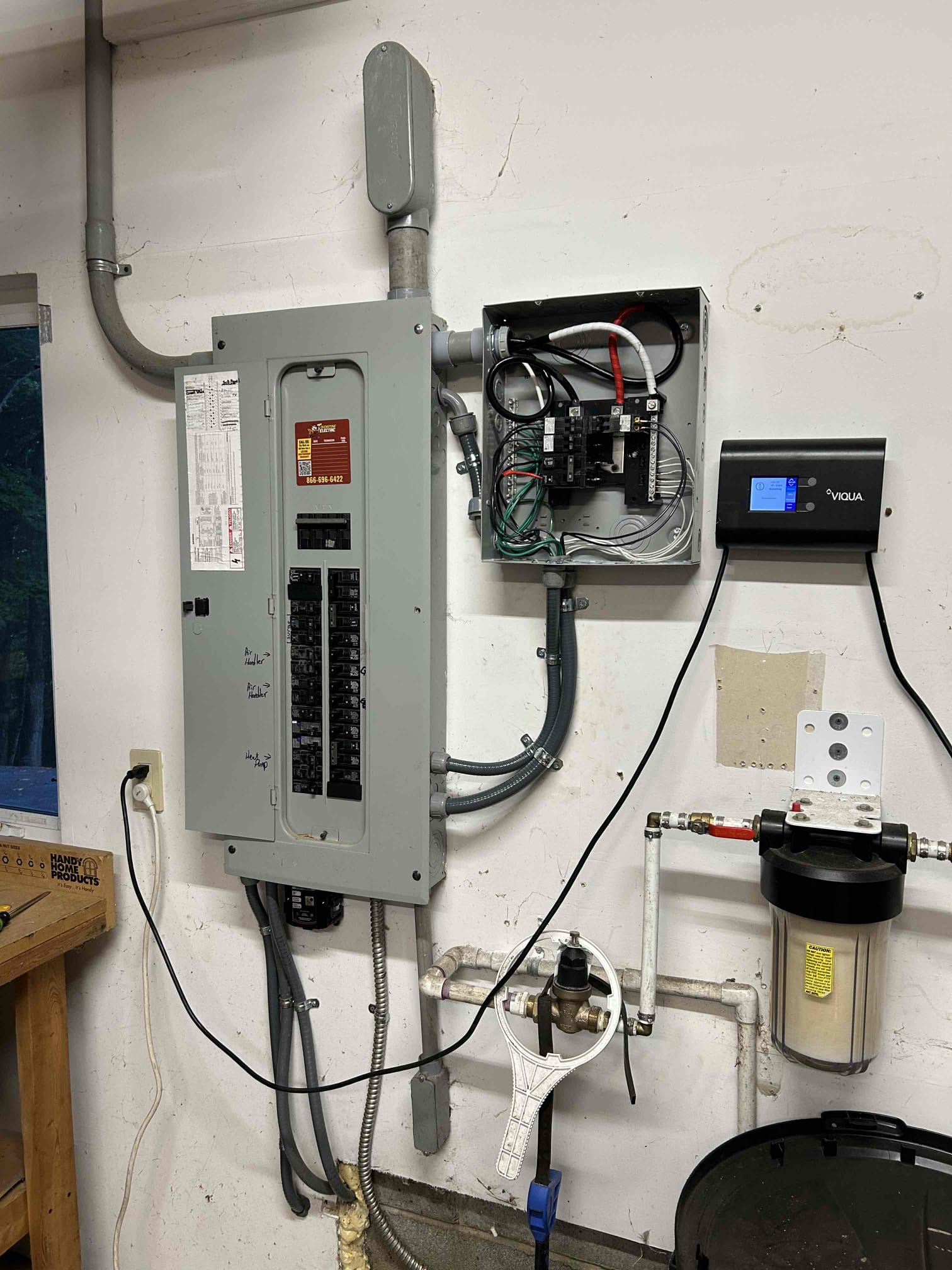

Midsized indoor 12/24 subpanel installation
125-amp two-pole feeder breaker for the subpanel
Replacement of incompatible breakers in the Siemens panel
Six 20-amp standard breaker upgrades
Two 50-amp standard breaker upgrades
1-inch PVC conduit with applicable connectors and fittings
Electrical permit filing for the completed electrical work

Code-Conscious Electrical Upgrades for Maggie Valley Homes

Electrical code requirements can vary by jurisdiction, and inspectors may require additional protections as current code standards are implemented. In some circumstances, AFCI breaker upgrades may be required. AFCI devices can reveal pre-existing wiring concerns, such as shared neutrals, that may require further troubleshooting to identify and correct.

For homeowners in Maggie Valley, adding a subpanel and updating improperly matched breakers can improve available circuit capacity while addressing important safety and compatibility concerns. Touchstone Electric provides professional panel and service upgrade solutions tailored to the condition of the existing electrical system and the needs of the home.

Customer Feedback

Bernice Richards praised Touchstone Electric with a customer review following the completed electrical upgrade project.
