200 Amp Electrical Panel Upgrade in Rock Hill, SC
Touchstone Electric’s Charlotte branch (Matthews) completed a comprehensive 200 amp electrical panel upgrade and breaker replacement for homeowner Karen Priest in Rock Hill, SC. Led by technician Josh Key, this project focused on safety, code compliance, and added capacity for present and future electrical needs. Completion date: April 22, 2025.
From permitting and inspection to labeling every circuit, our team delivered a tidy, code-compliant installation designed to protect the home with whole-house surge suppression and a robust 4‑wire feeder to the subpanel.
Scope of Work and Installed Equipment

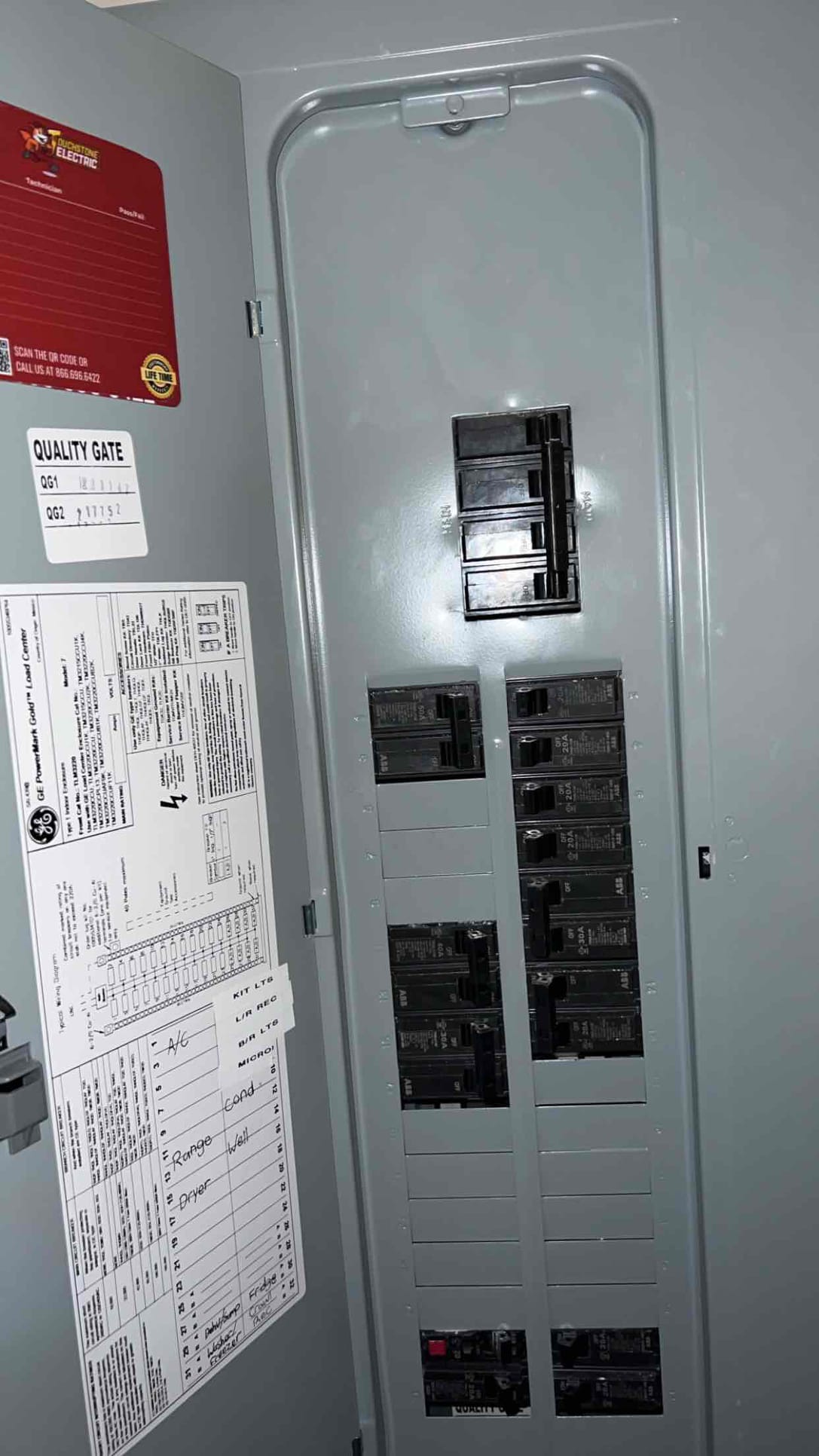

- New 200A Indoor Main Panel (Aluminum): We replaced the existing panel, installed the new main lug, labeled all circuits, and properly grounded and bonded the enclosure. The service entrance conductors and existing branch circuits were reconnected to bring the system up to current electrical code.
- Permits and Inspection: All required permitting and a final inspection were coordinated as part of this upgrade, ensuring the installation meets local and national code requirements.
- Whole-Home Surge Protection: A premium surge protector with a $10k warranty was installed to help safeguard sensitive electronics and major appliances from transient voltage spikes.
- Feeder to Subpanel: We installed a SER 4/0, 4‑wire feeder from the main panel to the subpanel for improved capacity and a clean, safe distribution path.
- Breaker Replacement and Additions: To match the upgraded service, we installed:
- Seven 20A standard single‑pole breakers (small appliances and general circuits)
- One 20A standard double‑pole breaker
- Two 30A standard double‑pole breakers (typical for dryer, water heater, A/C, spa, EV charger, etc.)
- One 50A standard breaker (common for range, furnace/air handler, small subpanel, or EV charger)
- Temporary Power Consideration: During the scheduled outage, power was disconnected; our team made a generator available for limited power usage to minimize disruption.
Note: This specific panel upgrade did not include a separate service disconnect or meter upgrade. If needed, these can be quoted as part of a tailored scope.
Code Compliance and Safety Details
Grounding, bonding, and correct labeling were key priorities to enhance safety and ease of maintenance. As local inspectors continue implementing NEC 2020 requirements, certain circuits may require AFCI protection. In some homes, adding AFCI breakers can reveal preexisting conditions—such as shared neutrals—that may cause nuisance tripping. When that occurs, additional diagnostic work may be needed to isolate and correct the issue so the breaker can function properly.
Included Home Safety Membership: GOLD
As part of this project, Karen received our Annual Home Safety Plan – GOLD, which begins with a comprehensive whole‑home electrical safety inspection:
- Panel inspection: voltage readings, bus bar condition, sealed KOs, proper bonding
- Site‑testing of safety devices: surge protector, service disconnects, and more
- Inspection of main electrical service: meter base, feeders, water intrusion, riser/weatherhead, grounding system
- Testing of home protection systems: Smoke/CO detectors, security and camera systems
- Inspection of HVAC and major appliance disconnects
- GFCI testing
Gold Member perks include:
- Upgrade to a 4‑year warranty on all work performed by Touchstone Electric
- 8% discount on today’s work (maximum $500 discount)
- $0 dispatch to your home for any reason
- $0 diagnostics for any electrical problem
Local Pros Serving Rock Hill
From our Matthews location, Touchstone Electric proudly serves Rock Hill, SC with expert panel upgrades, service upgrades, breaker replacements, surge protection, and subpanel feeders. If your home needs more capacity, better protection, or a code‑compliant modernization, our Charlotte branch is ready to help.
Customer Review
We appreciate the positive feedback from Karen Priest after this 200A panel upgrade and breaker replacement. Read her review on Google: View Karen’s Google review.
