Raleigh Pool Bonding Inspection and 500V Megger Resistance Test
Touchstone Electric’s Raleigh team completed a specialty Pool & Hot Tub Electrical service for YMCA of the Triangle in Raleigh, NC. On September 16, 2025, technician Cody Perry performed a comprehensive pool bonding check and 500V Megger resistance test to verify a reliable, low-impedance bonding network across all accessible metal components in and around the aquatic area.
This annual service helps maintain safety by confirming equipotential bonding, reducing the risk of stray voltage, and documenting any changes from the prior year.
What We Evaluated
Our Raleigh electricians mapped and tested every reachable metallic item associated with the pool environment—from large structural elements to small fasteners, such as the bolts on a diving board. The goal is to ensure each piece is effectively tied into the bonding grid, limiting potential differences that could pose a shock hazard.
- All metal components in and around the pool deck and water features
- Handrails, ladders, diving equipment, and metallic pool fixtures

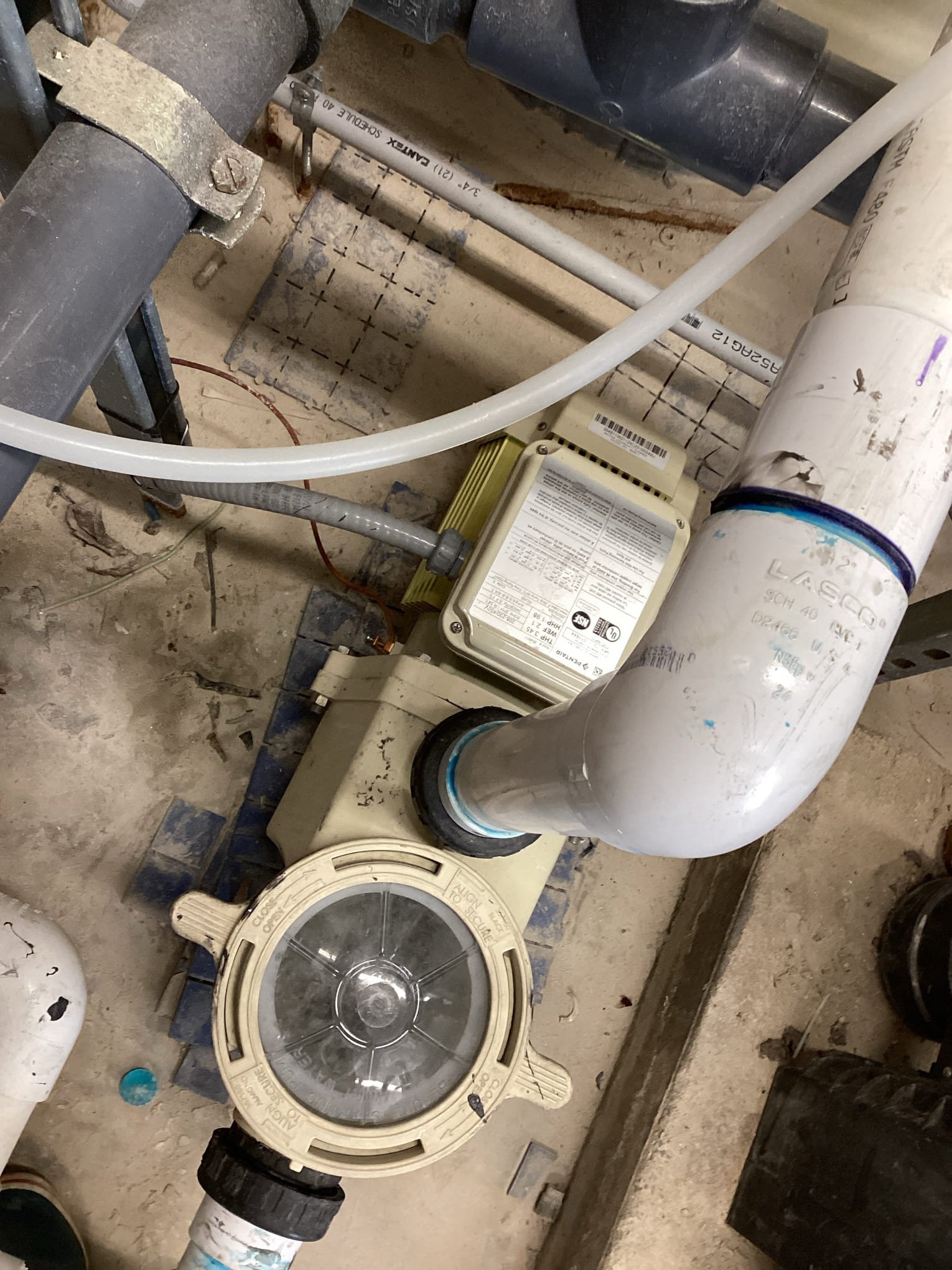

- Metallic equipment components in the machine room
- Continuity and low-resistance verification of the bonding grid
Our Step-by-Step Process
- Documented every piece of metal and created a clear diagram for reference and testing order.
- Shut down all pool equipment and VFDs (variable frequency drives) to ensure a controlled, accurate test environment.
- Isolated the bonding grid from equipment in the machine room to prevent parallel paths during testing.
- Used a dedicated bare copper test lead from the ground bond in the machine room to the meter, then to each metal component under test.
- Applied a 500V Megger test to gauge resistance of each path to the bonding grid.
- Generated a detailed Ohms of Resistance Log for every tested item, with an acceptance target of not exceeding 0.02 ohms.
This structured approach provides clear traceability, repeatability year-over-year, and a reliable basis for maintenance planning.
Documented Results and Annual Comparisons
For this Raleigh project, our team mapped all metal components, used a 500V megger, and logged resistance under 0.02 ohms. We also noted any variances from last year’s readings for follow-up and recordkeeping. If a variance suggests a loose connection, corrosion, or a component change, we initiate further inspection to pinpoint the cause and recommend corrective action.
Keeping a consistent log each year helps property managers and safety teams quickly spot trends, verify repairs, and demonstrate adherence to best practices for pool bonding.
Why Pool Bonding Matters in Raleigh, NC
Effective pool bonding equalizes electrical potential across metallic parts, helping reduce the risk of shock around pools and hot tubs. In high-traffic facilities like community and athletic centers, annual testing supports safer operations, minimizes unexpected downtime, and provides clear documentation for inspections and safety audits.
- Confirms low-impedance bonding paths to metallic components
- Helps identify loose or corroded connections early
- Creates a year-over-year testing record for compliance and maintenance
- Supports safe operation for swimmers, staff, and visitors
Proudly Serving Raleigh with Specialty Pool & Hot Tub Electrical
Touchstone Electric’s Raleigh branch delivers detail-driven testing, clear documentation, and practical recommendations for pools of all sizes across Raleigh, NC. If you manage a commercial pool, fitness facility, or community aquatic center, our local team can help you schedule routine bonding checks and address any issues uncovered during testing.
The YMCA of the Triangle praised our work in their review. See their feedback here: View Google Review.
