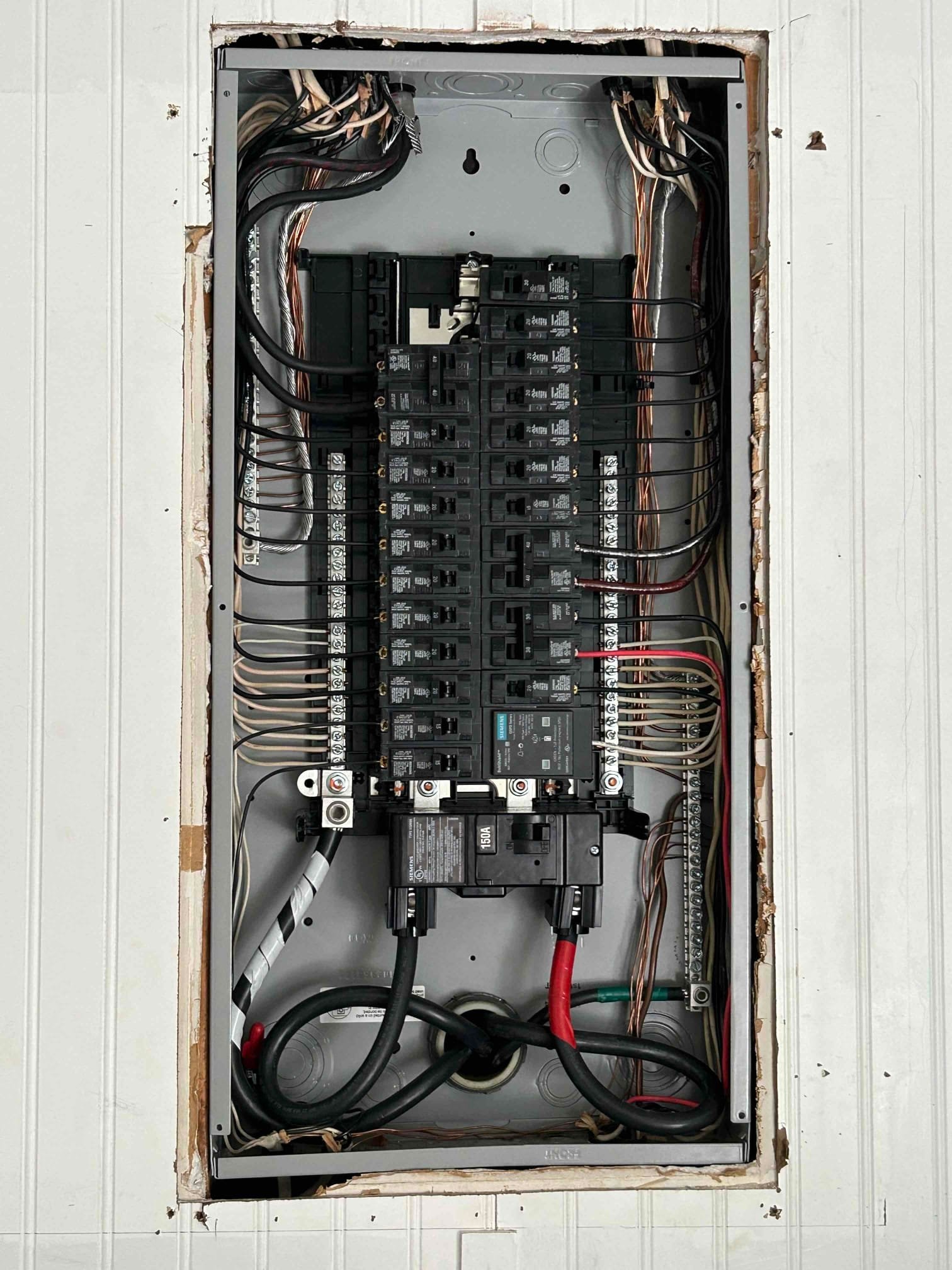

Raleigh 200A Electrical Panel Replacement & Surge Protection — Project Overview

Touchstone Electric’s Raleigh team completed a full 200-amp main electrical panel replacement and whole-home surge protection upgrade for Ground Works - Raleigh. Led by technician Gustavo Peralta, this Panels & Service Upgrades project was completed on May 4, 2026 and included permitting, code compliance, and final inspection in Raleigh, NC.

Every install is backed by our Signature Lifetime Craftsmanship Warranty for peace of mind long after the job is done.

Scope of Work and Installed Equipment

Permitting and Inspection: Pulled the required permit and coordinated final inspection with the authority having jurisdiction in Raleigh.
200A Main Panel Replacement (Indoor): Upgraded to a code-compliant main panel featuring an aluminum bus with a 20-year transferable warranty. The panel was labeled, grounded, and bonded; the service-entrance conductors and all existing circuits were safely reconnected.
Whole-Home Surge Protection: Installed a service-entrance surge protective device with a $50,000 connected-equipment warranty for 10 years.
THHN 2/0 Conductors: Installed 2/0 THHN conductors appropriate for a 200A feeder application.
New Circuit Breakers:
- 2 × 40A standard breakers
- 1 × 30A double-pole standard breaker
- 12 × 20A standard breakers
- 2 × 15A standard breakers
- 2 × 20A double-pole standard breakers
Labeling and Documentation: All circuits clearly labeled for safer operation and faster troubleshooting.
Temporary Power: During the cutover, power was safely disconnected. When needed on projects like this, our team can make a generator available for limited power usage.

Whole-Home Surge Protection in Raleigh, NC

Installed at the main panel, the surge protector diverts excess voltage to ground before it can reach sensitive circuits and appliances. This helps protect against grid fluctuations, lightning-induced surges, and everyday equipment cycling, while extending the lifespan of electronics and HVAC components.

The installed unit includes a $50,000 connected-equipment warranty for 10 years (claims are secondary to your existing insurance; direct lightning strikes are excluded). Covered items generally include major household appliances, electrical system components, and hardwired devices when properly protected by the SPD. Security systems and medical equipment are excluded.

Code, Safety, and Inspection Notes

NEC 2020 Readiness: As Raleigh inspections increasingly follow NEC 2020, some homes may be required to upgrade certain circuits to AFCI protection. Older wiring methods (such as shared neutrals) can cause nuisance tripping and may require diagnostic time to correct.
Grounding and Bonding: The new panel was grounded and bonded to current standards for a safer, more reliable system.
Professional Commissioning: Our Raleigh electricians verified torque, terminations, and proper labeling prior to inspection.

Why Raleigh Homeowners Choose Touchstone Electric

Local Expertise: Performed by our dedicated Raleigh branch.
Lifetime Craftsmanship: Backed by our Signature Lifetime Craftsmanship Warranty.
Manufacturer Support: 20-year transferable panel warranty plus a 10-year, $50k surge protection warranty.
Permit-to-Inspection: We handle the details, from permits to final inspection.

Customer Feedback

Ground Works - Raleigh praised our team with a review. Read it on Google: View customer review

Need a 200A Panel Upgrade in Raleigh?

If your home in Raleigh, NC needs a main panel replacement, added surge protection, or breaker upgrades, our local team is ready to help. Contact Touchstone Electric’s Raleigh branch to schedule an on-site assessment.
