Poolside Pergola Electrical Install and Bonding in Wilmington, NC
Completed on May 27, 2025, this specialty outdoor electrical project in Wilmington, NC was delivered by our Raleigh branch for Backyard Specialist. Lead technician Francisco Martinez provided a clean, code-compliant installation to power a motorized pergola near an existing pool, including dedicated feeds for a TV, a ceiling fan, and the pergola motor, plus critical bonding in accordance with NEC 680.26(B).
Project Overview
Our team extended power from an existing circuit near the pool equipment and transitioned neatly to the pergola structure with liquid-tight flexible conduit. We mounted a weatherproof junction box at the pergola to serve as a protected hub and ran individual conductors to each load for reliable operation and easy serviceability.
- Extended power from an existing pool-area circuit using direct-burial wiring methods sized for the load.
- Installed up to 10 ft of 1/2 in liquid-tight flexible conduit with corrosion-resistant fittings.
- Mounted a watertight, weatherproof junction box at the pergola for safe terminations.
- Ran separate feeds from the junction box to power a wall-mounted TV, a ceiling fan, and the pergola motor.
- Installed and secured the customer-supplied ceiling fan per manufacturer instructions.
- Bonded the pergola structure to the existing #8 equipotential bonding conductor per NEC 680.26(B).
Safety, Weatherproofing, and Code Compliance
Outdoor living spaces demand the right materials and methods. We used UF cable for underground runs with proper burial depth guidance, transitioned with liquid-tight flex to handle movement and moisture, and sealed every exterior connection point with weather-rated enclosures and fittings. The pergola structure was tied into the site’s existing #8 equipotential bonding conductor in accordance with NEC 680.26(B) to help reduce touch voltage differences around the pool area.
All components were selected for wet-location use, with clear labeling and service loops for future maintenance. This approach protects equipment from corrosion, keeps conductors secure, and supports reliable operation during coastal weather in Wilmington, NC.
Installed Components and Materials
- UF #12/2 direct burial cable (approx. 25 ft) for an underground feeder, with burial depth applied per code requirements.
- 1/2 in liquid-tight flexible conduit (approx. 10 ft) including connectors and supports for watertight transitions to the pergola.
- Weatherproof junction box mounted at the pergola for clean, protected terminations.

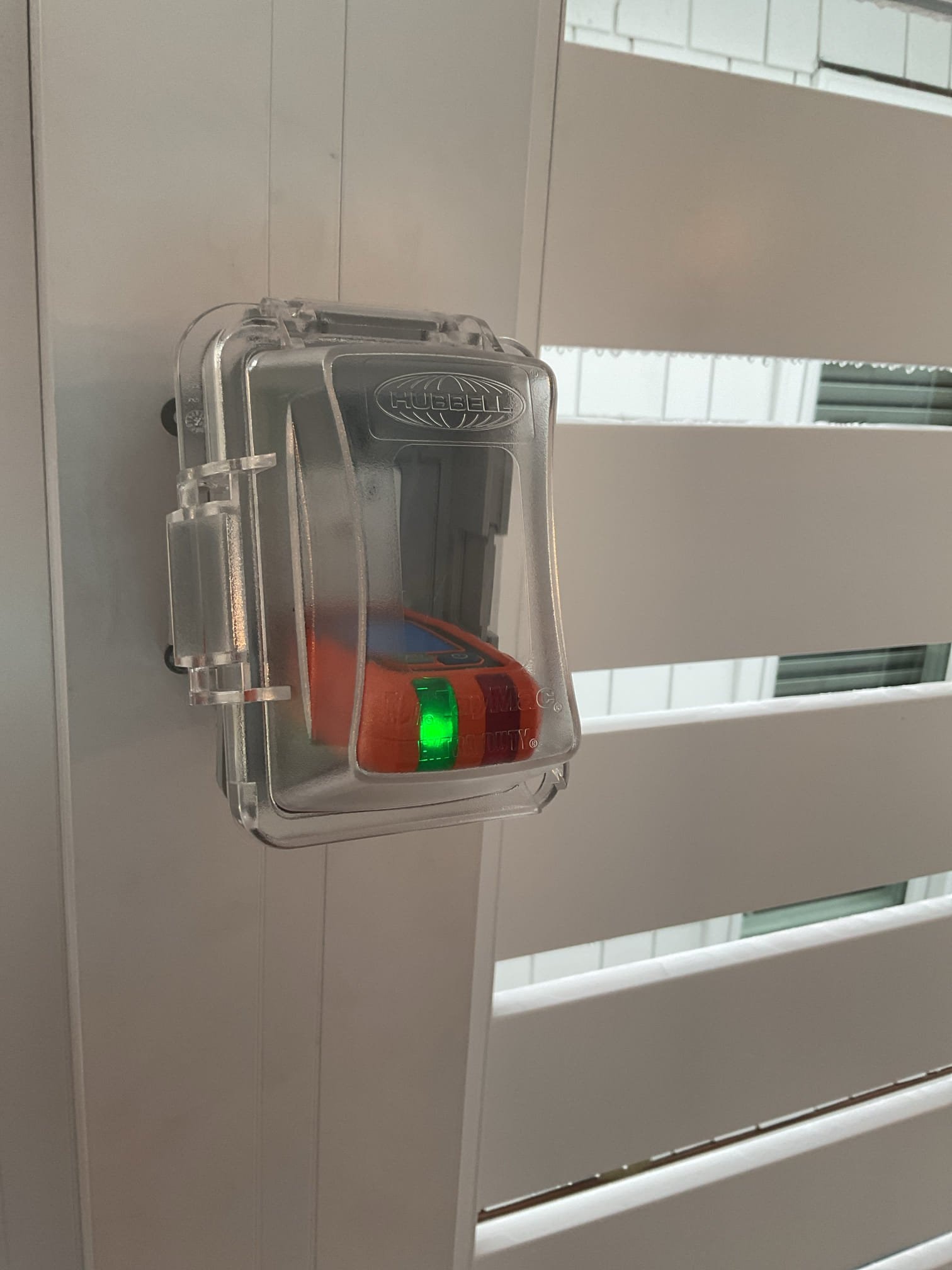

- Standard receptacle with appropriate in-use cover for safe outdoor use.
- Standard switch to control connected loads as designed.
- Customer-supplied ceiling fan installed per manufacturer specifications.
- Bonding connections to integrate the pergola with the existing #8 equipotential conductor.
Benefits for This Wilmington Pergola
- Dedicated power for a motorized pergola, ceiling fan, and TV—bringing comfort and entertainment outdoors.
- Neat cable management with serviceable junction points for future upgrades or maintenance.
- Weatherproof conduit and enclosures to perform in coastal conditions.
- Bonding per NEC 680.26(B) to support safer poolside operation.
Local Expertise You Can Trust
Touchstone Electric’s Raleigh branch serves homeowners and contractors across Wilmington, NC with specialty pool and hot tub electrical, pergola and patio wiring, outdoor lighting, and bonding solutions. Our licensed technicians understand coastal environments and the specific code requirements for pool-adjacent equipment, so your project looks great and performs safely.
