Pool Pump Circuit, Bonding, and Surge Protection in Iron Station, NC
Touchstone Electric’s Charlotte team (Matthews branch) completed a specialty pool and hot tub electrical project for homeowner Joyce Keehan in Iron Station, NC. On 04/25/2024, technician Jake Keele installed a dedicated pool pump circuit with a 20A GFCI, established proper bonding for the pool equipment, added an equipment disconnect for safe servicing, and upgraded the home with whole-house surge protection.
Scope of Work
- Dedicated 20A GFCI pool pump circuit: Installed a two‑pole 20‑amp GFCI breaker to protect the pump motor and meet safety requirements around water.
- Equipment disconnect: Added a code-required 30A disconnect to safely isolate power during maintenance.
- Bonding and grounding: Established a bonding path to reduce voltage differences around the pool area and grounded all associated pool equipment.
- Wiring and conduit: Ran new NM‑B 12/2 cable where appropriate and used THHN conductors in PVC conduit for durable, outdoor-appropriate routing.
- Panel work: Completed panel upgrades, including installing the GFCI breaker and an additional standard breaker to support the system needs.
- Whole‑house surge protection: Installed a panel-mounted surge protective device to help safeguard appliances, HVAC equipment, electronics, and the new pump from damaging power spikes.
Why This Matters for Pool Safety and Performance
A properly installed pool pump circuit is critical for reliable filtration and water quality. The GFCI protection helps reduce shock risks near water, while an accessible equipment disconnect lets technicians safely service the pump. Equally important, bonding and grounding work together to minimize stray voltage around metallic parts and connected equipment.
Adding whole‑home surge protection at the main panel provides another layer of defense for sensitive electronics and motors—especially valuable during summer storms common in the greater Charlotte region.
Installation Details
- Set a dedicated two‑pole 20A GFCI breaker for the pool pump circuit.

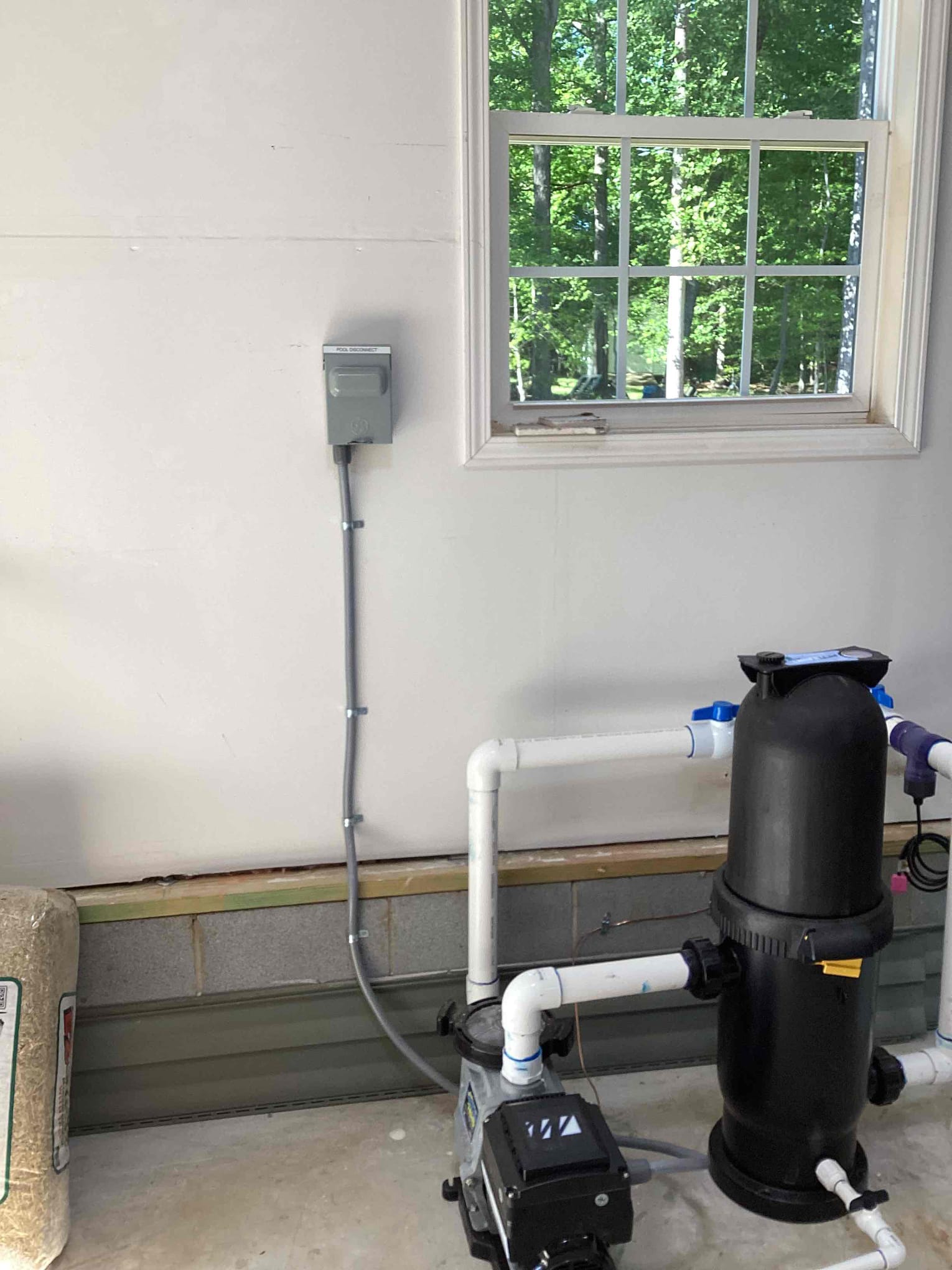

- Installed a 30A equipment disconnect adjacent to the equipment location for quick power isolation.
- Routed new NM‑B 12/2 cable for interior runs and transitioned to PVC conduit with THHN conductors where outdoor protection was needed.
- Completed a bonding connection to the pool equipment grounding lug and tied metallic components into a unified bond path.
- Mounted and wired a panel-based surge protective device to help absorb voltage spikes before they reach branch circuits.
All work was performed with attention to neat terminations, appropriate support and fastening, and code-compliant methods suited for pool and spa environments.
Local Expertise in Iron Station
As a local residential electrical contractor serving Iron Station, NC, our Charlotte team based in Matthews understands the unique needs of pool and hot tub installations. From new circuits and GFCI protection to bonding, grounding, and surge protection, we deliver safe, reliable solutions tailored to your property.
Customer Feedback
We’re proud to share that Joyce Keehan praised our service after completion. Read the review here: Google Review.
Need Pool or Hot Tub Electrical in Iron Station?
If you’re planning a new pool pump, replacing equipment, or looking to upgrade protection with a whole‑home surge device, Touchstone Electric can help. Our team provides clear communication, clean workmanship, and solutions designed for long‑term safety and performance.
- Pool and hot tub circuits, GFCI and bonding
- Equipment disconnects and panel upgrades
- Surge protection for the whole home
- Professional installation by our Charlotte (Matthews) branch
Contact Touchstone Electric to schedule your project in Iron Station, NC and nearby communities.
