Project overview
Our Charlotte team (Matthews branch) completed a clean, code‑compliant outdoor subpanel installation and service upgrade for a home in Mint Hill, NC. Led by technician Tyquan Johnson, the project was finished on April 27, 2026 and focused on adding safe capacity for exterior circuits while modernizing grounding and surge protection.
For this Panels & Service Upgrades project, categorized under Subpanel Installation, we provided permitting, trenching, a new 4/0 SEU feeder, grounding enhancements with rods and #6 copper, and whole‑home surge protection for reliable, long‑term performance.
What we installed
- Electrical permit: We filed the electrical permit with the county to ensure inspections and compliance. Note: only the electrical permit is included; any non‑electrical permits required by the jurisdiction are separate.
- Outdoor midsize subpanel (12/24, up to 125A): Weather‑rated subpanel mounted outdoors to add capacity for present and future loads while keeping labeling, bonding, and clearances tidy and to code.
- New feeder with 4/0 SEU cable (approx. 75 ft): Heavy‑duty 3‑wire service‑rated cable to deliver dependable power from the service equipment to the new subpanel.

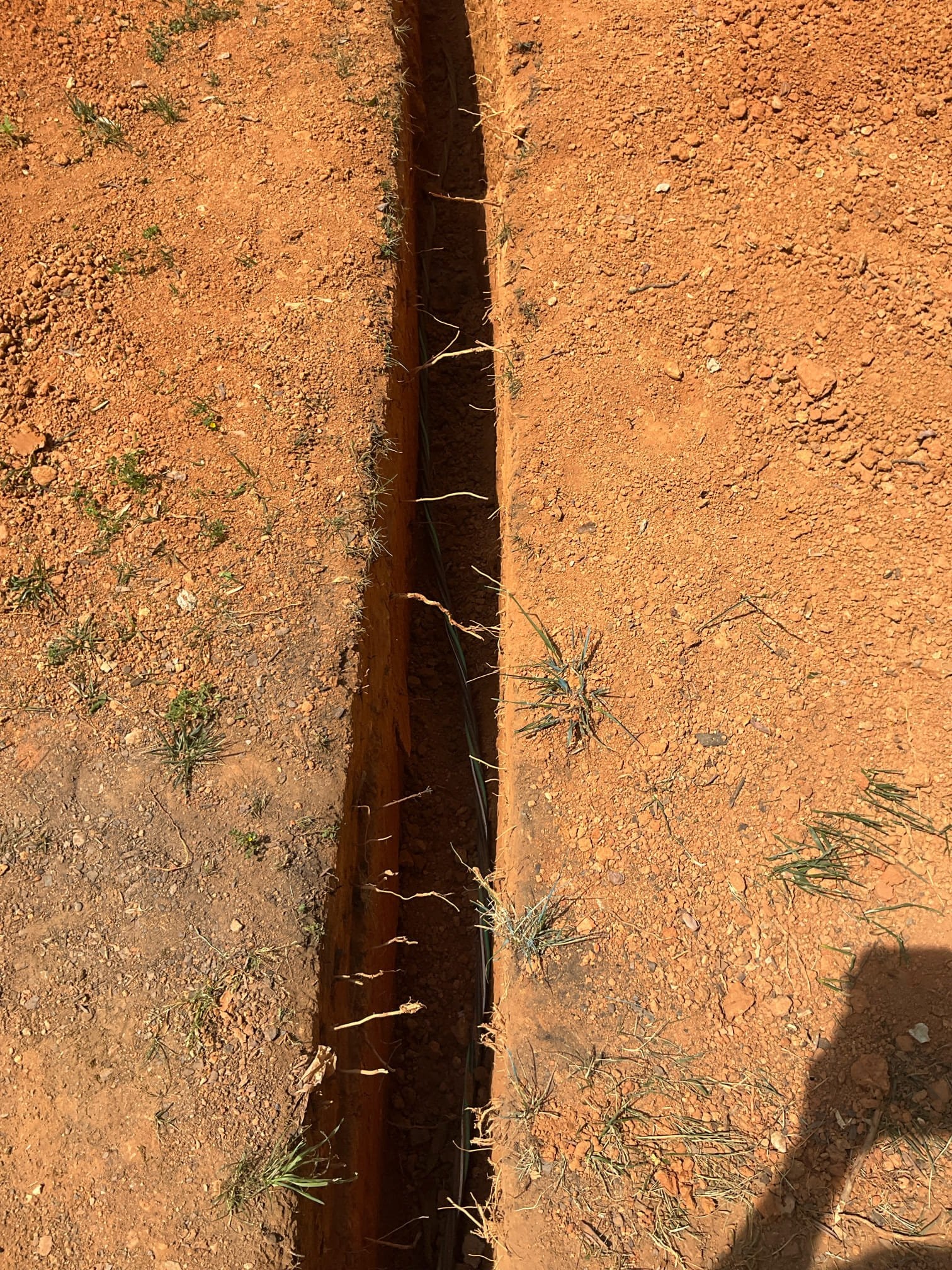

- Trenching (approx. 75 ft at 18–24 in.): Proper burial depth for protection and code compliance. Utility locating (811) is required prior to digging to prevent damage to underground services.
- Liquid‑tight flexible conduit (1‑1/2 in., approx. 15 ft): Used with appropriate fittings and terminations for a durable, weather‑resistant installation where flexibility is needed.
- Grounding upgrades: Installed new ground rods and ran #6 bare copper grounding conductors, bonding all connections securely for a low‑impedance path to earth.
- Special breaker: A specialty breaker was provided to properly match the system configuration and new equipment.
- Whole‑home surge protector ($10k / 3yr): Panel‑mounted SPD to divert excess voltage from lightning‑related surges and grid fluctuations, helping protect appliances and electronics. Coverage is secondary to home insurance and excludes direct lightning strikes.
Why this upgrade made sense for a Mint Hill home
An outdoor subpanel improves accessibility and makes it easier to add circuits for patios, workshops, EV chargers, pools, and landscape lighting—without overloading the main panel. The new 4/0 SEU feeder and enhanced grounding increase safety and reliability, while the surge protector helps safeguard HVAC equipment, kitchen appliances, lighting, and other hard‑wired devices from damaging voltage spikes.
Code, safety, and permitting
We handle permitting and coordinate inspections so the installation is documented and compliant. As local inspectors continue adopting NEC 2020, some homes may require updates such as AFCI protection on certain branch circuits; when these are called out during inspection, we advise homeowners on the best path to compliance.
Before trenching, 811 utility locating is essential to identify buried services. Our team follows proper burial depths, support, and transition methods when routing feeders and conduit outdoors.
Local expertise from our Matthews branch
Touchstone Electric serves Mint Hill, NC and the surrounding Charlotte area with professional panel work, subpanel installs, grounding upgrades, and surge protection. Our Matthews branch pairs careful workmanship with clear communication so your project passes inspection and performs as intended for years to come.
Customer review
John Erickson praised our team for this project. Read and share the review on Google: View John’s Google review.
Thinking about a subpanel or service upgrade?
If you need more capacity for outdoor circuits, want to protect your home with a whole‑house surge protector, or are planning an addition in Mint Hill, we can help. Reach out to Touchstone Electric’s Matthews branch to schedule an assessment and get the right solution for your home.
