Outdoor GFCI Outlet & Sump Pump Circuit Installation in Concord, NC
Touchstone Electric’s Charlotte team from our Matthews branch completed a reliable outdoor power solution for Cantey Foundation Specialists in Concord, NC. On December 6, 2024, technicians Patrick Burke and Ben Lively installed a dedicated sump pump circuit with a weatherproof GFCI outlet to ensure dependable operation and safe access to power outdoors.
As a local leader in Outlets & Switches and Outlet Installation & Repair, we designed and installed a clean, code-conscious pathway from the customer’s electrical building to the sump pump location at the front of the site.
Project overview
The goal was to run a new 20-amp circuit to power a sump pump and provide a weather-resistant GFCI receptacle that could be serviced easily. The installation needed to bridge an above-ground section between an electrical building and a cinder block wall, then transition to an underground conduit run to reach the pump location.
Because the source panel supplies a PLC panel, our team coordinated a planned shutdown to tie into the circuit safely with minimal disruption to operations.
What we installed

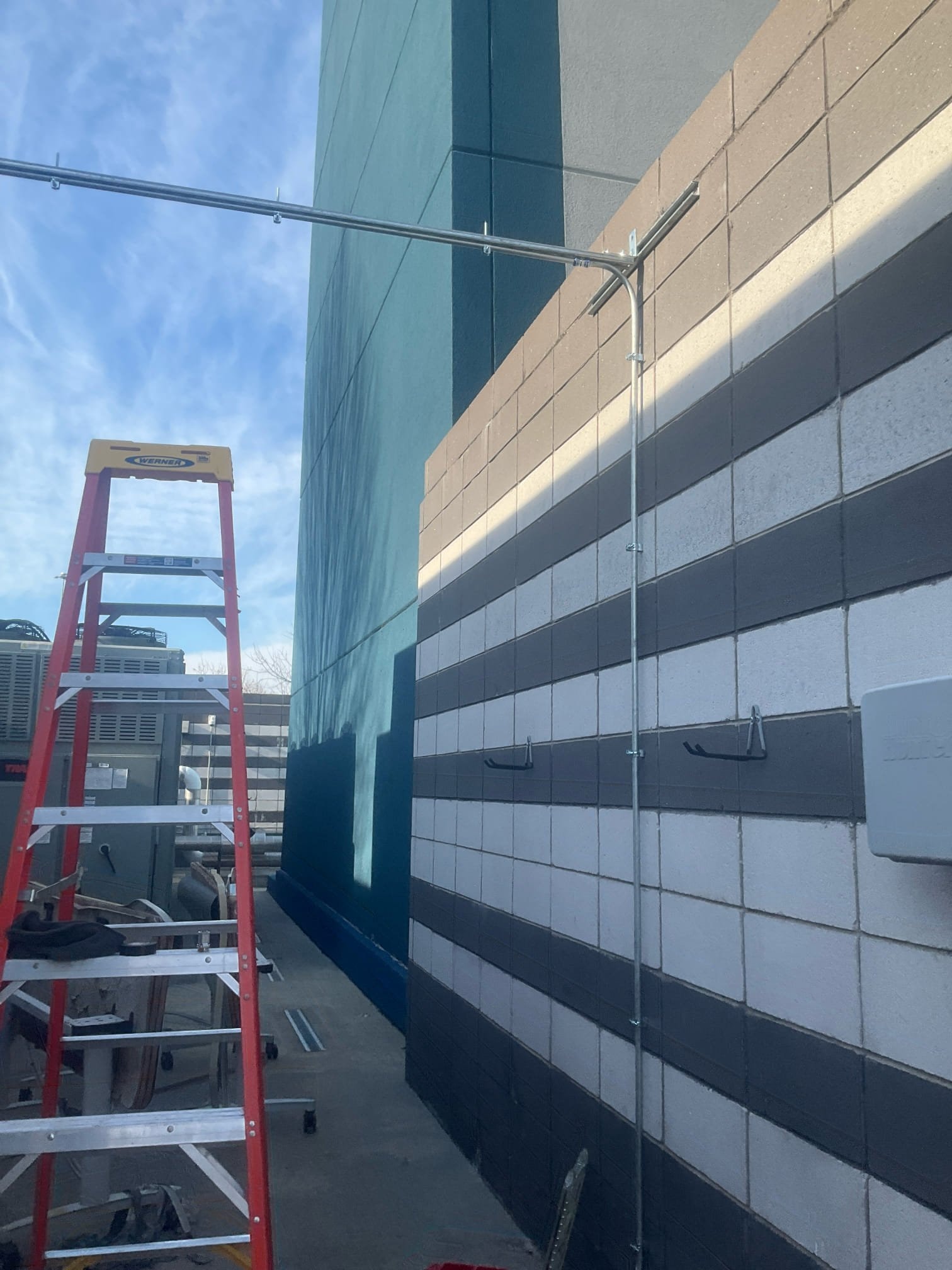

- EMT conduit run (1/2 in.) from the electrical building toward the sump pump location, with secure Unistrut supports between the structure and the cinder block wall for a neat, durable pathway.
- Wall penetration and junction box mounted on the inside of the cinder block wall to provide a clean transition point and service access.
- PVC conduit (1/2 in.) underground for the exterior segment to the pump, transitioning from EMT to PVC for corrosion resistance below grade.
- Trenching at approximately 12 in. depth for the underground portion to protect the wiring and conduit run. Utility locating was observed ahead of digging in accordance with best practices.
- Dedicated conductors pulled using THHN #12 wiring for a robust 20-amp outdoor circuit designed to handle pump startup loads and the GFCI receptacle.
- Weatherproof power point on a wood post set in concrete, complete with a GFCI receptacle and an in-use bubble cover to protect against rain and splashing while in operation.
- Planned panel shutdown of the source panel feeding the PLC equipment to perform tie-ins safely and restore power promptly once the work was complete.
- Two-man crew with an additional wireman on site to keep the project efficient, safe, and on schedule.
Why this approach works
Using EMT above ground provides a rigid, professional finish and excellent mechanical protection, while PVC underground resists moisture and corrosion. The Unistrut supports keep the EMT aligned and secure, reducing wear over time. A dedicated 20-amp circuit helps ensure the sump pump has the capacity it needs, and the outdoor GFCI adds critical shock protection in wet locations.
The in-use bubble cover keeps the outlet protected whether something is plugged in or not, extending the life of the receptacle and maintaining safe operation through the seasons.
Results and customer feedback
The finished installation delivers a clean, serviceable pathway from the electrical building to the sump pump with a sturdy, weather-ready GFCI power point on a dedicated post. Cantey Foundation Specialists praised our team with a Google review. Read it here:
