Meter Base Riser, 250A Feeder, Permit, and Grounding Upgrade in Monroe, NC
Touchstone Electric completed a full service-entry improvement for a homeowner in Monroe, NC, delivering a weather-ready meter base riser with a new weatherhead, a 250-amp feeder run, county electrical permitting, and a grounding system upgrade. This Panels & Service Upgrades project, categorized under Meter Base & Service Replacement, was performed by our Matthews-based Charlotte team and completed by technician Mark Viktorovich on November 20, 2025.
Project Scope and What We Installed

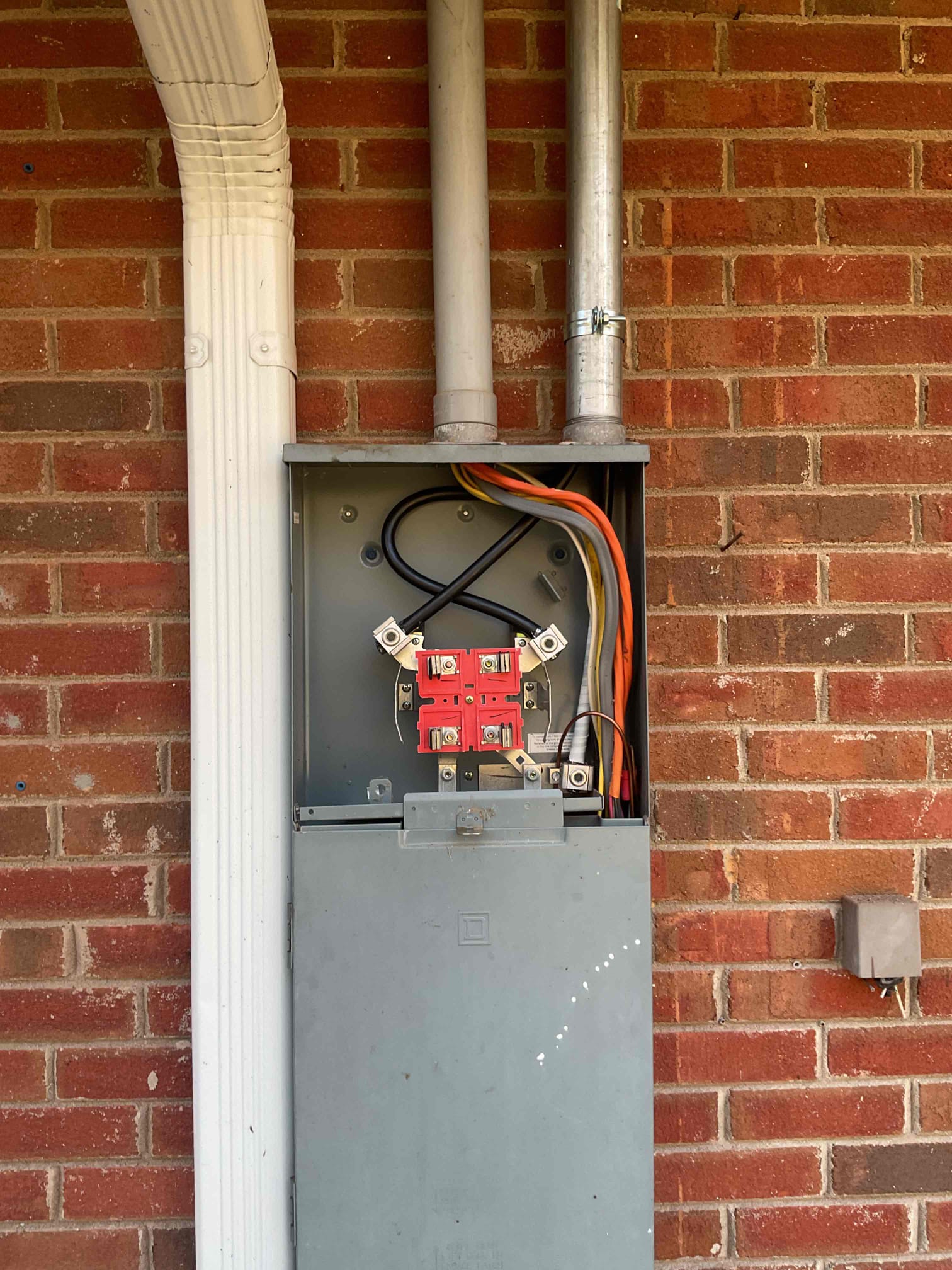

- Meter Base Riser with Weatherhead: We installed IMC conduit from the meter base to the weatherhead, with proper strapping and a roof boot at the roof penetration. A new service-entrance cable was pulled from the meter to the weatherhead to ensure a secure, weather-resistant service mast. Note: the meter base unit itself was not part of this specific line item’s scope.
- 250A THHN Feeder (30 ft): We pulled approximately 30 feet of THHN 4/0 (3–4 strand) conductors to support a 250-amp+ feeder for the main panel or subpanels, providing the capacity needed for modern household electrical demand. This feeder component does not include conduit or a main breaker as part of its scope.
- Electrical Permit Filing: Our team filed the electrical permit with the county and performed the work to current code standards. Please note: jurisdictions may require non-electrical permits (such as Historic Preservation, Environmental/Septic, Zoning, or Builder permits). These are not included in the electrical permit and, if needed, we’ll advise on next steps or provide pricing for processing those additional permits.
- Ground Rod and GEC Upgrade: We drove a new ground rod and replaced the grounding electrode conductor (GEC) to create a continuous, code-compliant path to the main service panel. This upgrade improves fault clearing and surge performance and is provided up to a specified distance as part of this scope.
Together, these measures improve service reliability, weather protection at the mast, and system safety through a robust grounding and bonding path—all essential steps when upgrading services in Monroe, NC homes.
Built for Code Compliance and Long-Term Reliability
- Weather-ready service entry: Proper mast sealing with a roof boot and a weatherhead helps shed water and protect conductors.
- Correct conductor sizing: 4/0 THHN conductors provide capacity for a 250-amp feeder run when paired with appropriately rated equipment.
- Continuous grounding: A continuous GEC from the ground rod to the main service panel supports safe fault paths and inspection readiness.
- Permitted and inspected: Work was permitted with the county to streamline final inspection and documentation.
Why Monroe, NC Homeowners Choose Touchstone Electric
- Local expertise: Performed by our Matthews/Charlotte team with deep familiarity in Monroe and surrounding communities.
- Skilled technicians: Experienced pros like Mark Viktorovich deliver neat workmanship and clear communication.
- Transparent scopes: We outline exactly what’s included—so you know where meter, feeder, permit, and grounding items begin and end.
- Permit handling: We manage the electrical permit process with your local authority and advise on any additional requirements.
- Code-first approach: Installations align with the NEC and local amendments for safety and longevity.
Customer Feedback
After the project, David Heverly praised our work with a positive review. Read it here: Google review for this Monroe, NC service upgrade.
Serving Monroe, NC with Panels & Service Upgrades
If your Monroe home needs a meter base and service replacement, a 200–250A service upgrade, or grounding improvements, our Charlotte branch is ready to help. From weatherheads and risers to heavy-gauge feeders and compliant grounding, Touchstone Electric delivers safe, inspection-ready results.
Contact our team to schedule an assessment for your next service upgrade in Monroe, NC and get your home ready for today’s electrical demands.
