Mint Hill 20-Amp Outlet Circuits for Sump Pump and Dehumidifier
Touchstone Electric’s Charlotte team from our Matthews branch completed a dedicated power upgrade in Mint Hill, NC for homeowner Julia Caporale. On July 8, 2026, technicians Matt Silber and Will Cruz installed two new 20-amp outlet circuits to reliably power a crawl space dehumidifier and sump pump—key equipment for keeping moisture under control and protecting the home.
This project fits our Outlets & Switches expertise and is a common request within our Outlet Installation & Repair services, especially for homeowners adding critical appliances that require their own dedicated circuits.
Project Overview
To support long-term performance and reduce nuisance trips, we provided each appliance—sump pump and dehumidifier—with its own 20-amp branch circuit. The installation included a listed 20-amp tandem breaker in the main panel and professionally routed wiring to new outlets positioned for safe, convenient access in the crawl space.
- Location: Mint Hill, NC
- Completion date: July 8, 2026
- Technicians: Matt Silber and Will Cruz
- Branch: Matthews (Charlotte)
What We Installed
- Electrical permit filing: We obtained and filed the required electrical permit with the county for code-compliant work.
- Two dedicated 20-amp circuits: One circuit for the sump pump and one for the dehumidifier, preventing overloads and improving reliability.
- NM-B 12/2 wiring: Clean, secure runs using approximately 65 feet per circuit to reach the new outlet locations.

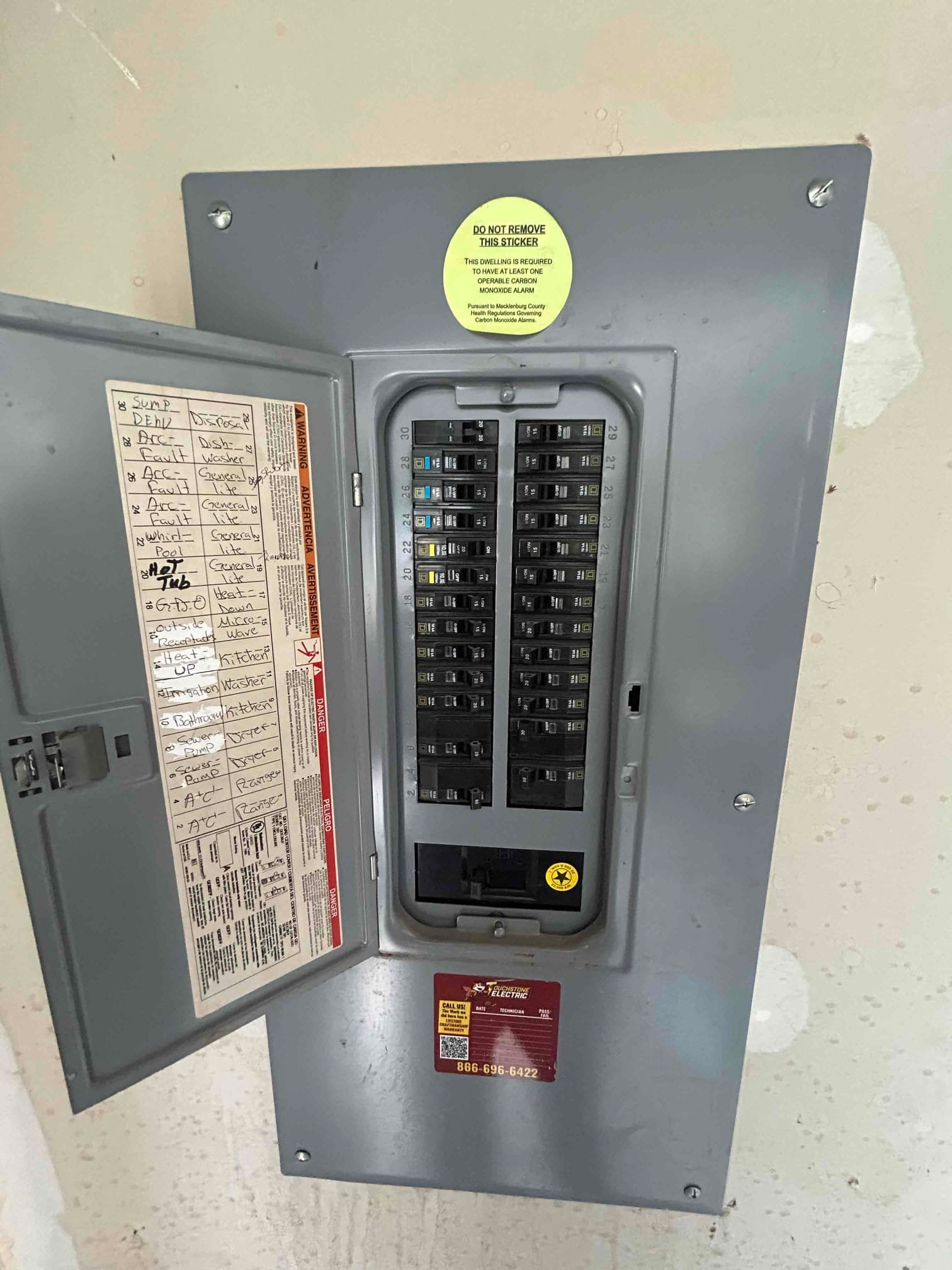

- 20-amp tandem breaker: A panel-approved tandem breaker to supply both new circuits while maintaining proper protection.
- 3/4" PVC conduit (select sections): Added for mechanical protection where surface routing required it, complete with fittings and supports.
- Two standard receptacles with covers: New outlets installed, tested, and labeled for each appliance.
All components were installed to manufacturer specifications and local electrical code requirements, with circuits clearly identified at the panel for easy future service.
Why Dedicated 20-Amp Circuits Matter
Sump pumps and dehumidifiers can draw significant current, especially during heavy rainfall and high-humidity conditions. Putting each appliance on its own 20-amp line helps:
- Reduce tripping caused by other loads sharing the same circuit
- Deliver consistent power for critical moisture management
- Align with typical manufacturer recommendations for dedicated power
- Enhance safety and protect the home’s foundation and air quality
With separate circuits, Julia’s equipment can operate as intended without competing for power, adding peace of mind during storms and humid months in Mint Hill.
Permits, Code, and Clean Work
We handled the electrical permitting for this project and performed all work to current code. Every jurisdiction can have additional requirements for non-electrical permits; our electrical permit covered the electrical scope. If a project calls for other permits (historic, zoning, environmental, etc.), we advise homeowners on next steps and can assist as needed.
As part of our standard process, we verified breaker sizing, wire type, and device ratings, secured all wiring, and completed final testing to confirm proper operation and polarity at each receptacle.
Local Outlet Installation & Repair in Mint Hill
From crawl space outlets to appliance and garage circuits, Touchstone Electric provides dependable Outlets & Switches solutions across Mint Hill. Our Matthews-based Charlotte team is familiar with local code requirements and delivers neat, organized installations designed for safety and longevity.
Homeowner Julia Caporale praised our team with a positive review. Read it here: Google review.
Planning a sump pump, dehumidifier, or appliance upgrade? Contact Touchstone Electric to schedule dedicated circuit installation in Mint Hill.
