Manual Transfer Switch: Generator Interlock Install in Raleigh

Touchstone Electric recently completed a manual transfer switch and generator interlock installation for homeowner Jennifer Baum in Raleigh, NC. Performed by our Raleigh branch technician, Brad Williams, this project created a safe, simple way to power essential circuits with a portable generator through a dedicated 50A inlet. Completed on February 9, 2026, the work ensures reliable backup power during neighborhood outages while protecting the home’s electrical system.

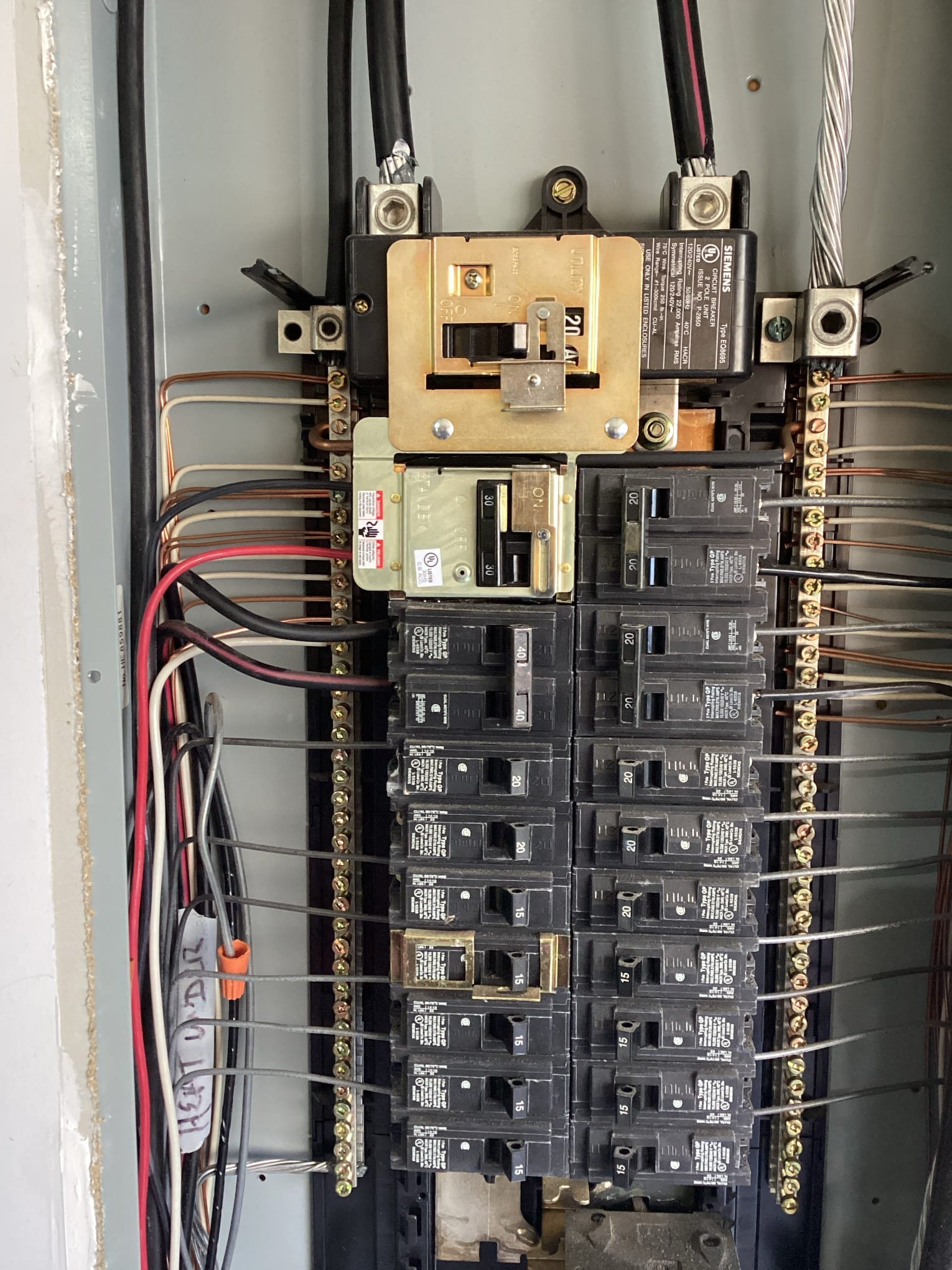

To prepare the electrical panel for generator use, we reconfigured the interior layout so the new generator breaker and the customer’s selected backed-up circuits are positioned at the top-left of the panel. We installed an interlock kit on the face of the panel that ties the main breaker and generator breaker together, preventing unsafe backfeed and ensuring a clear, safe operating sequence during an outage.

From the panel, our team ran up to 15 feet of feeder to a dedicated, exterior-mounted generator inlet near the garage. We also provided a 15-foot whip that can be stored with the generator, making it quick and convenient to connect when the power goes out. To make operation easy, we applied clear sticker code labeling on the panel and breakers so the homeowner knows exactly which switches to operate and in what order.

An interlock functions as a manual transfer mechanism that ensures only one power source feeds the home’s panel at a time. When the generator breaker is engaged, the interlock physically prevents the main breaker from being on, and vice versa. For Raleigh homeowners, this approach offers a dependable and straightforward way to run key circuits during storms without risking backfeed to the utility grid or damage to equipment.

• Panel reconfiguration to position the generator breaker and backed-up circuits at the top-left
• Interlock kit installed on the panel face to coordinate the main and generator breakers
• Clear sticker code labeling on the panel and applicable breakers for easy operation
• Up to 15 feet of feeder from the panel to the new exterior generator inlet near the garage
• 50A generator breaker sized for the portable generator connection
• Exterior-mounted 50A inlet for safe, weather-appropriate generator hookup
• Included 15-foot whip for quick, reliable connection from the generator to the inlet
• Splicing of panel circuits as needed to complete the reconfiguration

Note: This scope did not include conduit (if needed) or a portable generator.

• Safe, manual transfer capability via a proven interlock kit
• Fast, no-guesswork operation thanks to labeled breakers and panel stickers
• Convenient exterior inlet and included whip for quick outage setup
• Targeted backup to the circuits that matter most during an outage

This project was completed by our Raleigh branch as part of our Whole-Home Generators services, with a focus on Manual Transfer Switch solutions. Touchstone Electric helps Raleigh homeowners prepare for outages with practical, code-conscious installs that prioritize safety and ease of use.

Following the installation, Jennifer praised our Raleigh team with a positive review, reflecting our commitment to clear communication, careful panel work, and clean finishing.

If you’re considering a manual transfer switch with a generator interlock and 50A inlet in Raleigh, Touchstone Electric can configure your panel, install the interlock, and set up the inlet and whip so your home is ready for the next outage. Reach out to our Raleigh team to discuss your circuits, connection location, and the right setup for your portable generator.
