Project overview

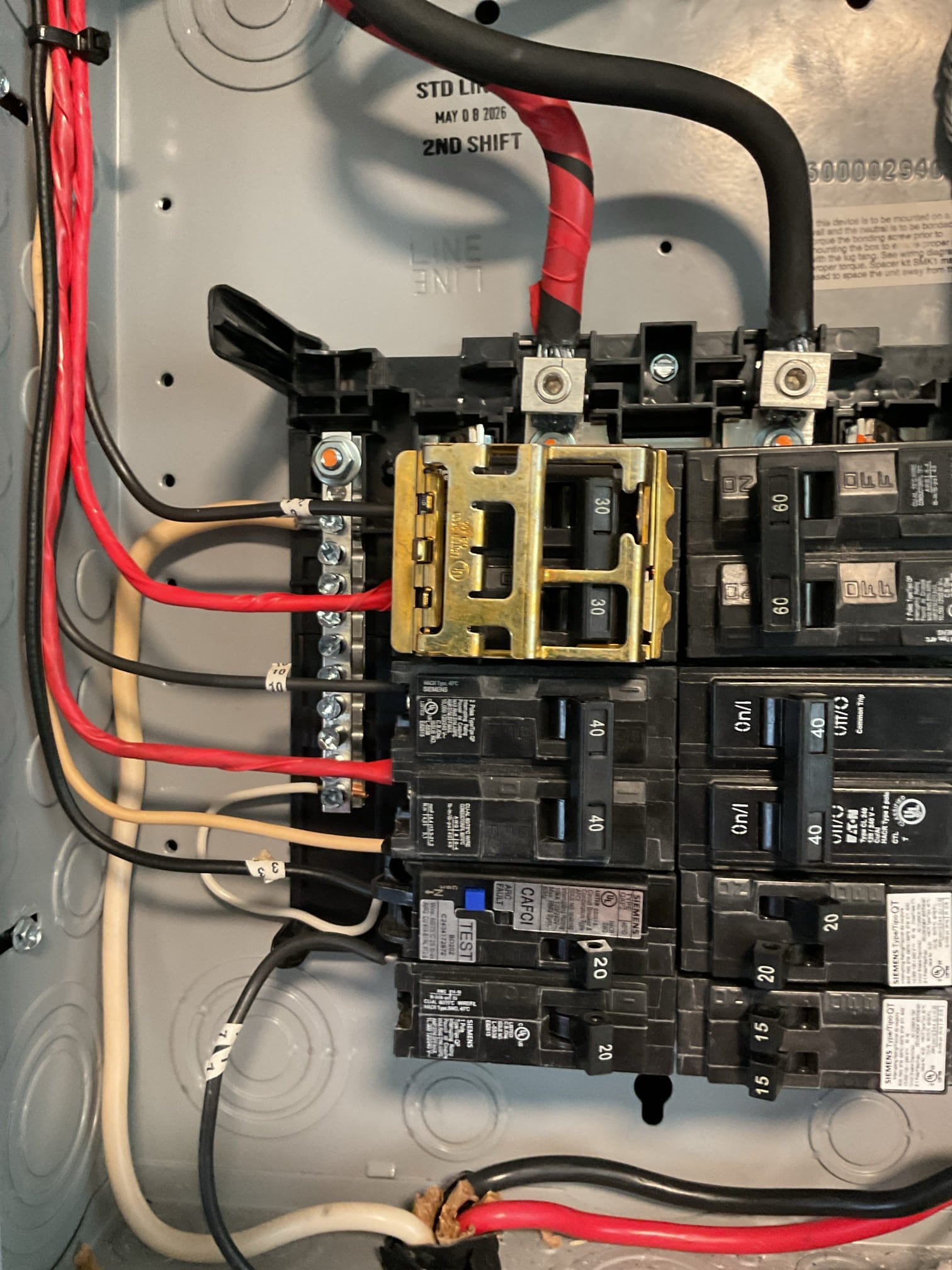

On July 7, 2026, Touchstone Electric’s Charlotte branch completed a comprehensive main electrical panel upgrade for Timber Ridge Apartments in Charlotte, NC. The scope included replacing the indoor service panel, installing new code-compliant breakers, coordinating permits and inspections, and adding a 200A indoor subpanel to support present and future electrical demand.
Technicians: Anthony Vazquez and Mark Alaev
Scope of work completed
- Main indoor panel upgrade: Supplied and installed a new indoor distribution panel, set up for safe, reliable operation and code compliance.
- New code-compliant breakers: Installed a balanced mix of standard and GFCI protection to match circuit needs and current code requirements.
- 200A indoor subpanel: Installed a 200-amp subpanel to expand capacity and improve circuit organization; permitting was coordinated as part of this work.
- Permits and inspections: Handled permitting and inspection scheduling to ensure the project met current standards in Charlotte.
Breakers installed for this upgrade
- 4 × 15A Standard breakers — for bathroom lighting (2020 code considerations) and standard branch circuits
- 3 × 20A Standard breakers — for small appliance circuits
- 1 × 50A Standard breaker — suitable for range, heater/furnace, small subpanel, or EV charger
- 1 × 60A Standard breaker — suitable for range, heater/furnace, small subpanel, or EV charger
- 1 × 25A Standard double-pole breaker — for a small condenser, well pump, or small mini-split
- 1 × 30A Standard double-pole breaker — for dryer, water heater, air condenser, spa, or EV charger
- 1 × 20A GFCI breaker — for receptacles in bathrooms, dining room, laundry, garage, exterior, crawl spaces, or basements
- 2 × Custom electrical labor tasks — to complete the installation and adjustments
- 1 × 200A Indoor subpanel — included permitting as part of the installation
Code compliance and what to expect
This project was completed to current electrical code standards. As Charlotte inspectors continue to implement 2020 NEC requirements, certain branch circuits may need AFCI protection. Adding AFCI protection can reveal preexisting wiring conditions (such as shared neutrals) that may cause immediate tripping. When that happens, additional diagnostic work may be required to locate and correct the issue before finalizing the upgrade.
Why property owners choose us for panel upgrades
- Panels & Service Upgrades specialists with a focus on safety and reliability
- Electrical panel upgrades performed to meet current NEC and local requirements
- Permit-ready, inspection-coordinated installations for a smooth project experience
- Local Charlotte team serving the greater Charlotte area from our Matthews location
- Experience supporting multifamily properties and future capacity needs
Customer feedback
Timber Ridge Apartments praised our team with a Google review. Read it here: View the customer review on Google.
Serving Charlotte, NC
Touchstone Electric proudly serves homeowners and property managers across Charlotte. Whether you need a main panel replacement, subpanel addition, or new breaker installation, our Charlotte branch is ready to help with code-compliant solutions tailored to your property.
Planning an electrical panel upgrade in Charlotte? Our team can assess your current system, recommend the right panel and breaker configuration, and coordinate permitting and inspections for a safe, efficient result.
