Reliable Main Breaker Replacement and Grounding in Oxford, NC

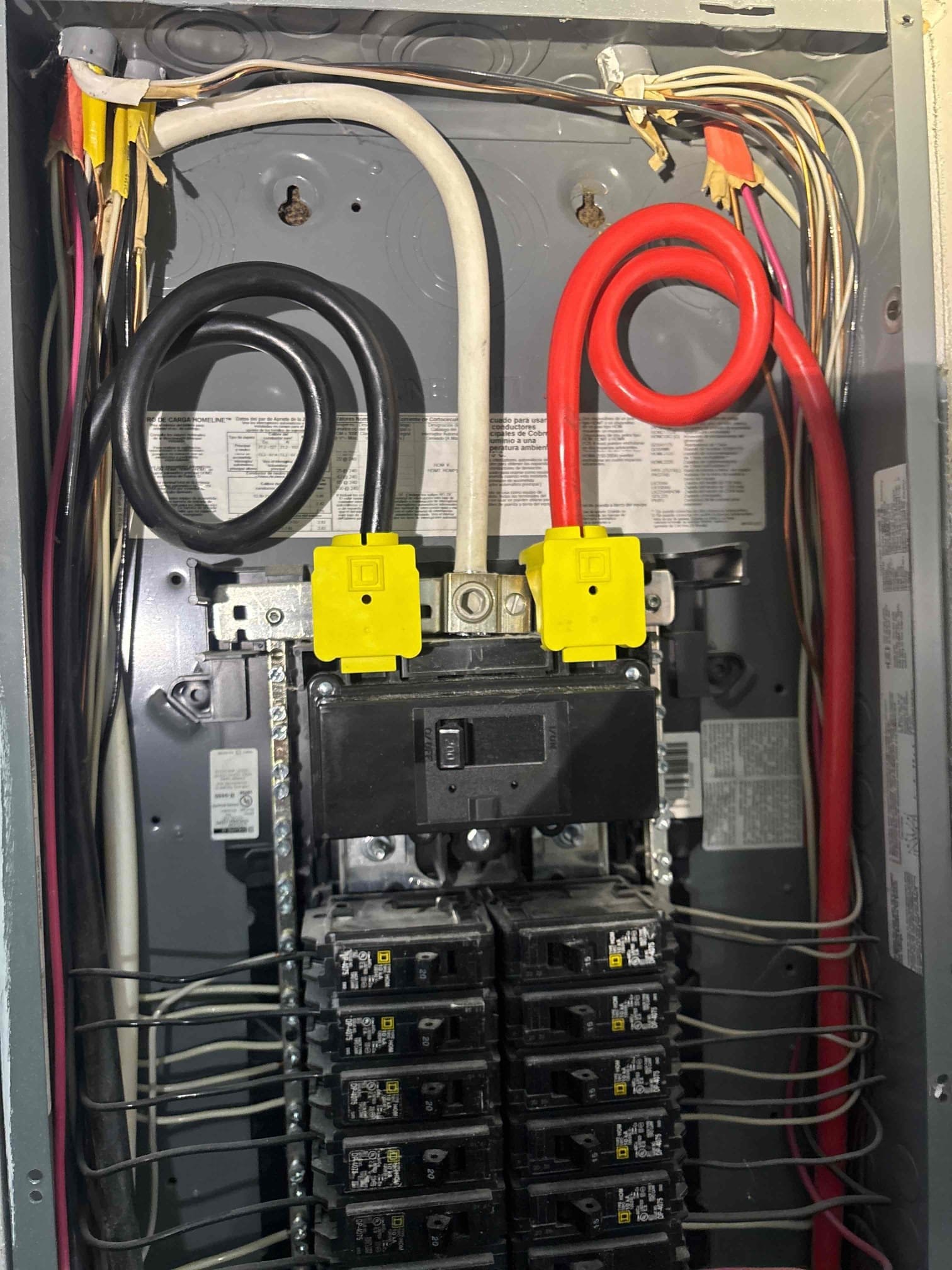

Touchstone Electric’s Raleigh branch completed a safety-focused upgrade for Ground Works - Raleigh in Oxford, NC. On March 13, 2026, technician Jared Mata installed a new main breaker, added ground rods, and bonded the building’s metal water piping to the electrical grounding system. This project enhances fault protection, reduces shock risk, and supports current electrical code requirements for a safer, more resilient service panel.
What We Upgraded
- Main breaker installation: We installed a two-pole main breaker that matches the electrical panel’s amperage capacity. The main breaker limits incoming current and provides a central shutoff for emergency and maintenance needs, protecting every circuit the panel feeds.
- Ground rods and grounding electrode conductor (GEC): New ground rods were driven to typical depth (about 8 feet), then bonded using listed clamps. We routed the grounding electrode conductor back to the main service panel and secured all terminations for a low-impedance path that helps safely carry fault current to ground. Our standard installation covers up to a 25-foot GEC run.
- Water pipe bonding: We bonded the metal water piping (hot and cold) to the grounding system using a code-compliant copper conductor and UL-listed bonding clamps. This helps prevent shock hazards if pipes ever become energized and supports National Electrical Code compliance (NEC 250.104). Materials for a standard installation include up to 50 feet of #6 AWG copper and two UL-listed pipe clamps within 50 feet of the main panel.
Why This Work Matters
- Stronger overcurrent protection: A properly sized main breaker shields downstream circuits and equipment from overloads and short circuits.
- Safer fault clearing: Ground rods and a continuous grounding electrode system give electricity a defined, low-resistance path, helping breakers trip when they should.
- Reduced shock risk: Bonding metal water pipes equalizes electrical potential, minimizing the chance of accidental shocks.
- Code alignment: Grounding and bonding upgrades support NEC requirements, including NEC 250.104 for metal water piping.
Project At a Glance
Location: Oxford, NC (served by our Raleigh branch)
Primary category: Panels & Service Upgrades
Secondary category: Circuit Breaker Repair & Replacement
Technician: Jared Mata
Date completed: March 13, 2026
Customer: Ground Works - Raleigh
Customer Feedback
Our customer praised us with a review on Google. Read it here: Google review from Ground Works - Raleigh.
Signs You May Need a Main Breaker or Grounding Upgrade
- Frequent breaker trips or a main breaker that feels warm to the touch
- Visible corrosion, loose lugs, or rust inside the panel
- Missing or deteriorated grounding/bonding connections near the panel or water pipes
- Service upgrades, renovations, or the addition of large appliances or equipment
- Flickering lights, buzzing at the panel, or unexplained voltage fluctuations
Your Oxford, NC Electrician for Panel Safety
From main breaker replacement to ground rod installation and water pipe bonding, Touchstone Electric helps Oxford, NC homeowners and businesses improve electrical safety and reliability. If you’re planning a service upgrade or suspect your grounding and bonding need attention, our Raleigh team is ready to help with clear recommendations and code-conscious workmanship.
Schedule service with Touchstone Electric to keep your panel safe, compliant, and ready for the future.
