Level 2 EV Charger Installation with Trenching in Swannanoa, NC

Touchstone Electric’s Asheville team completed a code-compliant Level 2 EV charger installation for a property in Swannanoa, NC. Led by technician Frank Fragale, this project involved underground routing to position power exactly where the customer needed it, along with full permit support and guidance on available Duke Energy rebates.

Customer: Duke Energy - Allumia
Completion date: April 27, 2026
Branch: Hendersonville (serving the greater Asheville area)

Project highlights

Level 2 EV Charging: Installed for a customer-supplied charger to enable faster, reliable at-home charging.
60A dedicated circuit: Pulled #6 THHN conductors to support a 60-amp circuit sized for robust Level 2 performance.
Conduit and protection: Installed approximately 30 ft of 1" PVC conduit to protect conductors and meet outdoor routing requirements.
Clean trenching: Performed about 30 ft of trenching at an estimated 18–24" depth for a neat, code-compliant underground run.

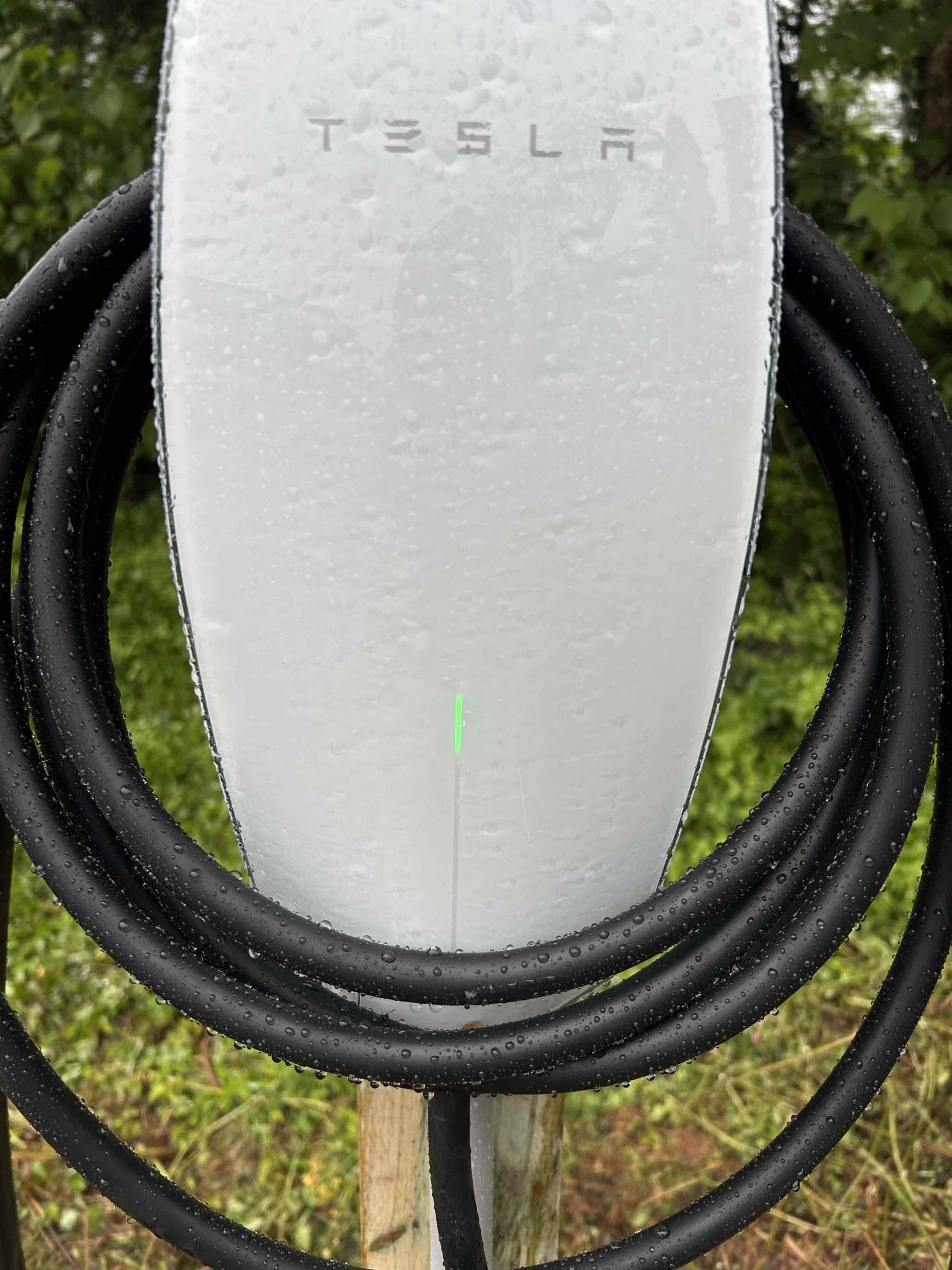

Outdoor mounting option: Set a wood post in concrete to provide a sturdy mounting location where a wall was not ideal.
Permitting handled: We coordinated local permitting and inspections for a smooth, compliant install.
Duke Energy rebate guidance: Assisted with the documentation needed to pursue eligible EV charger incentives.

Scope of work in Swannanoa

To keep the installation tidy and well protected, our electricians routed power from the electrical source to the charger location using underground conduit. Utility-locate needs were addressed prior to digging to help protect buried services, and the trench was restored after installation for a clean finish.

Assessed the electrical system to support a dedicated 240V Level 2 charging circuit.
Pulled #6 THHN conductors through 1" PVC to achieve the planned 60A capacity.
Completed approximately 30 ft of trenching to route the conduit to the charging location.
Set a wood post in concrete to provide a reliable, convenient charger/receptacle mounting point outdoors.
Mounted and hardwired (or receptacle-connected) the customer-supplied EV charging equipment as appropriate.
Coordinated inspections and provided documentation for rebate submission through Duke Energy.

Why a 60A Level 2 circuit?

A 60-amp Level 2 circuit offers faster charging compared to lower-amp options, providing more miles of range per hour and reducing overnight charge times. Using #6 THHN conductors ensures capacity for the higher load, while 1" PVC conduit offers durable, weather-resistant protection and room for maintenance or future needs. For outdoor placements, a dedicated post in concrete adds long-term stability and a professional look.

Permitting and Duke Energy rebate support

Our team handled local permitting and inspections so the homeowner didn’t have to. We also supported the Duke Energy EV charger rebate process by supplying installation details and documentation. Incentives can help offset project costs, and our familiarity with local programs streamlines the experience from start to finish.

Proudly serving Swannanoa and the greater Asheville area

From our Hendersonville branch, Touchstone Electric provides EV charging services throughout Swannanoa and nearby Asheville communities. We focus on safe, neat installations that meet code, protect your property, and deliver dependable charging day after day.

Local, licensed electricians
Code-compliant trenching and conduit work
Clear communication and on-time scheduling
Permit and rebate assistance

Ready for a Level 2 charger in Swannanoa?

If you’re planning an EV charger at your home in Swannanoa or the greater Asheville area, our team can help you choose the right circuit size, route power cleanly with trenching where needed, and navigate permits and available rebates. Connect with Touchstone Electric to get started on a safe, reliable, and professional EV charging solution.
