Level 2 EV Charger Installation in Durham, NC
Our Raleigh branch completed a professional Level 2 EV charger installation for James Ferguson in Durham, NC on June 23, 2026. Lead technician Gustavo Peralta hardwired a 60-amp EV charging circuit to support fast, reliable home charging while keeping the installation neat, efficient, and code-compliant.
This project included pulling an electrical permit, routing new conduit, installing a dedicated breaker, and adding whole-home surge protection for added safety and equipment longevity.
Scope of Work
- Installed a hardwired Level 2 EV charger (customer-supplied unit) on a dedicated circuit.
- Added a 60A breaker in the service panel sized for a typical 48A continuous Level 2 charging load when paired with a compatible EVSE.
- Routed approximately 25 ft of 3/4-inch EMT conduit with appropriate fittings and supports for a clean, durable pathway.
- Pulled THHN #6 copper conductors (about 30 ft) for the 60A circuit, plus approximately 5 ft of #6 SEU where needed to complete the run.

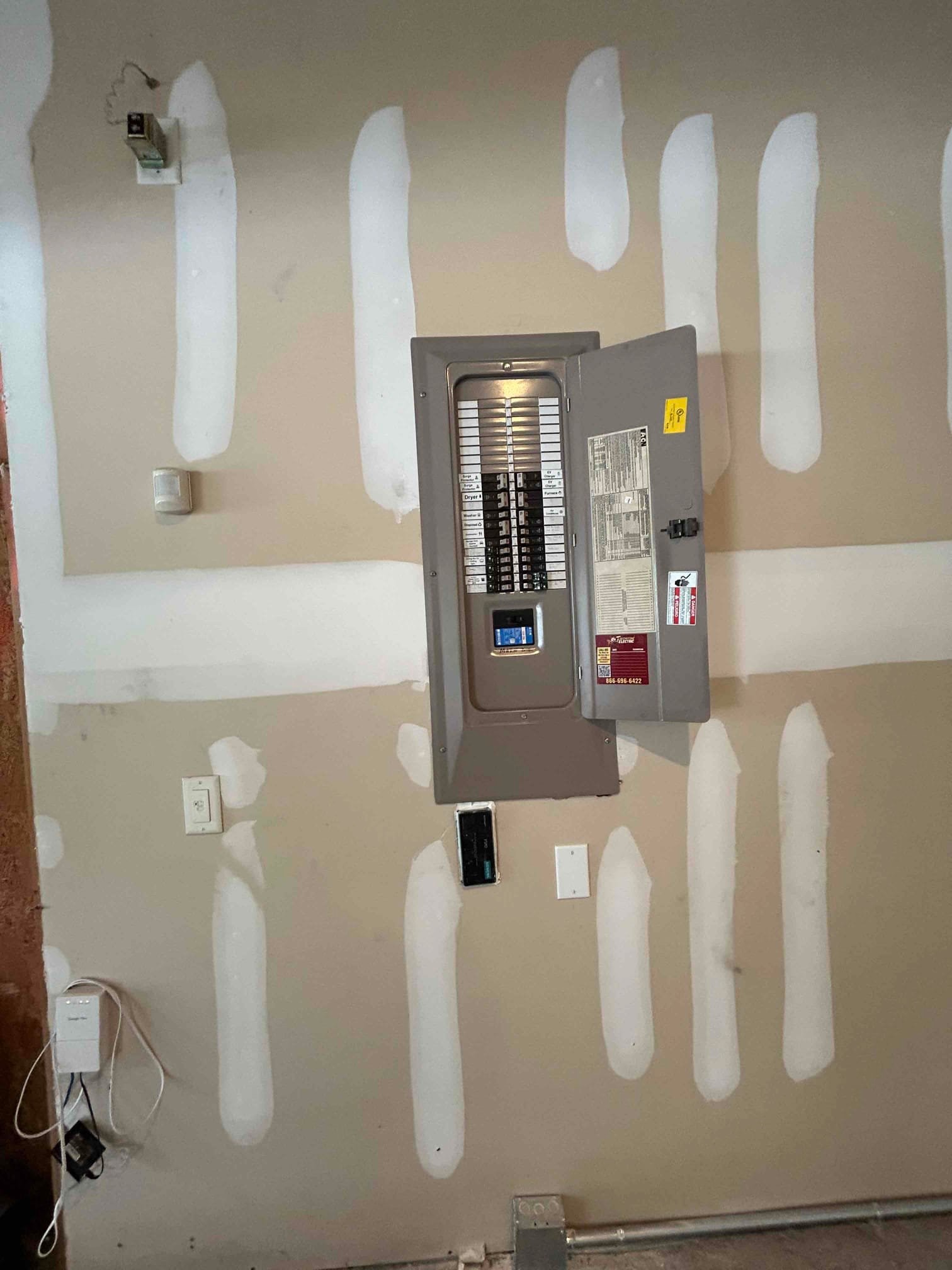

- Installed a whole-home surge protector at the main electrical panel to help shield sensitive electronics and appliances from voltage spikes.
- Filed the electrical permit with the local authority having jurisdiction in Durham, NC.
Clean, Code-Compliant Installation
Every EV charging project we deliver follows current electrical code and manufacturer specifications. For James’s home in Durham, our team:
- Ran EMT conduit along a tidy, accessible path with secure supports and fittings.
- Sized conductors appropriately for the 60A circuit and verified terminations and torque values.
- Labeled the new breaker and charging circuit for easy identification at the panel.
The result is a safe, efficient installation designed to provide years of dependable charging performance.
Permitting and Inspections
Touchstone Electric handled the electrical permit for this Level 2 installation in Durham. Requirements can vary by jurisdiction, and while we include the electrical permit, other non-electrical permits (such as zoning or historic preservation) are not included unless specifically noted. Our team is happy to advise homeowners if additional approvals are required for their property.
Whole-Home Surge Protection
To complement the new charging circuit, we installed a panel-mounted surge protective device. This helps divert excess voltage to ground during transient events, which can:
- Protect connected appliances, electronics, and hardwired equipment.
- Reduce wear on internal components caused by routine minor surges.
- Add an extra layer of defense alongside point-of-use protection.
Why Durham Homeowners Choose Touchstone Electric
- Experienced EV installers with attention to safety, layout, and aesthetics.
- Local service from our Raleigh branch, proudly serving Durham, NC.
- Permitting handled by our team and clear communication throughout the project.
- Neat EMT conduit runs and properly sized copper conductors for dependable performance.
Customer Feedback
James praised our Raleigh team for the professional installation experience. Read their public feedback here:
Thinking About a Level 2 Charger in Durham?
If you’re ready to add fast, reliable home charging, our licensed electricians can help with load assessment, circuit sizing, routing, permitting, and final hookup. Contact Touchstone Electric to schedule an on-site visit from our Raleigh team and get a code-compliant Level 2 EV charger installation in Durham, NC.
