Project overview: Level 2 EV charger setup in Davidson, NC
Touchstone Electric’s Charlotte team, operating from our Matthews location, completed a professional Level 2 EV charger installation for Michael Grande in Davidson, NC. Led by technician Jose Rodriguez, this garage install was finished on December 10, 2025 and delivers fast, reliable 240‑volt charging on a dedicated circuit tailored to the customer’s EV and charging equipment.
Because this was a customer‑supplied charger, our crew focused on safe power delivery, panel configuration, and code‑compliant wiring so the equipment can perform as designed without nuisance trips or voltage drop. From permitting to final connections, the work was handled to meet local code and manufacturer specifications.
What we handled on this Davidson EV charging project
- Electrical permit pulled and filed: We obtained the required electrical permit with the county to ensure the installation was inspected and approved.
- Dedicated 240‑volt circuit for Level 2 charging: A new 50‑amp breaker was added in the service panel to support the EV charger’s load and deliver reliable performance.
- Proper feeder and pathway: We ran #6 SEU (3‑wire) in PVC to provide a robust feeder to the garage charging location, minimizing voltage drop and protecting conductors.

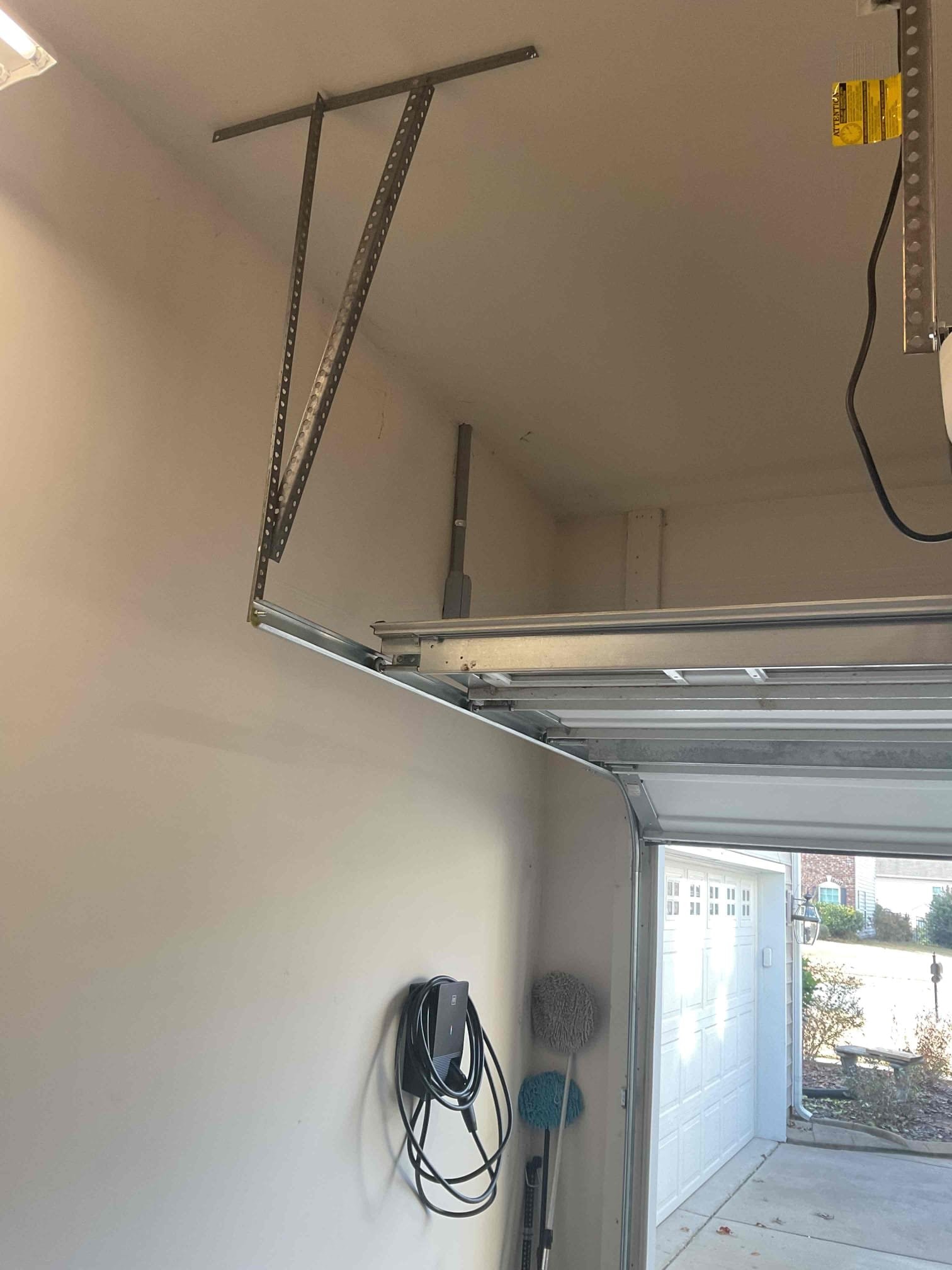

- Neat garage setup: The wiring route and equipment placement were planned for a clean, accessible installation that suits daily charging in the garage.
- Panel space optimization: As needed and where allowed by the panel listing, tandem breakers (15‑amp and 20‑amp) were used to manage space and keep circuits organized.
Note: Our permit scope covers the electrical permit for this work. If a future project requires non‑electrical permits (such as zoning or historic), those would be separate.
Materials and components installed
- 50‑amp standard breaker dedicated to the EV charging circuit.
- #6 SEU 3‑wire conductors to support the charging load and future readiness.
- PVC conduit and fittings for a clean, protected pathway to the garage location.
- 15‑amp and 20‑amp tandem breakers for panel management where appropriate.
- Charger connection made per the manufacturer’s instructions (receptacle or hardwired as specified by the equipment).
Every connection was torqued to specification, conductors were sized appropriately for the circuit rating, and labeling was updated for clarity and future service.
Code‑compliant and inspection‑ready
Our Charlotte team follows current code requirements and manufacturer guidelines for every Level 2 EV charger installation in Davidson. That means the right breaker sizing, properly rated conductors, correct conduit, and clear panel labeling—so your charger is safe, efficient, and passes inspection without surprises.
Whether the EVSE is customer‑provided or sourced through us, we ensure the circuit is matched to the equipment specifications, and we coordinate permitting and inspection to keep your project on schedule.
Why Davidson homeowners choose Touchstone Electric
- Local expertise: Charlotte/Matthews team serving Davidson and the surrounding Lake Norman communities.
- Permit and inspection handled: We take care of the electrical permit and coordinate inspection.
- Clean, garage‑friendly layouts: Wiring routes planned for access, protection, and a tidy finish.
- Future‑ready installs: Conductor sizing and breaker selection aligned with common Level 2 charger demands.
Customer feedback
We’re proud that Michael Grande praised our work with a review. See the feedback on Google: View the review on Google.
Ready for a Level 2 EV charger in Davidson, NC?
If you’re planning a garage charger or upgrading from Level 1, our Matthews‑based Charlotte team can design and install a safe, dedicated circuit for fast charging at home. Contact Touchstone Electric to schedule your Level 2 EV charger installation in Davidson and get inspection‑ready results you can trust.
