Level 2 EV Charger and RV-Style Outlet Installed in Waxhaw, NC
Our Charlotte team based out of Matthews completed a Level 2 EV charging circuit and RV-style outlet installation for homeowner Craig Plessinger in Waxhaw. Completed on July 29, 2026, this project provides safe, convenient driveway charging with a durable outdoor setup designed for everyday use.
With the main panel located at the back of the home, our licensed technicians—Michael Bentkowski, Matt Silber, Anthony Vazquez, and Mark Alaev—ran a new 50-amp GFCI-protected circuit through the attic, transitioned to underground Schedule 80 PVC, and terminated at a wood post with a weatherproof receptacle box near the driveway.
What We Installed
- 50A GFCI breaker in the home’s main panel to protect the outdoor EV/RV receptacle circuit.
- Attic and underground run from the panel on the back of the home to the driveway area.
- 1” Schedule 80 PVC conduit underground for added durability and protection (approx. 45 ft).
- Trenching at 18–24 inches to route the conduit safely to the charging location (approx. 35 ft).
- Wood post set in concrete to provide a stable mounting point at the driveway.

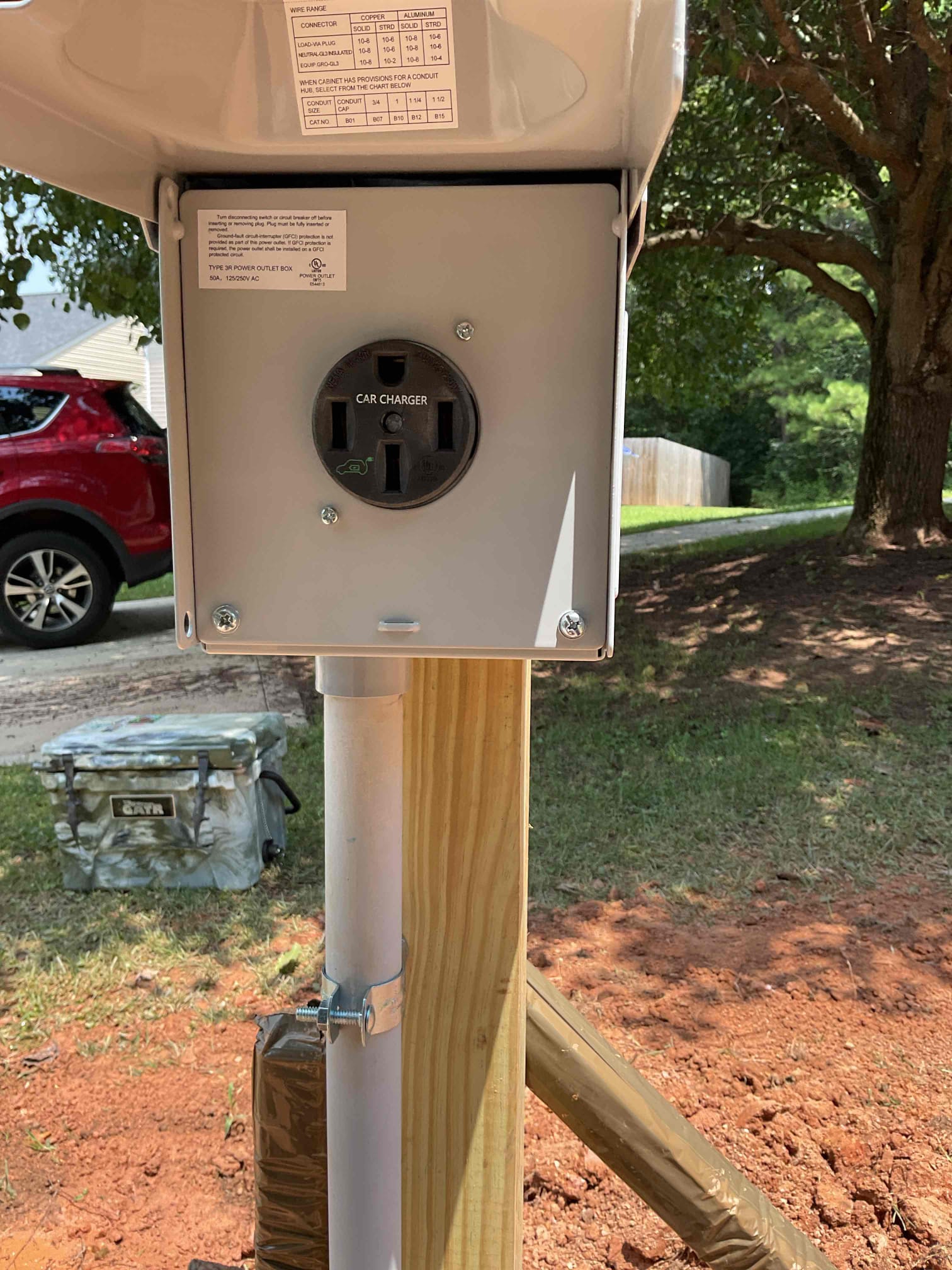

- Weatherproof receptacle box configured as an RV-style 50A outlet suitable for Level 2 EV charging.
- New wiring including THHN #6 conductors (approx. 50 ft) and 6/3 NM-B (approx. 60 ft) as appropriate for the route.
- Visible conduit and a junction box on the left side of the home per the planned pathway.
- Permitting and inspection, including processing of the required Duke permit and trench inspection prior to final backfill.
This installation supports a customer-supplied Level 2 EV charging setup and provides the flexibility of a robust RV-style receptacle outdoors.
How the 3‑Day Process Worked
- Day 1 – Trench and Set Post: We laid out the route, completed the trench to depth, and installed the wood post in concrete at the driveway.
- Day 2 – Conduit, Wire, and Inspection Call: Our crew ran the Schedule 80 PVC and pulled conductors, made attic and exterior transitions, and called for the trench inspection.
- Day 3 – Backfill After Pass: Once the trench inspection passed, we backfilled and neatened the work area for a clean finish.
Note: Trenching can temporarily disturb turf and landscaping; after inspection, we returned soil to grade as planned.
Built for Safety, Convenience, and Longevity
- GFCI protection at the breaker enhances safety for outdoor charging.
- Schedule 80 PVC provides extra impact resistance for underground portions exposed to driveway traffic areas.
- Weatherproof enclosure keeps the receptacle protected from the elements.
- Clean pathway using attic and exterior transitions to reach the driveway while minimizing disruption to finished spaces.
The result is a reliable Level 2 charging location right where it’s needed—near the driveway—without clutter on the home’s façade.
Reviewed by the Homeowner
Craig Plessinger praised our Charlotte team for the work on this Waxhaw project. Read the review here: Google review link.
EV Charging Services in Waxhaw
Touchstone Electric provides code-compliant EV charging solutions for Waxhaw homeowners—from Level 2 EV charger circuits and RV-style outlets to panel upgrades and outdoor-ready installations. If you’re in Waxhaw and want driveway charging like this project, our Charlotte–Matthews branch is ready to help.
- Level 2 EV charger installation and dedicated 240V circuits
- Outdoor posts, weatherproof boxes, and conduit solutions
- GFCI and surge protection options
- Permitting and inspections handled start to finish
Planning a similar setup near your driveway or garage? Contact Touchstone Electric to schedule an on-site assessment in Waxhaw and get a tailored plan for safe, convenient home charging.
