Call 855-502-2244Level 2 EV Charger and NEMA 14-50 Outlet Installation in Anderson, SC
Our Greenville team, based out of the Taylors branch, completed a permitted Level 2 charging upgrade for homeowner Russell Lyon in Anderson, SC on September 18, 2025. Lead technician Tyler Harris installed an EV‑rated NEMA 14‑50 receptacle directly beneath the home’s existing GE electrical panel and added a matching 50‑amp breaker with dedicated #6 wiring for safe, reliable charging.
After the work was completed, the customer shared positive feedback about the experience. We appreciate the trust and are proud to deliver clean, code‑compliant EV charging solutions for Anderson homeowners.
What We Installed
- EV‑rated NEMA 14‑50 receptacle installed below the GE load center for convenient plug‑in access to a Level 2 EV charger.
- New 2‑pole 50A breaker selected to match the GE panel’s specifications.
- Dedicated #6 copper wiring using a combination of 6/3 NM‑B and #6 THHN conductors as suitable for the run and installation method.
- Electrical permit filed with the county to ensure a fully permitted, inspection‑ready installation.
- Connection and testing for the customer‑supplied Level 2 EV charger.
This configuration supports a typical Level 2 charging setup while keeping the receptacle close to the service equipment for a neat, efficient installation.
Why a 50A NEMA 14‑50 for Level 2 EV Charging
A NEMA 14‑50 outlet on a 50‑amp circuit is a common choice for residential Level 2 charging because many EV chargers draw up to 40 amps continuously when set to their higher output. A 50‑amp circuit provides the overhead needed for continuous loads while maintaining safe operating margins.
Charging times and speeds always depend on your vehicle and the EV charger you use, but a dedicated 240‑volt, 50‑amp circuit typically delivers significantly faster charging than a standard 120‑volt outlet—ideal for daily commuting or topping up overnight.
Code‑Compliant Workmanship Under a GE Panel

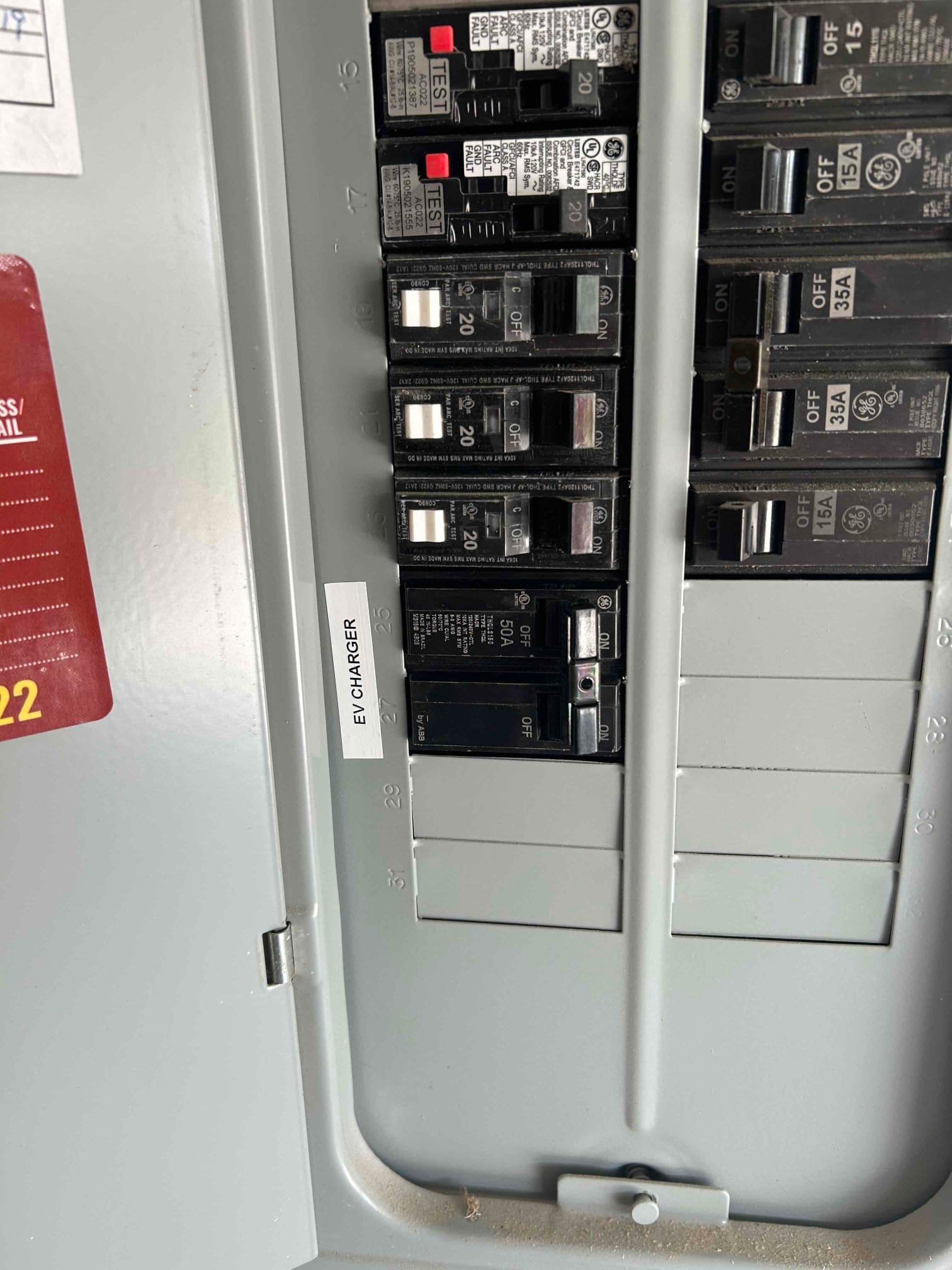

Integrating with the home’s GE panel, our technician installed a compatible 2‑pole breaker and routed dedicated #6 copper conductors on a clean, direct path to the new receptacle. The conductors were secured, terminations torqued to manufacturer specifications, and the new circuit labeled for clarity.
Locating the EV‑rated receptacle beneath the panel keeps conductor length and voltage drop low, supports tidy cable management, and helps reduce physical wear on charger cords. The result is a reliable, straightforward setup that’s easy for the homeowner to use every day.
Permitting and Local Expertise in Anderson
Touchstone Electric filed the county electrical permit for this project to ensure the installation aligns with current codes and is inspection‑ready. If a jurisdiction ever requires additional non‑electrical permits, our team can advise homeowners on next steps so the project proceeds smoothly.
With the Greenville business unit serving Anderson from our Taylors branch, we bring local knowledge, clear communication, and reliable timelines to every job—especially important when upgrading service equipment and adding dedicated EV charging circuits.
Benefits of a Dedicated Level 2 Circuit
- Faster daily charging than standard 120‑volt outlets.
- Dedicated capacity helps prevent nuisance tripping and shared‑circuit issues.
- Cleaner cable management with a receptacle positioned for easy plug‑in access.
- Future‑friendly for many current and next‑generation plug‑in vehicles.
Need a Level 2 EV Charger in Anderson?
Whether you’re adding your first EV or optimizing how you charge at home, Touchstone Electric delivers turnkey, permitted installations across Anderson, SC. Our Greenville team handles everything from the breaker and wiring to testing your charger so you can plug in with confidence.
Ready to upgrade? Reach out to schedule a visit with our Taylors‑based crew and get a clean, compliant Level 2 charging solution tailored to your home.
