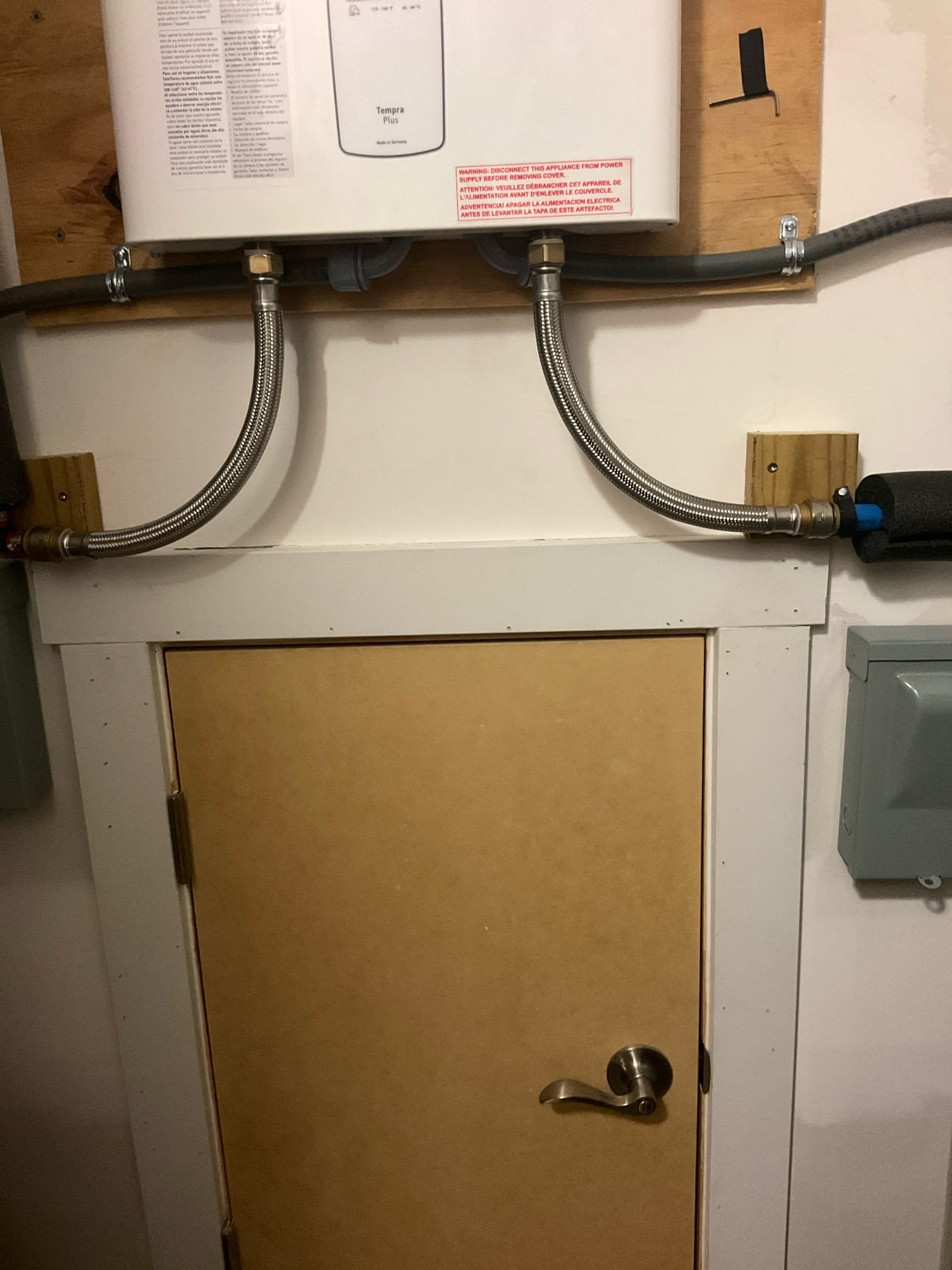

Hot Water Tank Wiring, 50A Breakers & 60A Disconnects in Matthews, NC
On May 20, 2024, our Charlotte branch completed a code-compliant installation for a Matthews home. Led by technician Briar Davis, the project included wiring for two hot water tanks, adding (2) 60A indoor disconnects in the mechanical room, installing (2) 50A breakers, and securing the required electrical permit.
We’re grateful that Marc Miles praised the experience with a positive review. Read the customer review on Google.
Scope of Work
- Pulled an electrical permit and coordinated the installation to meet local AHJ requirements.
- Ran approximately 100 ft of 6/2 NM-B Romex to create two dedicated 50A circuits for the hot water tanks.
- Set (2) 60A indoor equipment disconnects in the mechanical room to provide safe, code-required isolation for maintenance.
- Installed (2) 50A standard breakers in the service panel to properly protect the new circuits.
- Completed labeling, terminations, torqueing to spec, and functional testing for safe operation.
The result is a neat, professional installation that delivers reliable power to both water heaters and is ready for inspection.
Why This Setup Is Safe and Code-Ready
High-demand appliances like water heaters draw substantial current and must be served by correctly sized conductors, overcurrent protection, and an accessible means of disconnect. This installation was designed with safety, maintenance, and inspection readiness in mind.
- Proper wire sizing: 6/2 NM-B supports 50A circuits commonly required by larger appliances.
- Dedicated circuits: Each tank receives its own breaker and disconnect, reducing nuisance trips and improving serviceability.
- Maintenance disconnects: The 60A disconnects provide a clear, on-site isolation point for technicians—an important safety and code consideration.
- Permitted installation: Work performed under permit helps ensure the installation aligns with current electrical standards.
Materials and Components Used
- 100 ft of 6/2 NM-B Romex for two 50A appliance circuits
- (2) 60A indoor equipment disconnects for the hot water tanks
- (2) 50A standard breakers installed in the main panel
Every component was selected to match the appliance load requirements and manufacturer recommendations for a durable, compliant installation.
Panels & Service Upgrades and Service Disconnects in Matthews
Touchstone Electric provides complete panel work, breaker upgrades, and appliance circuits throughout Matthews, NC. From water heaters to EV chargers and small subpanels, our technicians ensure that each circuit is sized, protected, and labeled according to best practices and current code.
Signs You May Need an Upgrade
- Installing or replacing a high-demand water heater
- Frequent breaker trips when the water heater runs
- No visible disconnect near the appliance
- Warm or buzzing breakers, or unlabeled panel spaces
- Older wiring that may be undersized for the load
If any of these apply, it’s a good time to have a licensed electrician evaluate your panel and appliance circuits.
Your Local Matthews Electricians
As a local contractor serving Matthews from our Charlotte branch, Touchstone Electric delivers safe, organized installations that stand up to daily use and future maintenance. Whether you need a dedicated water heater circuit, new disconnects, or a broader panel upgrade, our team is ready to help.
Need expert help with hot water tank wiring, breakers, or disconnects in Matthews, NC? Reach out to schedule an on-site assessment with our team.
