Project overview in Terrell, NC

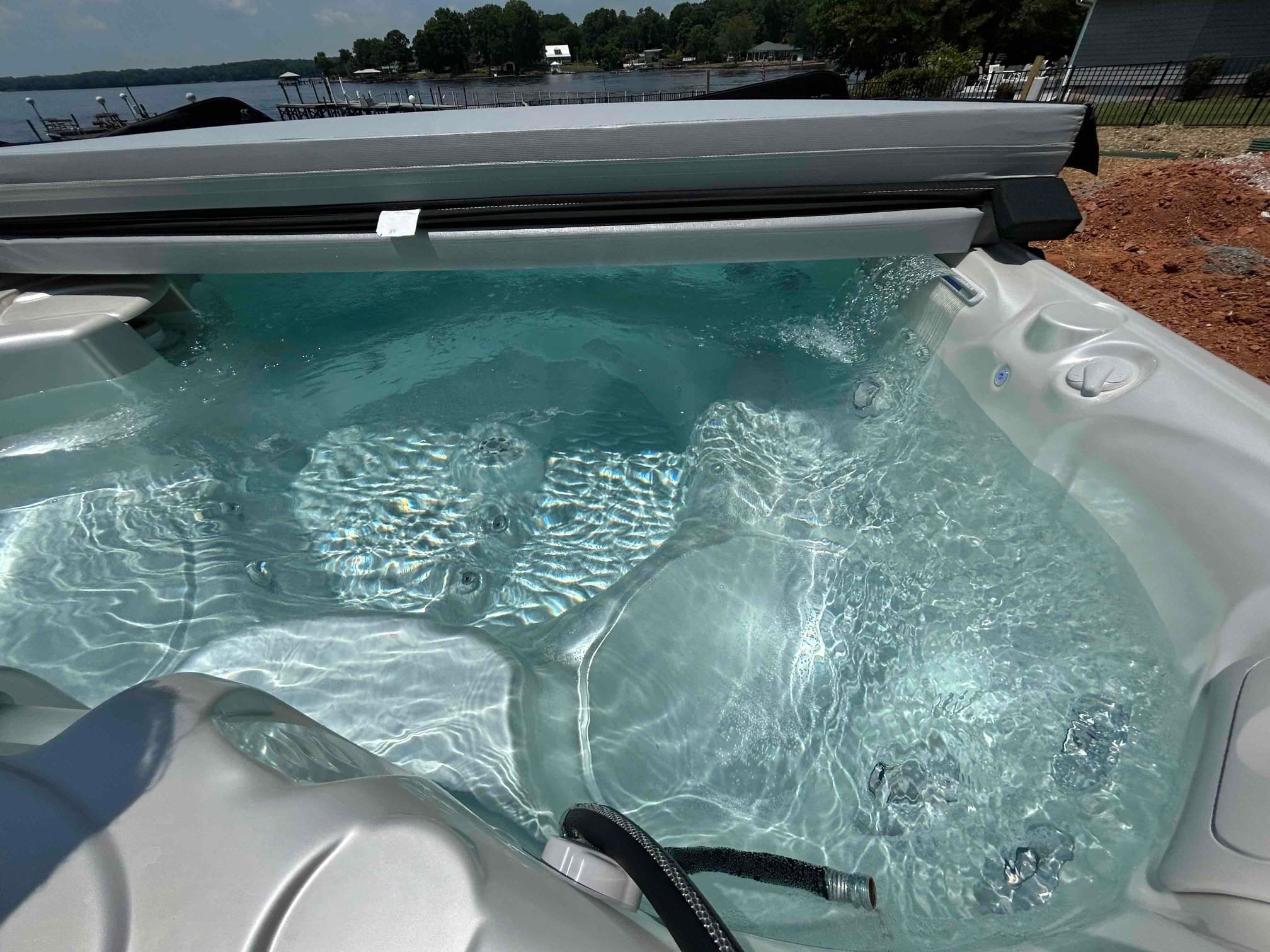

Touchstone Electric completed a code-compliant hot tub electrical installation for homeowners Tony & Anthony Pariti in Terrell, NC. On July 14, 2024, our Charlotte team operating from the Matthews branch installed a dedicated 240V, 50-amp spa circuit with proper grounding, an emergency disconnect in line-of-sight, and a compliant convenience receptacle location. We handled permitting with the local authority and coordinated inspections to ensure the installation meets current electrical codes.
What we installed
- Dedicated 240V 50A circuit: Purpose-built supply for the hot tub to support start-up and running loads without burdening other home circuits.
- Emergency disconnect: Mounted more than 5 feet from the unit but within clear line-of-sight for fast, safe shutoff during maintenance or emergencies.
- Equipment grounding: Bonded from the manufacturer’s grounding lug using an insulated grounding conductor to reduce shock risk and meet code.
- Code-compliant receptacle placement: Installed between 6–20 feet from the unit to keep cords away from splash zones while remaining convenient for accessories and service tools.
- Permitting and inspections: We filed the electrical trade permit and scheduled all relevant inspections for a smooth, hassle-free closeout.
Materials and workmanship details
To ensure reliable performance, we outfitted the system with a new 50-amp standard breaker and ran appropriately sized conductors for the hot tub feeder and associated circuits. The team utilized:
- 1x 50A standard breaker for the service panel.
- THHN conductors: approximately 70 ft of #6, 45 ft of #10, and 45 ft of #12 for dedicated runs and terminations as required by the installation layout.
- Skilled crew support: Four electrician wiremen provided the additional labor needed to complete the project efficiently and safely.
- Site restoration: A custom task to mix and pour concrete restored the sections needed inside the trench after electrical work was completed.
The base scope for hot tub power does not include trenching or conduit; any wiring needs and surface restoration are addressed through separate line items, ensuring the final installation is both safe and neatly finished.
Why this setup matters
- Safety first: A dedicated circuit, proper grounding, and a visible emergency disconnect help protect people and equipment.
- Performance and longevity: Right-sized wiring and breakers reduce nuisance trips and voltage drop, supporting consistent spa performance.
- Code compliance: The placement of the receptacle and disconnect follows spacing rules designed to limit shock hazards near water.
Your local hot tub electrical specialists
This project was completed by technician Christian Cedillos and our Charlotte team based out of the Matthews branch. We regularly serve homeowners in Terrell and across the greater Charlotte area with spa power, pool and hot tub electrical upgrades, and other specialty services. If you’re adding a new hot tub or modernizing an existing setup, we can handle permitting, installation, and inspection coordination from start to finish.
Customer feedback
We’re grateful that Tony & Anthony Pariti praised our work with a Google review. You can view their feedback here: Read the review on Google.
Considering a hot tub in Terrell, NC?
Touchstone Electric delivers safe, code-aligned installations tailored to your spa’s specifications. From dedicated 240V circuits and disconnects to proper grounding and inspection support, we make hot tub power straightforward and dependable. Contact our team to discuss your project timeline and we’ll help you plan a smooth installation backed by professional workmanship.
