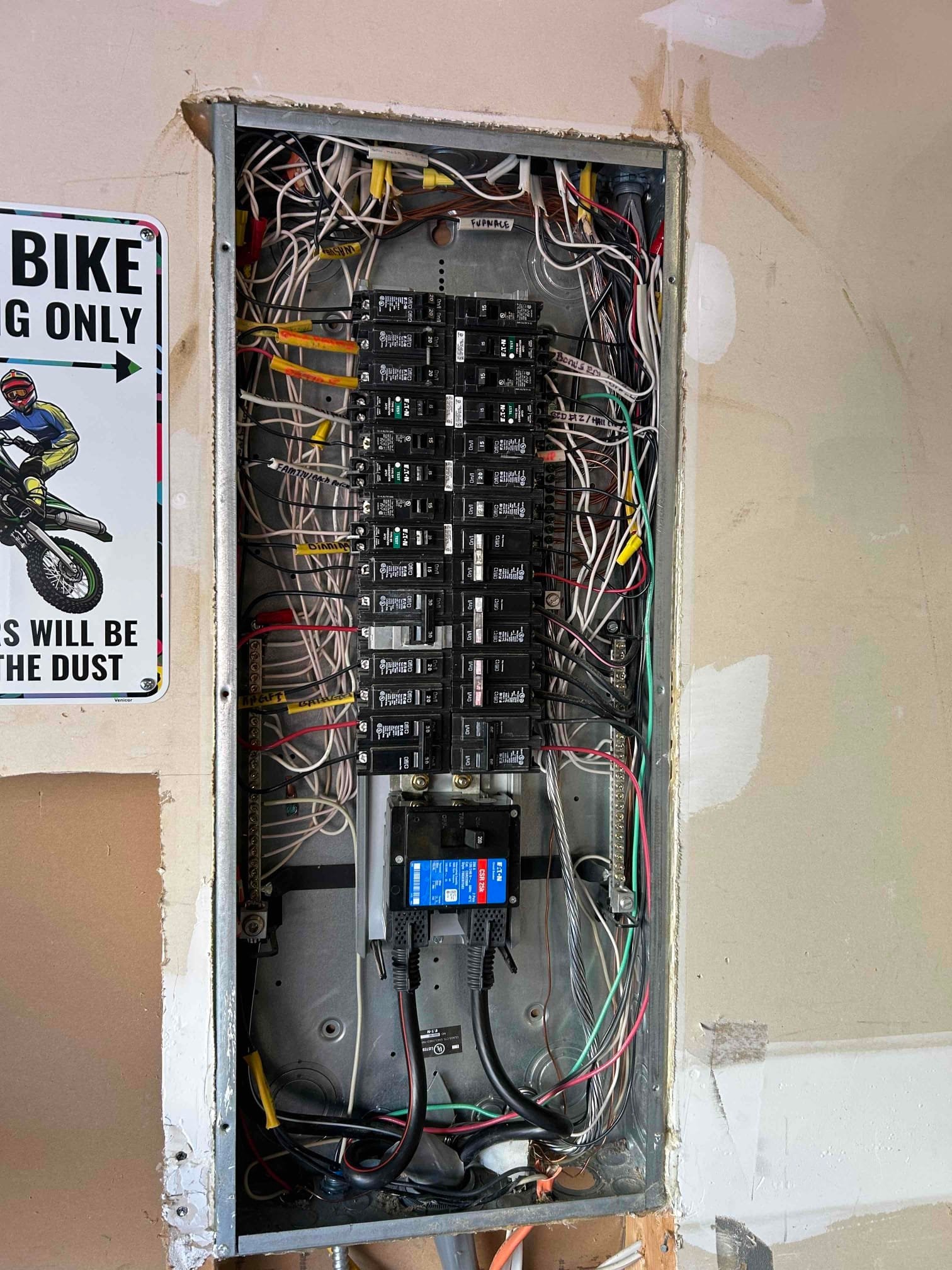

Generator Interlock & Inlet Installation in Garner, NC
Completed February 6, 2026 — Our Raleigh branch electrician, Brad Williams, delivered a clean, safe, and organized generator readiness upgrade for homeowner Michael Haselnan in Garner, NC. This project, part of our Whole-Home Generators and Manual Transfer Switch services, centered on installing a generator interlock system with a 50A breaker, adding a generator inlet with dedicated feeder, and reorganizing circuits for simple, safe operation during outages.
The work also included moving circuits that were previously tied into a standalone manual transfer switch back to the main panel. With clear labeling and an easy-to-follow operating sequence, the home is now prepared for efficient, code-conscious manual transfer to a portable generator whenever needed.
Scope of Work Performed
- Installed an interlock kit on the main panel face to mechanically prevent the utility and generator sources from being on at the same time.
- Added a new 50A generator breaker, positioned with prioritized circuits at the top left section of the panel for quick, intuitive access.
- Reconfigured the main electrical panel and spliced circuits as needed to create space and streamline the backup circuit layout.
- Moved the existing backup circuits that were on a manual transfer switch back into the main panel for consolidated, simplified control.
- Installed up to 15 ft of feeder from the panel to a mounted generator inlet, providing a tidy and accessible connection point.
- Provided a 15 ft whip (generator cord) that can be stored with the portable generator for fast hookup during an outage.
- Sticker-coded and clearly labeled the panel so the homeowner knows exactly which breakers to operate during a power interruption.
- Ensured all breakers and components used match panel specifications for proper protection and safe operation.
Why an Interlock + Inlet Setup Works for Garner Homes
An interlock system offers reliable manual transfer capability without a separate switch enclosure, using your existing main panel with a mechanical safety interlock. Homeowners in Garner, NC choose this approach for:
- Safety: Prevents backfeeding by blocking utility and generator power from being active simultaneously.
- Simplicity: Clear, labeled steps for switching power during an outage.
- Neat integration: Uses the main panel to prioritize essential circuits in one place.
- Flexibility: The 15 ft feeder and 15 ft whip allow convenient generator placement and connection.
What Was Included (and Not Included)
- Included: Interlock kit, 50A generator breaker, panel reconfiguration and splicing as needed, panel labeling/sticker coding, up to 15 ft of feeder to a mounted generator inlet, and a 15 ft whip.
- Not included: Conduit (if required by site conditions) and a portable generator.
Since the estimate was approved during our site visit, a service call discount was applied in accordance with our on-site estimate policy.
Local Expertise from Our Raleigh Branch
Touchstone Electric serves Garner, NC from our Raleigh branch with experienced, licensed technicians who focus on safe generator interlock installations, manual transfer solutions, and panel upgrades. We emphasize clean workmanship, straightforward labeling, and dependable operation so you can keep essential circuits powered when the grid goes down.
Whether you need a new interlock and inlet, want to reconfigure an existing manual transfer setup, or are planning a panel refresh to prepare for storm season, our team can tailor a solution that fits your home and priorities.
Customer Feedback
Michael Haselnan praised our work with a Google review after this project in Garner, NC.
Need a Generator Interlock in Garner, NC?
If you are in Garner or the surrounding area, our Raleigh team can help you get outage-ready with a safe, code-conscious interlock and inlet installation. Contact Touchstone Electric to schedule an assessment and get a tailored manual transfer solution for your home’s priority circuits.
