Gate Motor Circuit & GFCI Breaker Installation in Charlotte, NC

Touchstone Electric’s Charlotte team completed a clean, code-compliant power solution for a new gate operator for JM Fence Crafters in Charlotte, NC. On November 12, 2025, technician Cash Divver installed a dedicated 20‑amp branch circuit with GFCI protection, new indoor and outdoor wiring, and an electrical whip to deliver safe, reliable power to the gate motor.

This project falls under our Panels & Service Upgrades and Circuit Breaker Repair & Replacement services and was dispatched from our Charlotte branch, proudly serving the greater Charlotte metro from our Matthews location.

What We Installed

20‑amp GFCI Breaker: A new 20A GFCI breaker was added in the panel to protect the outdoor circuit and meet current electrical safety standards for exterior equipment.
NM‑B 12/2 (approx. 50 ft): Interior-rated cable from the service panel to the exterior transition point, neatly routed and secured to protect the home’s interior finishes.
UF 12/2 (approx. 20 ft): Direct‑burial, outdoor‑rated cable from the exterior junction to the gate location, installed at a code‑compliant burial depth. (Typical requirements are 24 inches, or 12 inches when GFCI protected.)
Electrical Whip: A flexible, weather‑resistant whip was installed to make a durable final connection to the gate operator.

Why a Dedicated 20‑Amp, GFCI‑Protected Circuit?

Reliability for the gate motor: A dedicated circuit ensures the operator isn’t sharing power with other loads that could cause voltage drops or nuisance interruptions.
Outdoor safety: GFCI protection helps guard against ground faults and moisture‑related hazards common to exterior installations.
Code alignment: Exterior equipment typically requires GFCI protection and proper burial depths and materials; this installation was designed to meet those standards.

Our Installation Approach

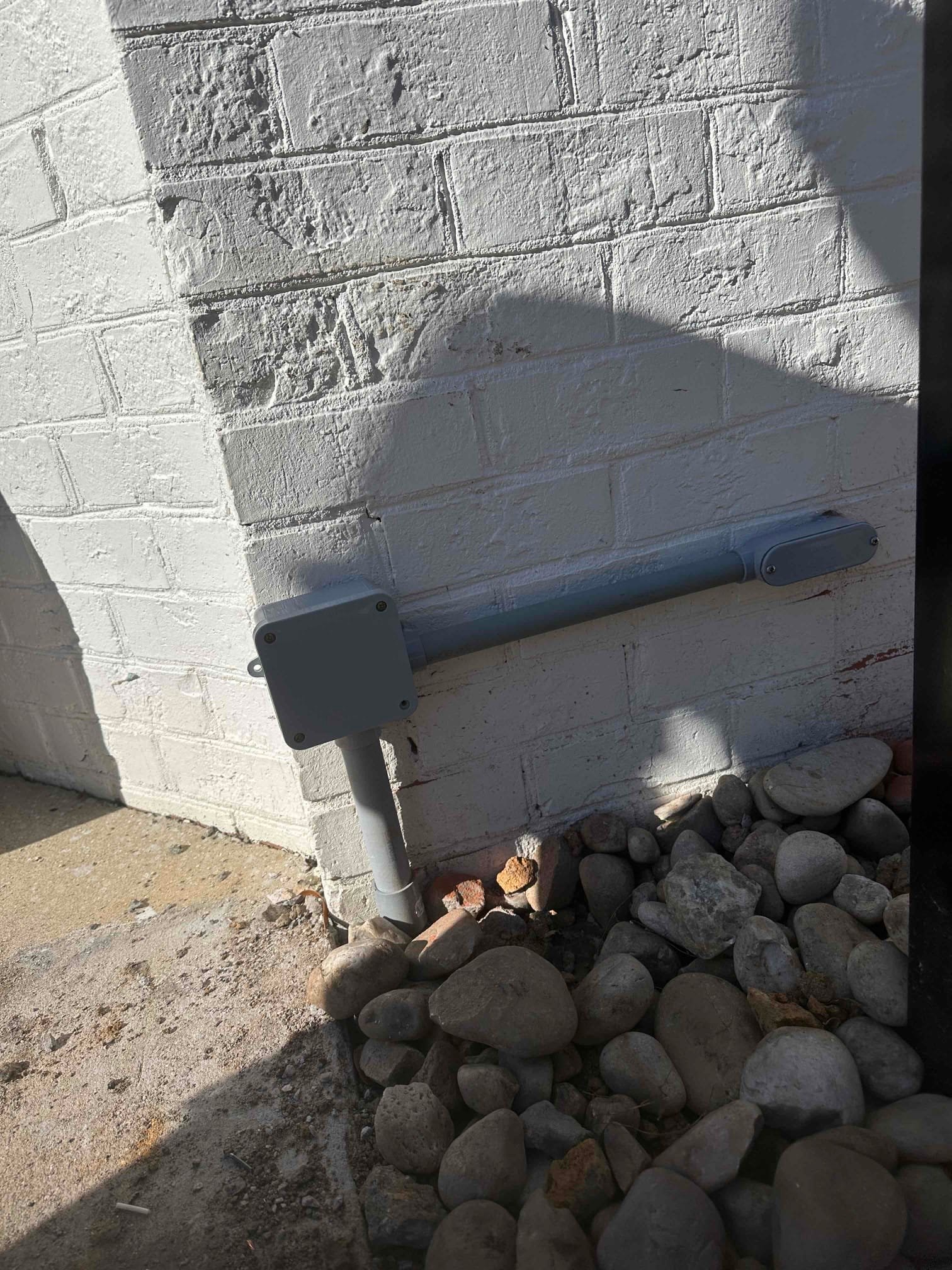

We began by identifying an appropriate breaker space and installing the 20‑amp GFCI breaker, then routing NM‑B 12/2 from the panel to an exterior transition point. From there, we switched to UF 12/2 cable—rated for direct burial—and routed it to the gate location with weather‑tight fittings and a clearly labeled junction.

At the equipment, we provided an electrical whip for a secure, flexible termination into the gate operator, supporting vibration resistance and serviceability. Connections were tightened to manufacturer torque specs, conductors were neatly dressed, and the new circuit was labeled for easy identification.

To wrap up, we tested the GFCI function, verified correct voltage and polarity, and confirmed smooth operation of the gate motor on its new dedicated circuit.

Local Expertise for Exterior Power in Charlotte

From driveway gates and landscape lighting to outbuildings and exterior receptacles, Touchstone Electric helps Charlotte homeowners and local businesses power outdoor projects the right way. Our Charlotte team brings deep experience with:

Panels & Service Upgrades: Breaker additions, panel optimization, and circuit expansions for new equipment.
Circuit Breaker Repair & Replacement: Modern protective devices, including GFCI and AFCI solutions.
Outdoor Power Runs: Proper cable selections (NM‑B vs. UF), weather‑rated transitions, and burial methods that align with code.

If you’re adding a gate motor—or any exterior equipment—in Charlotte, NC, our Matthews‑area team can design and install a dedicated, protected circuit that keeps your system running safely and reliably.
