EV Charger Circuit Upgrade in Charlotte
Touchstone Electric completed an EV charging circuit correction and outlet installation for Duke Energy - Allumia in Charlotte. The existing setup included an improperly sized 50-amp breaker and wiring that did not match the requirements of the intended charging circuit. Our technician, Chris Rogers, removed the old circuit components and installed a properly configured new circuit to support safer, dependable EV charging.
Level 2 EV chargers require the right combination of breaker size, wire gauge, receptacle, and installation practices. When any part of the circuit is undersized, oversized, or incorrectly matched, it can create performance concerns and potential electrical safety issues. This project focused on replacing the incorrect components with an appropriately sized 40-amp circuit and a new outlet.
Correcting an Improper EV Charging Circuit

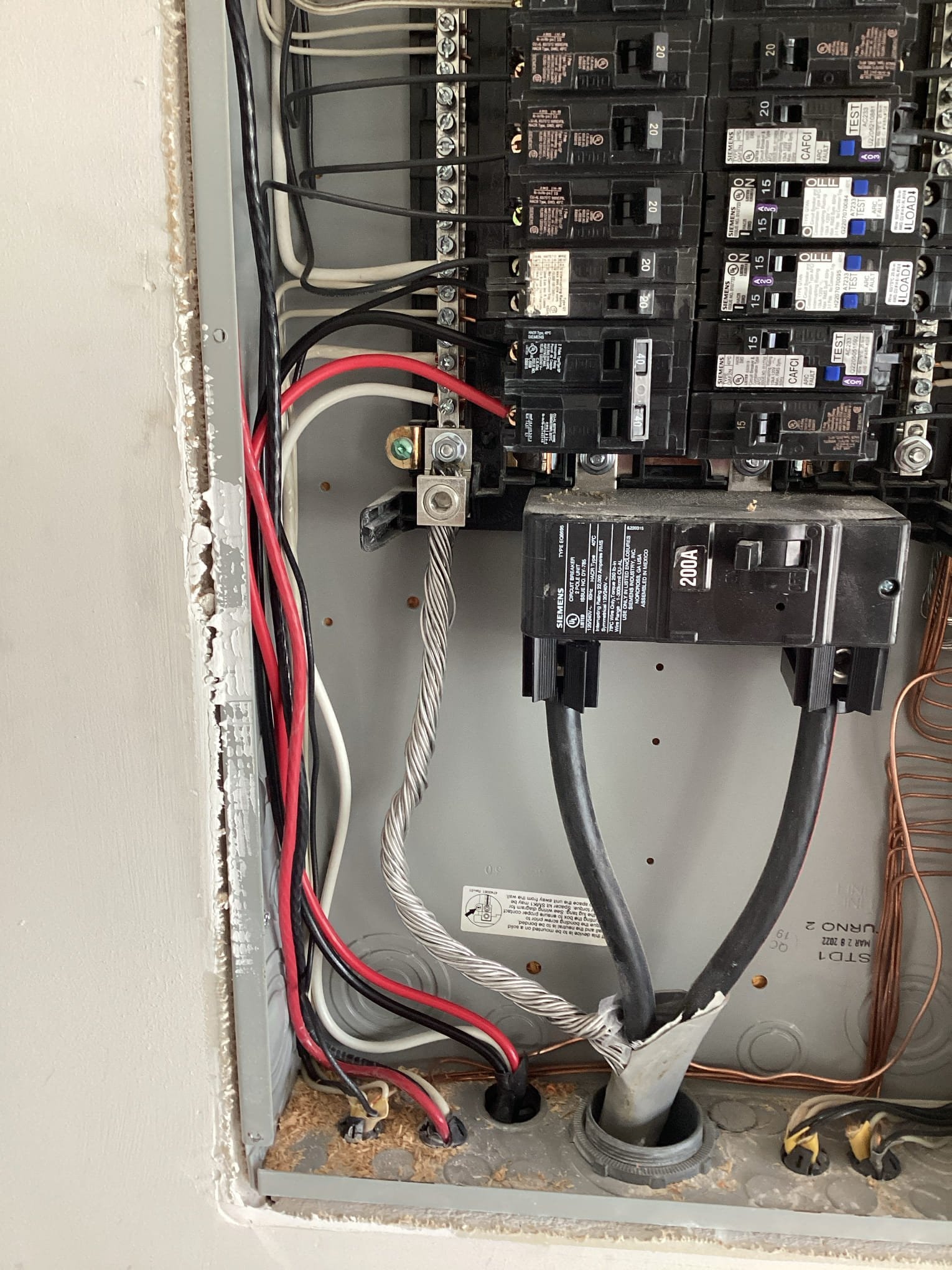

For this Charlotte EV charging project, our team replaced the existing 50-amp breaker with a 40-amp standard breaker. We also removed the improper wiring and installed approximately 15 feet of new 8/3 NM-B Romex wiring for the new 240-volt circuit. The upgraded wiring and breaker were selected to create a properly matched electrical pathway for the EV charger outlet.
After removing the previous circuit, we installed a new appliance receptacle for the customer-supplied EV charger. A dedicated outlet provides a designated connection point for the charging equipment and helps ensure the charger is supplied by a circuit designed for its electrical load.
Scope of EV Charger Electrical Work
- Removed the old, improperly configured EV charging circuit
- Replaced an undersized or mismatched 50-amp breaker with a 40-amp breaker
- Installed new 8/3 wiring for the dedicated 240-volt charging circuit
- Installed a new outlet for the customer-supplied EV charger
- Completed the electrical permit administration for the project
Why Proper Breaker and Wire Sizing Matters
An EV charger can place a sustained demand on a home’s electrical system, especially during longer charging sessions. Proper circuit design is essential because the breaker, conductor size, outlet, and charging equipment must work together. A breaker that is not correctly sized for the wiring and equipment can affect how reliably the charging circuit operates.
Our Charlotte electricians evaluate the existing electrical setup and make corrections when needed before installing or reconnecting EV charging equipment. Whether a homeowner needs a dedicated outlet, new wiring, breaker replacement, or a complete Level 2 EV charger installation, Touchstone Electric can help create a safer, code-conscious charging solution.
EV Charging Service in Charlotte
Touchstone Electric provides EV charging and Level 2 EV charger installation services throughout the Charlotte service area. Our team can assist with dedicated circuits, panel and breaker evaluations, receptacle installation, wiring upgrades, and electrical corrections for customer-supplied charging equipment.
