Outdoor Shed Power Circuit in Elgin
Touchstone Electric completed a safe, durable power run to a backyard shed in Elgin. Our team installed a dedicated, GFCI-protected 20A circuit, routed in PVC conduit through an existing 18-inch trench, and tied it into the prewired shed. The result is reliable power for lighting and general-use receptacles with robust protection against moisture and ground faults.
Project date: July 30, 2026 | Service category: Electrical Repairs & Troubleshooting
This job was completed by our Greenville team working through our Columbia branch to serve the Elgin area.
What We Did
- Installed a dedicated 20A GFCI breaker at the main panel to protect the entire outdoor run.
- Utilized the homeowner’s pre-run fish line to fish conductors from the crawlspace into the panel for a clean, minimally invasive pull.
- Routed conductors in 3/4-inch PVC conduit within the existing trench for a tough, weather-resistant underground pathway.
- Selected #10 THHN copper conductors for the underground segment to help minimize voltage drop over the distance to the shed.
- Added weather-resistant exterior junction boxes at the home and the shed for protected transitions and future serviceability.

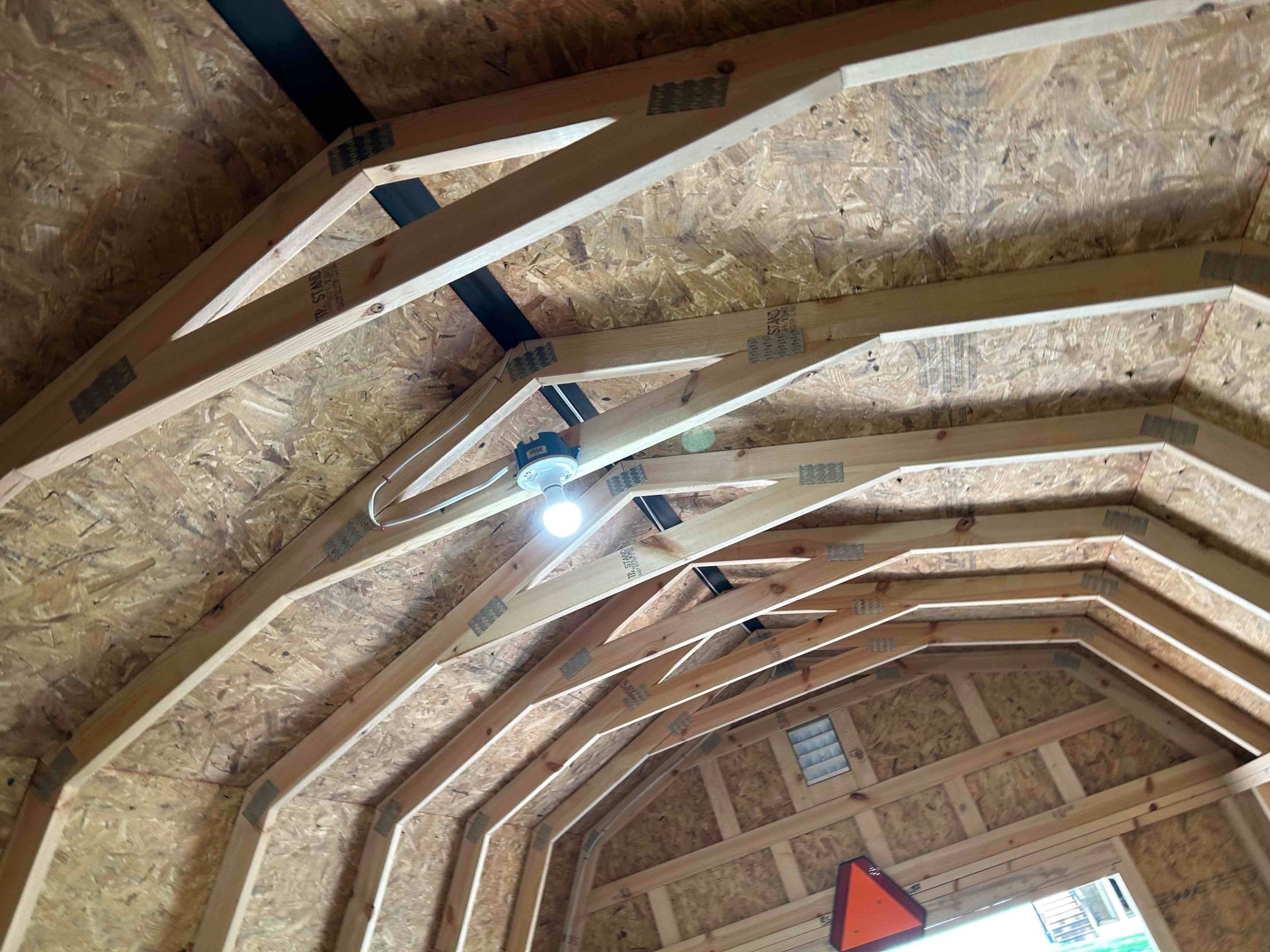

- Transitioned at the shed to NM-B cable to tie into the prewired shed’s existing 14-gauge branch wiring with appropriate protection at the point of connection.
- Tested all terminations, verified GFCI protection, and labeled the new circuit for straightforward identification.
Why GFCI Protection and PVC Conduit Matter
Shed and exterior circuits are exposed to weather and ground conditions that demand enhanced protection. A GFCI-protected circuit quickly shuts off power in the event of a ground fault, increasing safety around damp locations and outdoor equipment.
PVC conduit provides a durable, non-corrosive pathway for conductors underground. When paired with properly rated wire, it helps protect against abrasion, moisture, and soil movement—supporting long-term reliability and easier maintenance down the road.
Materials and Methods Used
- Breaker: 20A GFCI for comprehensive outdoor protection.
- Conduit: 3/4-inch PVC with appropriate fittings and LBs for a secure, continuous run.
- Wire (Underground): #10 THHN conductors for reduced voltage drop to the shed.
- Wire (House-to-Transition): 10/2 NM-B where appropriate in protected interior spaces.
- Wire (Shed Interior): 14/2 NM-B to interface with the shed’s existing 14 AWG circuits.
- Junction Boxes: Exterior, weather-resistant JBs at the house and shed for safe transitions.
- Crew: Lead electricians with assistance from an electrical apprentice for efficiency and safety.
Local Elgin Expertise You Can Trust
Whether it’s troubleshooting an existing outdoor circuit or installing a new feed to a detached structure, Touchstone Electric brings organized planning, neat workmanship, and clear communication to every job. We ensure your circuit is sized appropriately, protected from the elements, and labeled for future needs.
Homeowner Wayne Richardson praised our team in his post-service review. If you need dependable shed power, exterior receptacles, or outdoor lighting in Elgin, our electricians are ready to help.
Project Team
- Lead Technicians: Reuben Jansen Von Rensburg, Michael Bentkowski, Johann Fischer, Tyler Harris
- Service area: Elgin
- Branch: Columbia | Business unit: Greenville
