Electrical Repairs, GFCI Upgrades, and Subpanel Corrections in Waxhaw, NC

Our Charlotte branch, serving the Waxhaw and Matthews areas, responded to a failed electrical inspection at a residential project for Carolina Custom Construction. On October 23, 2025, technicians Theo Coetsee and Jose Rodriguez completed a thorough round of electrical repairs and troubleshooting to bring the installation up to current standards and prepare the home for re-inspection.

This service visit focused on correcting a subpanel, restoring a washer circuit, adding required GFCI protection, installing a kitchen island receptacle, and resolving nuisance breaker trips—key items for safety, usability, and code compliance.

What the inspection called out

• Subpanel issues: missing labeling, missing filler blanks, no dedicated ground bar, incompatible breakers installed, and missing factory cover screws.
• Washer receptacle had no power.
• GFCI for the washer would not be readily accessible once the appliance was in place.
• Kitchen countertop receptacles lacked required GFCI protection.
• NM cable for the kitchen hood was left hanging and not terminated.
• Two switches above the sink tripped two breakers when turned on.
• Kitchen island lacked a required receptacle per NEC 210.52(C)(2) (2017).
• 20-amp receptacles were installed on 15-amp circuits.
• Outside water heater wiring was incomplete.

How Touchstone Electric resolved the issues

• Subpanel corrections: We properly labeled the panel, installed filler blanks, added a dedicated ground bar for all equipment grounds, installed only breakers listed for the panel, and secured the cover with all factory-supplied screws. These steps restore safety, clarity, and manufacturer compliance.
• Laundry circuit restored: Our team traced the power loss to the washer receptacle, repaired the fault, and verified full operation under load.
• Accessible GFCI protection for the washer: We reworked protection so the GFCI is readily accessible for testing and reset, meeting accessibility and safety requirements without placing the device behind the appliance.
• Kitchen GFCI upgrades: All required kitchen countertop receptacles were provided with GFCI protection, improving shock safety along the counter areas where water and appliances are common.
• Kitchen hood wiring terminated: The NM cable was properly routed and terminated in an approved manner, eliminating exposed conductors and securing the connection for the range hood.
• Breaker-tripping above-sink switches fixed: We diagnosed the wiring that caused two breakers to trip when the switches were operated, corrected the fault, and verified normal switch function without nuisance trips.

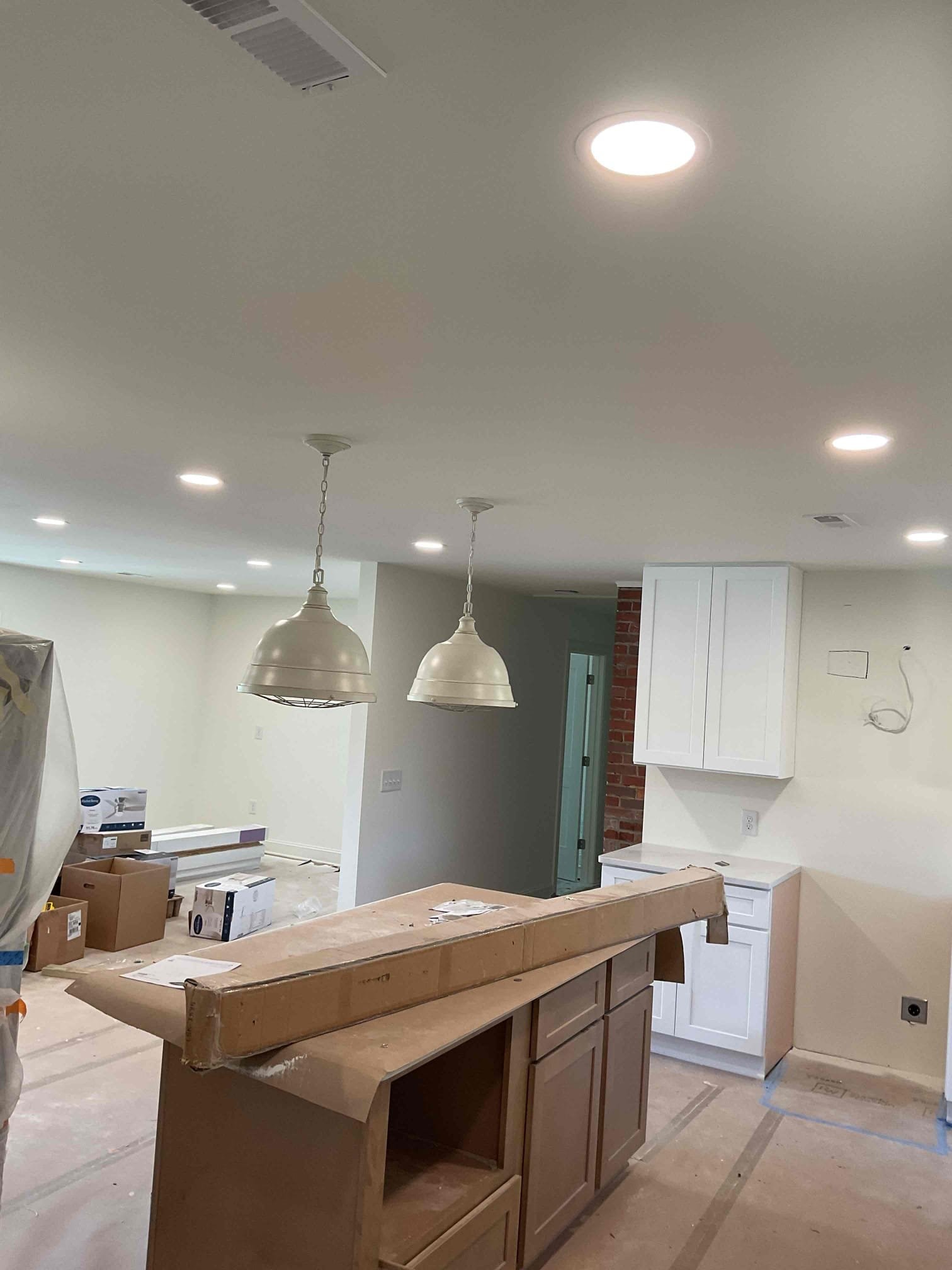

• Island receptacle installed: We added a receptacle on the kitchen island to satisfy NEC 210.52(C)(2) (2017), providing convenient power where it’s needed and ensuring inspection readiness.
• Device ratings corrected: Any 20-amp receptacles on 15-amp circuits were replaced with properly rated 15-amp devices to match circuit ampacity.
• Outdoor water heater wired: We completed the wiring to the exterior water heater and tested operation, bringing this equipment online safely.

After completing the repairs, we performed function checks across all affected circuits: subpanel labeling matched circuits, GFCI devices tested correctly, breakers held without tripping, and all newly installed devices operated as expected. The project was left ready for the authority having jurisdiction to re-inspect.
