Electrical Panel Upgrade and Surge Protection in Raleigh, NC
Touchstone Electric’s Raleigh branch completed a permitted electrical panel upgrade with whole-home surge protection for homeowner Winston Knight in Raleigh, NC. Led by technician Cody Perry, this project modernized the home’s service equipment, improved safety, and prepared the electrical system for present and future demand. Work was completed on February 4, 2026.
Project Overview

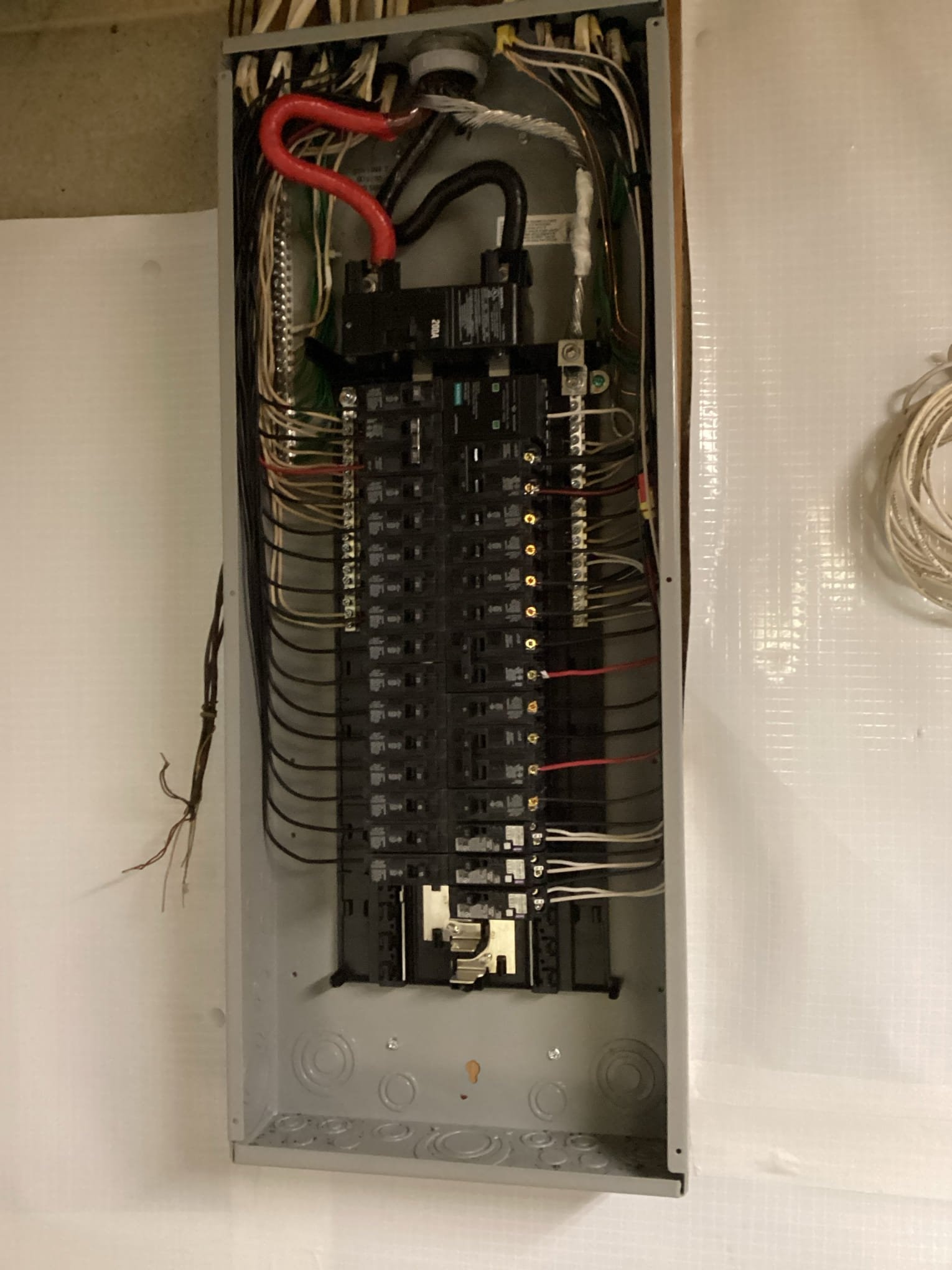

As part of our Panels & Service Upgrades and Electrical Panel Upgrades services, we replaced the main panel with a new 200-amp indoor panel featuring an aluminum bus, brought the installation to current electrical code, and added a whole-home surge protection system. The upgrade was fully permitted and scheduled for inspection in accordance with Raleigh, NC requirements.
Scope of Work
- Permit pulled for code-compliant installation and inspection.
- Main electrical panel replacement (200A, aluminum bus):
- Grounded and bonded the panel per current code.
- Reconnected the service entrance conductors and existing branch circuits.
- Relabeled circuits for clear identification and future maintenance.
- Limited power kept available during the outage via a generator provided by Touchstone Electric.
- Whole-home surge protection installed with $10K/3-year coverage as noted on the device specification.
- THHN 2/0 feeder conductors installed to support the upgraded service as required.
- Breaker updates to serve household loads:
- 2 × 40A standard double-pole
- 2 × 30A standard double-pole
- 13 × 20A standard
- 9 × 15A standard (including bathroom lighting per 2020 code)
- Crawlspace diagnostic and extension to provide a safe, code-appropriate method when a direct home run wasn’t feasible.
- 60 ft NM-B 12/2 installed for 20-amp circuits, with junction boxes as needed.
Note: This scope did not include a service disconnect, conduit, main breaker, or meter upgrade unless separately specified.
Code and Safety Considerations
With Raleigh inspectors implementing aspects of the NEC 2020, some homes may require AFCI breaker upgrades on certain circuits. AFCIs can trip when preexisting wiring issues are present (for example, shared neutrals), which can require additional diagnostic time to locate and correct. During this project, our team followed current code requirements and ensured proper grounding, bonding, and labeling to enhance overall system safety.
Warranties and Protections Included
- Signature Lifetime Craftsmanship Warranty from Touchstone Electric.
- Panel warranty: 20-year transferrable warranty on the aluminum-bus main panel (per manufacturer).
- Surge protection: Whole-home device with $10K equipment coverage for 3 years (per device specification).
These protections help safeguard the home’s electrical system and connected appliances against power surges while supporting long-term reliability.
Local Expertise from Our Raleigh Team
From permitting to final inspection, Touchstone Electric’s Raleigh branch delivers professional, code-compliant electrical panel upgrades and service upgrades across Raleigh, NC. Whether you need a safer main panel, surge protection, or dedicated circuits for modern appliances and EV charging, our team provides solutions designed for your home’s needs and future plans.
Customer Feedback
We’re proud to share that Winston Knight praised our work and left us a review. You can view it here: See the Google review.
Need an Electrical Panel Upgrade in Raleigh?
If you’re experiencing a crowded panel, tripping breakers, or you’re adding high-demand equipment, our Raleigh team can help with a professional, permitted upgrade and surge protection. Contact Touchstone Electric to schedule an assessment and get your home ready for safe, reliable power.
