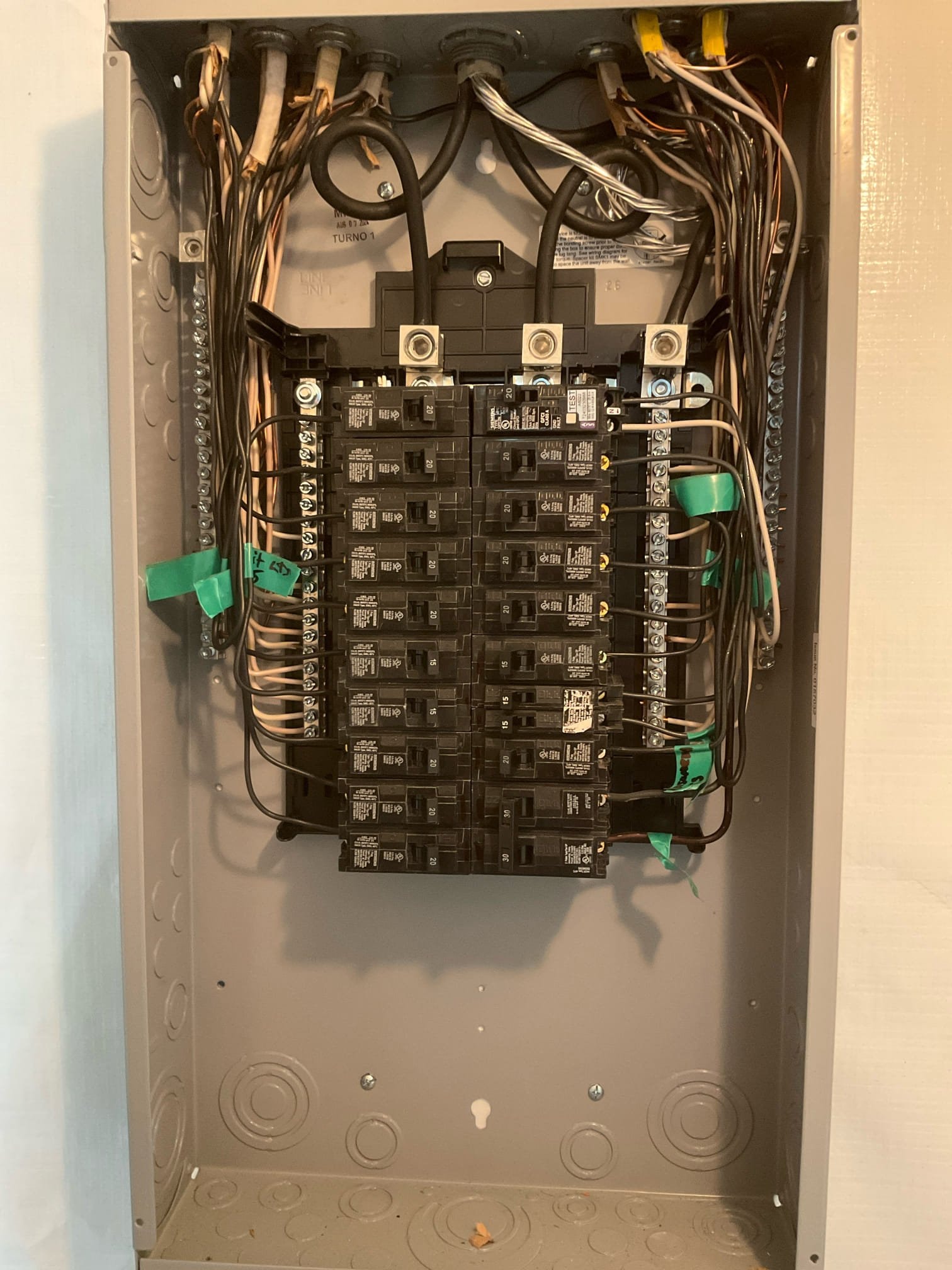

Electrical Panel Upgrade & Surge Protection in Cherryville, NC

On December 6, 2024, our Matthews-based Charlotte team completed a comprehensive Panels & Service Upgrades project for homeowner Quita Moss in Cherryville, NC. Led by technician Viktor Opalko, the scope included replacing the main electrical panel, installing a $100k/10-year whole-home surge protector, and adding an indoor 200A subpanel for future expansion.

Signature Lifetime Craftsmanship Warranty included.

What we upgraded

Main electrical panel replacement: New service panel featuring a copper bus for superior conductivity and longevity, backed by a 50-year transferable bus warranty.
Whole-home surge protection: Installed at the service equipment to divert damaging voltage spikes safely to ground. This device carries $100,000 in appliance coverage for 10 years, helping protect electronics and extend the life of household systems against lightning, grid fluctuations, and equipment cycling.
200A indoor subpanel: Added capacity and cleaner circuit organization to support current loads and planned upgrades.
Code-appropriate breakers installed:
- Six 15A standard breakers for lighting and general-purpose circuits.
- Twelve 20A standard breakers for small-appliance and similar branch circuits.
- One 30A double-pole breaker for higher-demand equipment such as a dryer, water heater, or condenser.
- One 20A GFCI breaker for required areas like bathrooms, laundry, garage, exterior, or basements.
Permit pulled: Electrical permit filed with the county to ensure a compliant, inspected installation.

Why this upgrade benefits Cherryville homes

Safety and reliability: A modern panel with a copper bus improves thermal performance and helps reduce nuisance tripping.
Capacity for today’s loads: Supports HVAC, kitchen appliances, EV charging, and remodels without overtaxing legacy gear.
Whole-home protection: Surge defense helps safeguard sensitive electronics and appliances, reducing premature failures.
Room to grow: The dedicated 200A subpanel provides organized expansion for future circuits and projects.

Permitting, code, and inspection readiness

Touchstone Electric secured the electrical permit and coordinated inspection for this Electrical Panel Upgrades project. As inspectors continue implementing the 2020 NEC, certain circuits may require AFCI protection. In some homes, AFCI can reveal preexisting conditions—such as shared neutrals—that may call for diagnostic work to resolve. If anything like this arises, our team explains the findings and recommended solutions so you can make an informed decision.

Scope note: Our service includes the electrical permit for this work. If a jurisdiction requires additional non-electrical permits (for example: zoning, historic, environmental/septic, builder, or separate subcontractor permits), those are not included, but we can advise on next steps or assist with processing if needed.

Completed by our Charlotte branch

This Cherryville, NC upgrade was performed by our Matthews-based Charlotte team with careful attention to workmanship, safety, and long-term value. From premium components to permit handling and inspection support, we deliver a smooth, code-compliant experience for homeowners.

If you’re planning a main panel replacement, adding a subpanel, or looking to protect your home with whole-home surge protection, Touchstone Electric is ready to help in Cherryville and across Greater Charlotte.
