Touchstone Electric’s Charlotte branch, based in Matthews, recently completed a comprehensive Panels & Service Upgrades project for Sealing Agents in Fletcher, NC. Led by technician Brad Anderson, this job focused on a safe, code-compliant path to increase reliability and capacity: installing new 2-inch EMT conduit, pulling a 2/0 THHN feeder to exterior panels, replacing the main breaker, and performing a thorough panel rejuvenation on two panels. Completed on December 10, 2024, the work enhances safety, performance, and future scalability for the property’s electrical system.

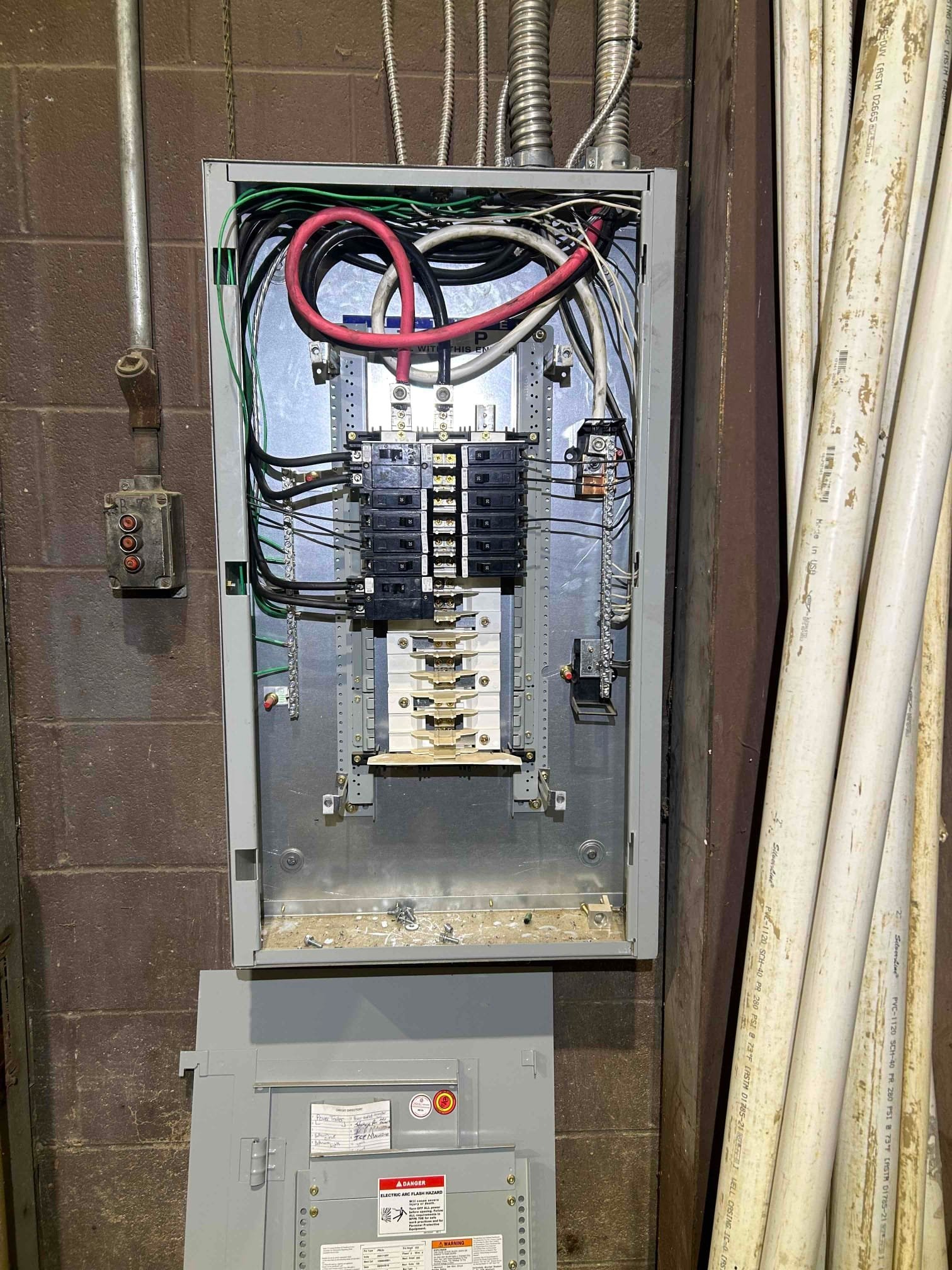

Project overview: Electrical panel upgrade and feeder install
Our team installed rigid, weather-ready 2-inch EMT conduit and pulled approximately 80 feet of 2/0 THHN feeder conductors to supply the exterior panels with dependable capacity. To ensure proper protection and alignment with the panel’s rating, we replaced the main two-pole breaker. We then completed a two-panel rejuvenation to restore safe operation and extend service life.
- Feeder upgrade (2/0 THHN): Sized for robust, efficient power delivery to main and subpanels, reducing voltage drop and improving reliability under load.
- 2-inch EMT conduit: Secure, professionally mounted runs with connectors and fittings appropriate for exterior use and clean service entrances.
- Main breaker replacement: A properly matched, two-pole main breaker that safeguards downstream circuits and aligns with the panel’s amperage rating.
- Panel rejuvenation (two panels): Vacuum/clean, re-torque connections, verify ground/neutral separation with one conductor per lug, seal openings, check for water intrusion, confirm correct utility voltage, apply antioxidant where needed, and test AFCI/GFCI operation with customer consent.
Safety-first details that make a difference
Beyond installing new materials, our rejuvenation process targets the issues that commonly cause nuisance tripping, overheating, and premature equipment wear. By tightening terminations, ensuring proper bonding and grounding, and sealing unused knockouts, we help prevent arcing and moisture ingress—two of the leading causes of panel damage. Verifying voltage and testing protection devices (with consent) provide added peace of mind that the system is operating as intended.
The result is a neater, safer panel environment, improved conductor integrity thanks to antioxidant application on aluminum where applicable, and a clearly organized layout that makes future service or expansion simpler and faster.
Local expertise serving Fletcher, NC
This project was completed by our Charlotte branch serving the Fletcher area. Technician Brad Anderson ensured every step—from conduit routing and secure mounting to breaker selection and final testing—met current electrical standards and local best practices.
We’re grateful that Sealing Agents praised our work with a review. Read their feedback on Google: View the customer’s Google review.
When to consider a panel or feeder upgrade
- Frequent breaker trips, flickering lights, or warm panel covers
- Adding EV charging, HVAC upgrades, or new high-demand equipment
- Evidence of corrosion, water intrusion, or damaged conductors
- Original or outdated main breaker and limited panel capacity
- Mixed grounds/neutrals or multiple conductors under one lug
If you’re experiencing any of these issues in Fletcher, NC, our team can assess your panel, feeder sizing, grounding, and protective devices to recommend a safe, future-ready solution.
Your partner for panels and service upgrades in Fletcher
From conduit and feeder installations to main breaker replacements and panel rejuvenations, Touchstone Electric delivers clean workmanship and code-compliant results. For projects like this one in Fletcher—or anywhere our Charlotte branch serves—reach out to schedule an assessment and get your electrical system ready for what’s next.
