Project overview
Touchstone Electric’s Charlotte branch completed a comprehensive electrical panel upgrade and breaker replacement for homeowner Shane Gorth in Lincolnton, NC. Led by technicians Ash Ashirin and Tyquan Johnson, the project was finalized on 08/27/2026 and was fully permitted and inspected. This Panels & Service Upgrades project brings the home’s service up to modern standards while adding room for future expansion.
Scope of work completed
- Main service upgrade: Installed a 200A indoor aluminum main panel. The new panel was properly grounded, bonded, labeled, and all existing circuits were reconnected to meet current electrical code.
- Breaker replacements and additions:
- 2 × 30A double-pole breakers (typical uses: dryer, water heater, AC condenser, spa, EV charger)
- 4 × 50A standard breakers (typical uses: range, furnace/heater, small subpanel, EV charger)
- 1 × 20A double-pole breaker (small appliance/lighter equipment)
- 12 × 20A standard breakers (general-purpose/small appliance circuits)
- 8 × 15A standard breakers (bathroom lighting per 2020 code and standard branch circuits)
- Whole-home surge protection: Installed a panel-mounted surge protective device to divert excess voltage safely to ground. Coverage includes a $10,000 equipment protection warranty for 3 years (excludes direct lightning strikes; secondary to homeowner’s insurance; see Covered Equipment limitations).
- Grounding system improvement: Drove a new ground rod and installed approximately 20 ft of #6 bare copper grounding electrode conductor (continuous, bonded to the main panel) to strengthen the home’s grounding and bonding.

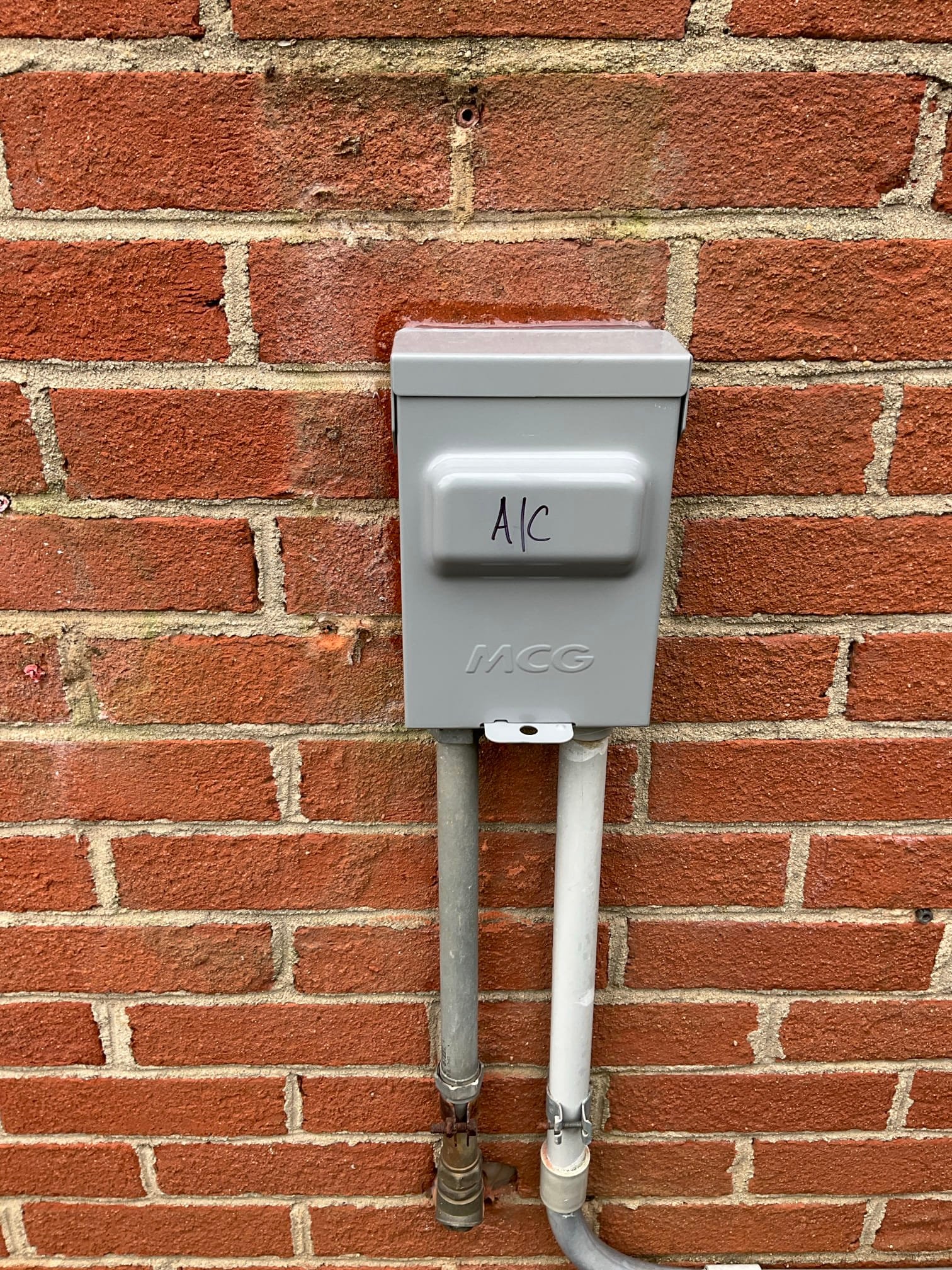

- AC equipment disconnect: Added a ≤60A pull-out service disconnect to provide a code-compliant means to isolate power for maintenance.
- Permitting and inspection: Filed the electrical permit with the county and coordinated inspection in Lincolnton, NC.
Note on permitting: The electrical permit was included. If a project requires non-electrical permits (for example: Historic Preservation, Environmental/Septic, Zoning, Builders, or other separate permits), those are not included unless specifically arranged.
Why this upgrade matters for Lincolnton homes
- Added capacity for modern loads: A 200A panel better supports EV chargers, updated HVAC equipment, electric ranges, and workshop tools without overloading older infrastructure.
- Improved safety and reliability: New breakers, corrected labeling, and robust grounding and bonding reduce nuisance tripping and help protect people and property.
- Surge protection for sensitive electronics: Whole-home surge protection helps shield appliances and electronics from grid fluctuations and transient surges, extending equipment life.
- Code-ready installation: The work was performed to current standards recognized in Lincolnton, with attention to 2020 NEC requirements for bathroom lighting and other branch circuits.
AFCI considerations: As inspectors continue implementing 2020 NEC, some homes may require AFCI breaker upgrades. Preexisting wiring conditions (such as shared neutrals) can cause immediate tripping and may require diagnostic time to correct. Our team advises homeowners on these findings and outlines resolution steps when needed.
Local expertise from our Charlotte team
Serving Lincolnton and the surrounding area, Touchstone Electric’s Charlotte branch delivers panel upgrades that balance safety, capacity, and long-term value. We handle permitting, coordinate inspection, and communicate clearly about any code-driven updates so homeowners know exactly what to expect.
Homeowner feedback
After completion, Shane Gorth shared positive feedback about the experience with our team in Lincolnton. We appreciate the trust and the opportunity to upgrade the home’s electrical infrastructure.
Planning an electrical panel upgrade in Lincolnton, NC?
If your home is due for a service upgrade, new breakers, better grounding, or whole-home surge protection, our licensed electricians can help. From assessment and permitting to installation and inspection, Touchstone Electric makes the process straightforward and code-compliant for Lincolnton homeowners.
