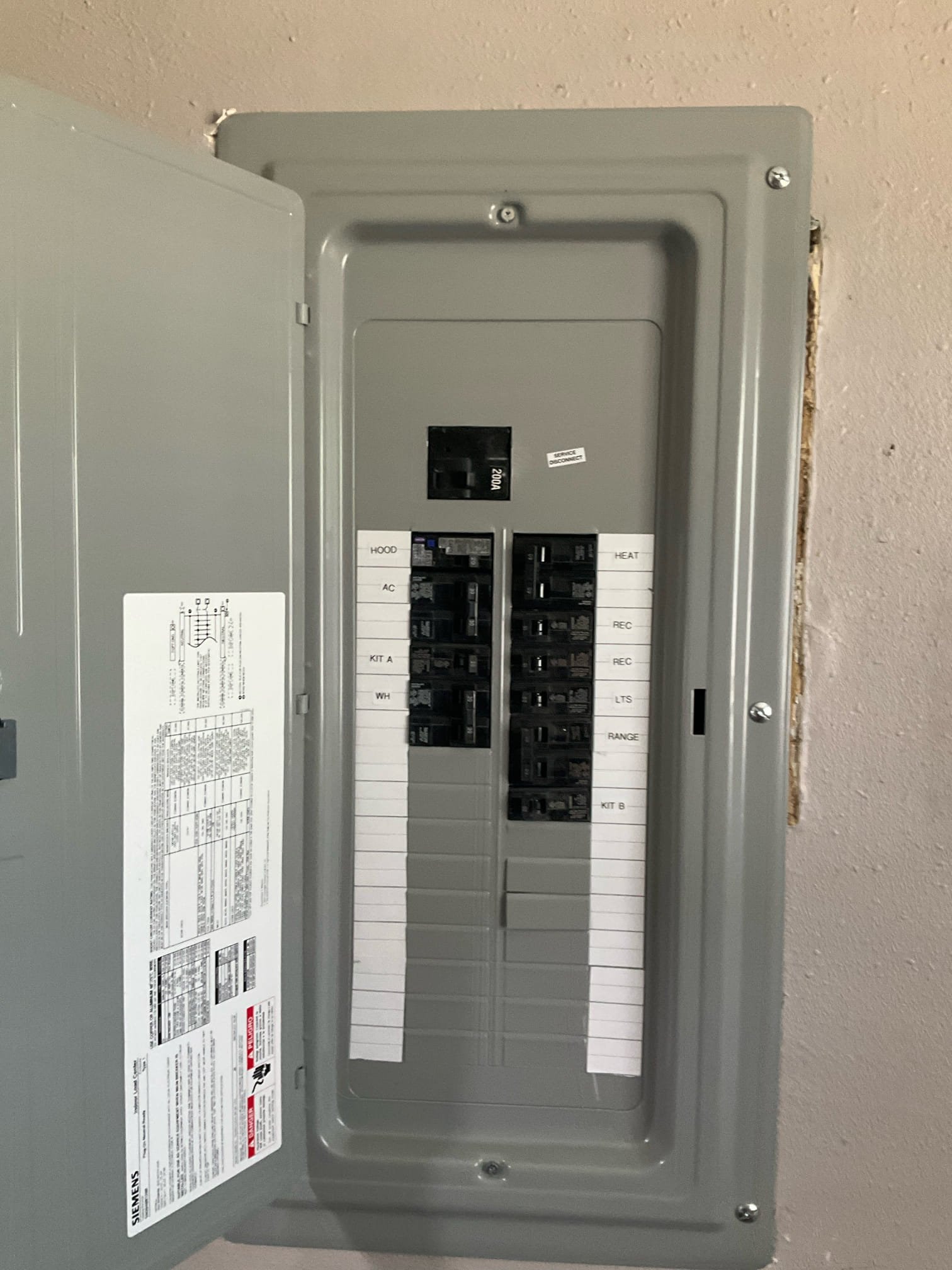

Electrical Panel Upgrade and 200A Subpanel in Charlotte, NC
Touchstone Electric completed a comprehensive electrical panel upgrade for Timber Ridge Apartments in Charlotte, NC. Our Charlotte team, based out of our Matthews branch, replaced the aging main indoor panel, installed new code-compliant breakers, and added a 200-amp indoor subpanel to support present and future electrical demand.
Technicians Theo Coetsee and Robert Sloan handled the project from start to finish. Permits were pulled and inspections passed on May 7, 2026, confirming National Electrical Code (NEC) compliance and safe operation for the property.
What We Installed on This Project
The upgrade was designed to improve safety, expand available capacity, and organize key branch circuits for easier serviceability. The scope included:
- New main indoor panel: Modern, labeled, and sized to support current load needs and expansion.
- New breakers: A balanced mix of standard and GFCI protection as required by code and application.
- 200A indoor subpanel: Added capacity and cleaner circuit separation for high-demand areas.
- Permits and inspections: All work performed to code, permitted, and inspected for full compliance.
Breaker Configuration and Typical Uses
As part of the upgrade, we installed and supplied a selection of breakers tailored to the property’s circuits. Typical applications include:
- 4 × 15A Standard breakers – bathroom lighting and general lighting/branch circuits (per 2020 code requirements)
- 3 × 20A Standard breakers – small appliance circuits
- 1 × 50A Standard breaker – commonly used for a range, heater/furnace, small subpanel, or EV charger
- 1 × 60A Standard breaker – commonly used for a range, heater/furnace, small subpanel, or EV charger
- 1 × 25A Standard (double pole) breaker – often for a small condenser, well pump, or mini-split
- 1 × 30A Standard (double pole) breaker – typically for a dryer, water heater, air condenser, spa, or EV charger
- 1 × 20A GFCI breaker – bathroom, dining, laundry, garage receptacles, exterior outlets, crawl spaces, and basements
- 2 × Custom electrical labor tasks – professional wiring, terminations, and panel organization
Final circuit assignments are always verified on site to ensure correct protection and labeling according to code and the property’s needs.
Code Compliance, Permits, and Inspection
Every panel and subpanel upgrade we perform in Charlotte is permitted and inspected. For this project, our team coordinated the permitting process, executed the installation to NEC standards, and supported final inspections—all of which passed—so the property owner can rely on a safe, documented, and compliant electrical system.
Why Add a 200A Subpanel?
A 200-amp subpanel provides additional circuit spaces and capacity, which is especially helpful when planning renovations, adding HVAC equipment, level 2 EV charging, or redistributing existing loads for better balance. It also makes future maintenance and expansion cleaner and more efficient.
NEC 2020 and AFCI Considerations
As inspectors continue to implement NEC 2020, some existing circuits may require upgrades to AFCI protection. In older wiring systems, issues like shared neutrals can cause nuisance tripping when AFCI breakers are added. If that occurs, diagnosis may involve tracing affected circuits and isolating wiring anomalies. Our team explains these possibilities up front and offers solutions that bring your system into compliance while preserving reliability.
Local Charlotte Expertise
Touchstone Electric’s Charlotte unit serves homeowners and property managers throughout Charlotte, with scheduling and support from our Matthews branch. Whether you need a main panel replacement, a subpanel for new loads, or help navigating permitting and inspections, our licensed electricians deliver neat workmanship and clear communication.
Reviewed by Timber Ridge Apartments
Timber Ridge Apartments praised our work on this project. Read their review here: Google review for Touchstone Electric.
Plan Your Panel or Subpanel Upgrade in Charlotte
If you’re planning a remodel, adding an EV charger, or simply need more reliable power, schedule a panel assessment with our Charlotte team. We’ll evaluate your current system, discuss code requirements, and provide a tailored plan to upgrade safely and efficiently.
