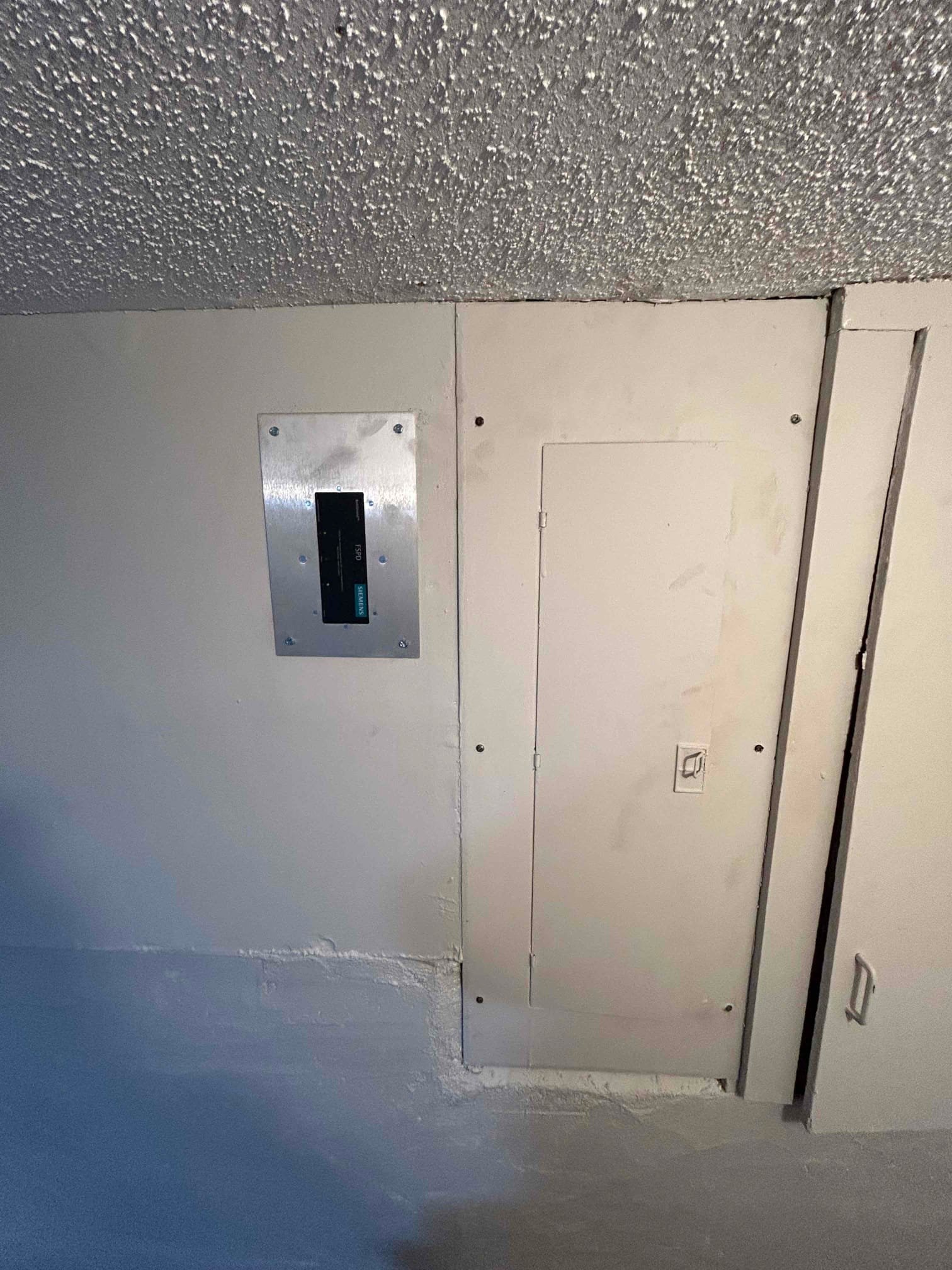

Expert Electrical Panel Rejuvenation & Surge Protection in Mooresville, NC

Touchstone Electric’s Charlotte team (serving Mooresville from our Matthews branch) completed a comprehensive panel rejuvenation and surge protection upgrade for Stanley Campbell on January 12, 2026. Lead technician Will Cruz addressed safety and reliability concerns inside the main service panel and improved whole‑home protection against power surges.

Primary service: Panels & Service Upgrades • Secondary: Panel Rejuvenation

Safety and Code Corrections Completed

Our inspection found several issues that can lead to overheating, nuisance tripping, and potential equipment damage. We corrected the following items to restore a safe, code‑compliant panel:

Separated double‑tapped neutrals: Moved neutrals so each conductor terminates in its own lug and verified neutral/ground separation in the panel.
Installed a new 30A two‑pole breaker: Eliminated double‑tapped conductors by providing a dedicated breaker and proper terminations.
Added required wire connectors: Installed connectors where needed for secure, protected conductor entry.
Grounding upgrade with a second ground rod: Drove an additional rod and ensured a continuous grounding electrode conductor (GEC) back to the main service panel for improved fault clearing and lightning dissipation.
Whole‑home surge protection: Mounted and wired a service‑rated surge protective device (SPD) at the main panel to divert excess voltage safely to ground.

What Our Panel Rejuvenation Includes

Our Panel Rejuvenation service is a proactive tune‑up for your home’s electrical heart. For this Mooresville project, we performed:

Deep clean: Vacuumed the panel and cleared debris for a safer working environment.
Re‑tensioning: Tightened all accessible lugs and breaker terminals to manufacturer torque specs.
Neutral/ground verification: Confirmed one conductor per lug and that neutrals and grounds are properly isolated in the panel.
Moisture and intrusion check: Inspecting for water entry and sealing openings to prevent arcing and keep critters out.
Voltage checks: Verified correct incoming service voltages with the utility supply.
Anti‑oxidant application: Applied where required on aluminum conductors.
Protection testing: With the customer’s consent, tested AFCI and GFCI functions to confirm added safety layers operate as intended.

The result is a cleaner, safer, and more reliable panel that helps reduce heat buildup, arcing, and nuisance trips—while positioning the system for future expansion.

Whole‑Home Surge Protection Benefits

We installed a main‑panel surge protector to shield the home from spikes caused by lightning activity, utility grid fluctuations, and large appliances cycling on and off. The SPD routes excess voltage to ground before it can damage sensitive electronics and major appliances, helping extend their lifespan.

The installed unit includes manufacturer protection up to $50,000 for covered equipment over 10 years in the unlikely event of SPD failure. Coverage terms and exclusions apply; see the manufacturer’s documentation for details.

Why Mooresville Homeowners Choose Us

From careful torqueing and conductor management to robust grounding and surge defense, our Charlotte/Matthews team brings detail‑driven craftsmanship to every panel we service. If you’re experiencing tripping breakers, visible corrosion, or you suspect neutrals/grounds may be combined in your panel, our Panel Rejuvenation is a smart, safety‑first solution.

Reviewed by Our Customer in Mooresville

Stanley Campbell praised our work and shared feedback on Google. Read the review here: View on Google

Need Panel Rejuvenation or Surge Protection in Mooresville?

Touchstone Electric is ready to help with inspections, code corrections, grounding upgrades, new breakers, and whole‑home surge protection. Schedule your service with our Charlotte team, proudly serving Mooresville and nearby communities from our Matthews branch.
