Call 855-502-2244Project overview in Mount Pleasant, NC

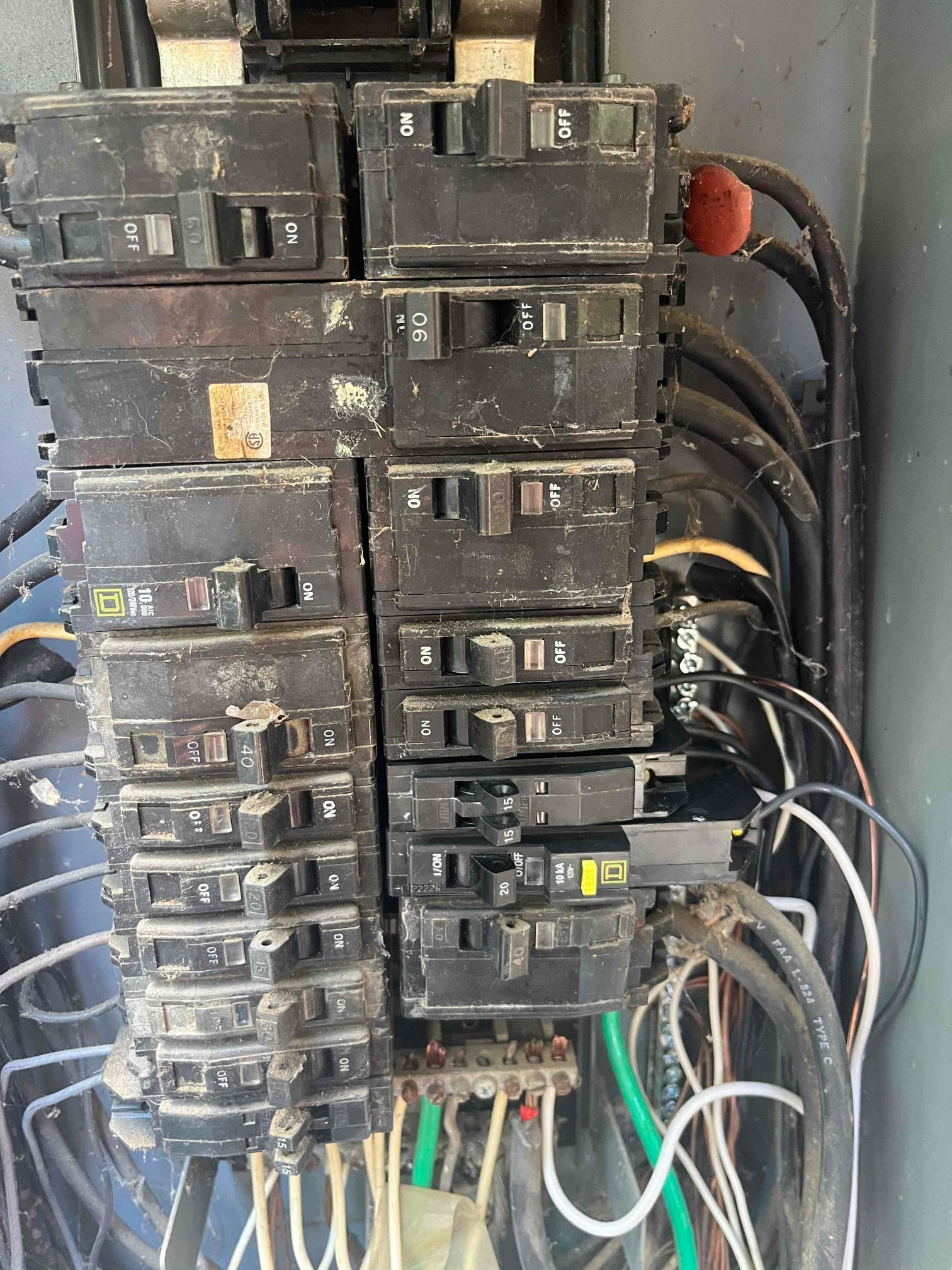

On October 1, 2024, Touchstone Electric completed a Panel Rejuvenation for homeowner Renae Davisson in Mount Pleasant, NC. Led by technician Steve Goheen from our Charlotte branch, this service focused on correcting unsafe wiring practices and preparing the panel for a new circuit.
During our assessment, we found many neutrals in the panel were double tapped. This condition can lead to loose connections, overheating, and potential damage to sensitive electrical equipment. To address the issue and create room for a future circuit, our team installed an additional bus bar and separated the neutrals so each conductor terminates on its own screw.
Scope of work: bus bar install and neutral separation
- Bus Bar Install: Supplied and installed a new ground or neutral bar to increase available termination points inside the existing panel.
- Separated double-tapped neutrals: Moved individual neutral conductors onto dedicated terminals to eliminate shared lugs.
- Created space for a new circuit: Reorganized conductor terminations to make the panel ready for an additional branch circuit.
- Panel rejuvenation: Improved organization and safety within the panel to support more reliable operation.
By adding the bus bar and correcting the neutral terminations, the panel now has a cleaner layout with reduced stress on connections—a straightforward upgrade that helps safeguard the home’s electrical system.
Why double-tapped neutrals are a concern
Neutrals are designed to be landed one conductor per terminal screw. When two or more are placed under a single lug, the clamping pressure is uneven and connections can loosen over time. This can cause arcing, nuisance tripping, overheating, or damage to appliances and electronics.
Installing an additional bus bar provides the necessary termination points so each neutral has its own secure connection. The result is lower risk of heat buildup and a panel that’s easier to maintain and expand.
Benefits delivered for this Mount Pleasant home
- Improved electrical safety: Eliminated double-tapped neutrals to reduce the chance of overheating and arcing.
- Room for expansion: Opened capacity for a new circuit without replacing the entire panel.
- Cleaner layout: Organized conductors for easier future service and troubleshooting.
- Greater reliability: More consistent terminations that support stable operation of household circuits and equipment.
When to consider a panel rejuvenation
- Visible double-tapped neutrals or grounds in the panel
- Insufficient open spaces for new circuits
- Frequent breaker trips or flickering lights
- Warm spots or discoloration around breakers or terminals
If you’re in Mount Pleasant and notice any of these signs, Touchstone Electric can assess your panel and recommend targeted upgrades that improve safety and readiness for future needs.
Local service from our Charlotte branch
As a residential electrical contractor, Touchstone Electric provides Panels & Service Upgrades and dedicated Panel Rejuvenation services throughout Mount Pleasant, NC. Our Charlotte team, serving the area from our Matthews location, focuses on practical solutions that enhance safety and extend the life of your existing equipment.
Need more space in your panel or concerned about double-tapped neutrals? Our technician team, including professionals like Steve Goheen, is ready to help with clear recommendations and neat, dependable workmanship.
