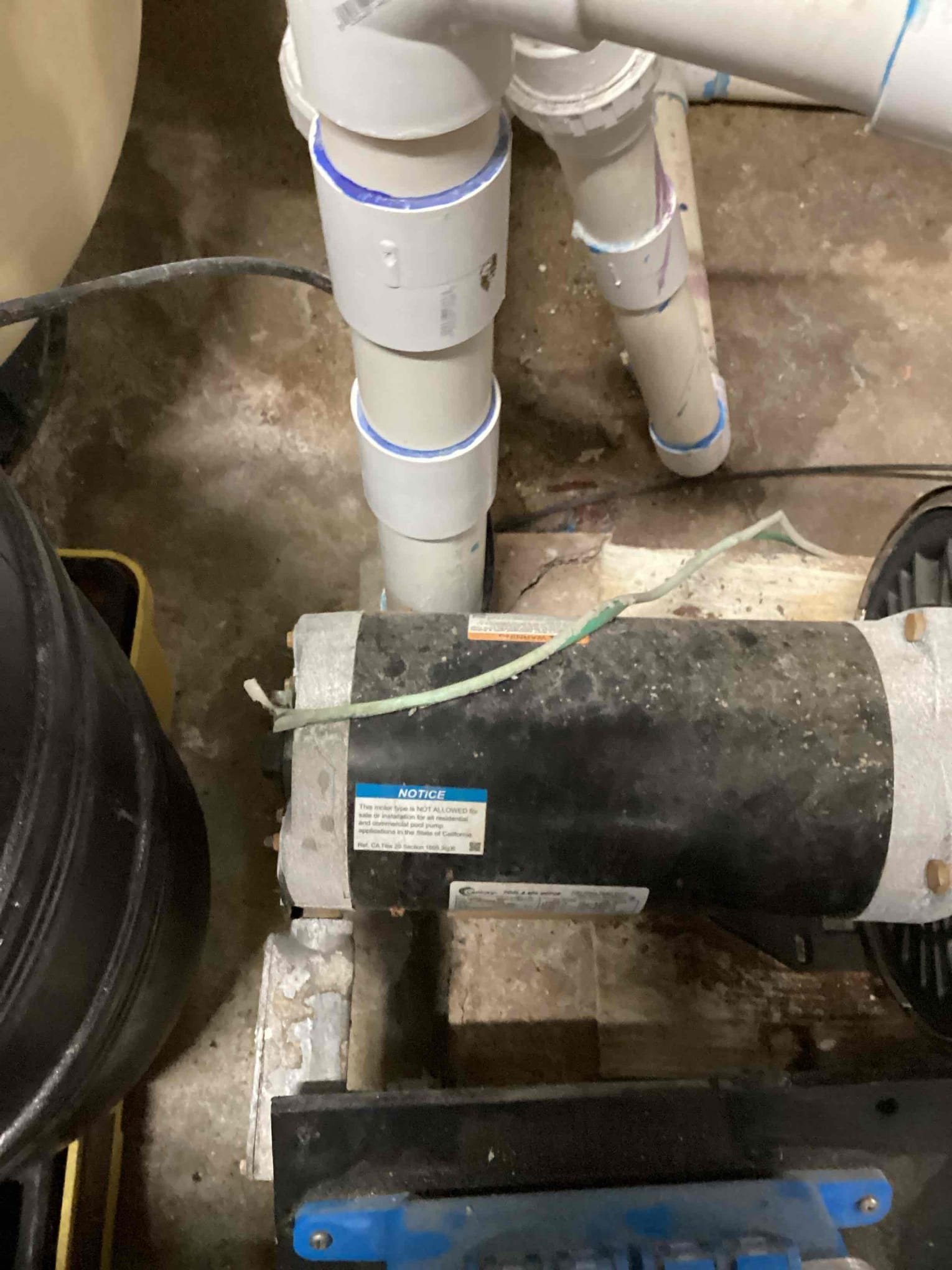

Call 855-502-2244Durham Pool Equipotential Bonding Check and Megger Testing
Touchstone Electric’s Raleigh branch completed a comprehensive equipotential bonding inspection and 500V Megger testing for YMCA of the Triangle in Durham, NC. The work was performed by our technician, Cody Perry, and completed on September 16, 2025.
This specialty service ensures that all conductive parts in and around the pool area are bonded together with very low resistance, reducing the risk of electric shock and helping facilities maintain safe, code-compliant operations.
What Our Pool Bonding Inspection Included
- Metal identification and mapping: We identified every piece of metal in the pool environment—down to the bolts on the diving board—and created a test diagram to ensure nothing was missed.
- Equipment isolation: All pool equipment and VFDs (Variable Frequency Drives) were powered down. The bonding grid in the machine room was safely disconnected from equipment to prevent parallel paths during testing.
- Test lead setup: A bare copper conductor was run from the ground bond in the machine room to the Megger, and from the Megger to each identified metal component for individual tests.
- 500V Megger tests: We applied 500 volts using the Megger to gauge resistance between the bonding grid and each metal piece.
- Ohms of Resistance Log: We recorded a resistance value for every component. The standard threshold is that no reading should exceed 0.02 ohms.
Results and Documentation
All measured points were logged, and readings were within the 0.02-ohm threshold specified for this inspection. Detailed diagrams and the Ohms of Resistance Log were provided for the facility’s records to support maintenance planning and safety documentation.
As part of our quality protocol, if any readings differ from prior-year results, we recommend further investigation to pinpoint changes in the bonding path, connections, or components. Consistent annual testing helps track trends and address any emerging issues early.
Why Equipotential Bonding Matters for Durham Facilities
Proper pool bonding creates a uniform electrical potential across all metal components, helping to minimize touch-voltage differences and reduce shock risk for swimmers, staff, and patrons. For high-traffic facilities like community centers and athletic organizations, this verification is a critical life-safety layer that also supports compliance with modern pool electrical standards.
Commercial Pool Considerations
- Scope scales with pool size: Larger facilities have more conductive components and longer test paths, which influences time and complexity.
- Next steps when issues are found: If a component exceeds the 0.02-ohm threshold or if readings shift from prior years, we provide a focused follow-up plan and, if needed, corrective bonding work.
- Documentation: We maintain diagrams and resistance logs to help facility managers, safety officers, and inspectors quickly verify the bonding system’s performance year over year.
Proudly Serving Durham from Our Raleigh Branch
Touchstone Electric’s Raleigh team supports pool and hot tub electrical services throughout Durham, NC and surrounding communities. Whether you manage a commercial aquatic center or a community pool, we can help verify that your equipotential bonding is intact and documented.
The YMCA of the Triangle also shared feedback on our service for this project. We appreciate the opportunity to support a safe, reliable swimming environment in Durham.
If you need a pool bonding check, Megger testing, or follow-up corrective work, reach out to Touchstone Electric’s Raleigh branch to schedule an assessment.
