Project overview
Our Charlotte team completed a residential electrical upgrade in Troutman, NC for customer John Solberg on January 8, 2025. Led by technician Danny Bishop, this project focused on reliable power for a garage freezer, enhanced surge protection at the main panel, and improved grounding for whole-home safety.
If you need help with Outlets & Switches or Outlet Installation & Repair in Troutman, our Matthews branch proudly serves the area with code-compliant workmanship and clean, careful installs.
What we installed

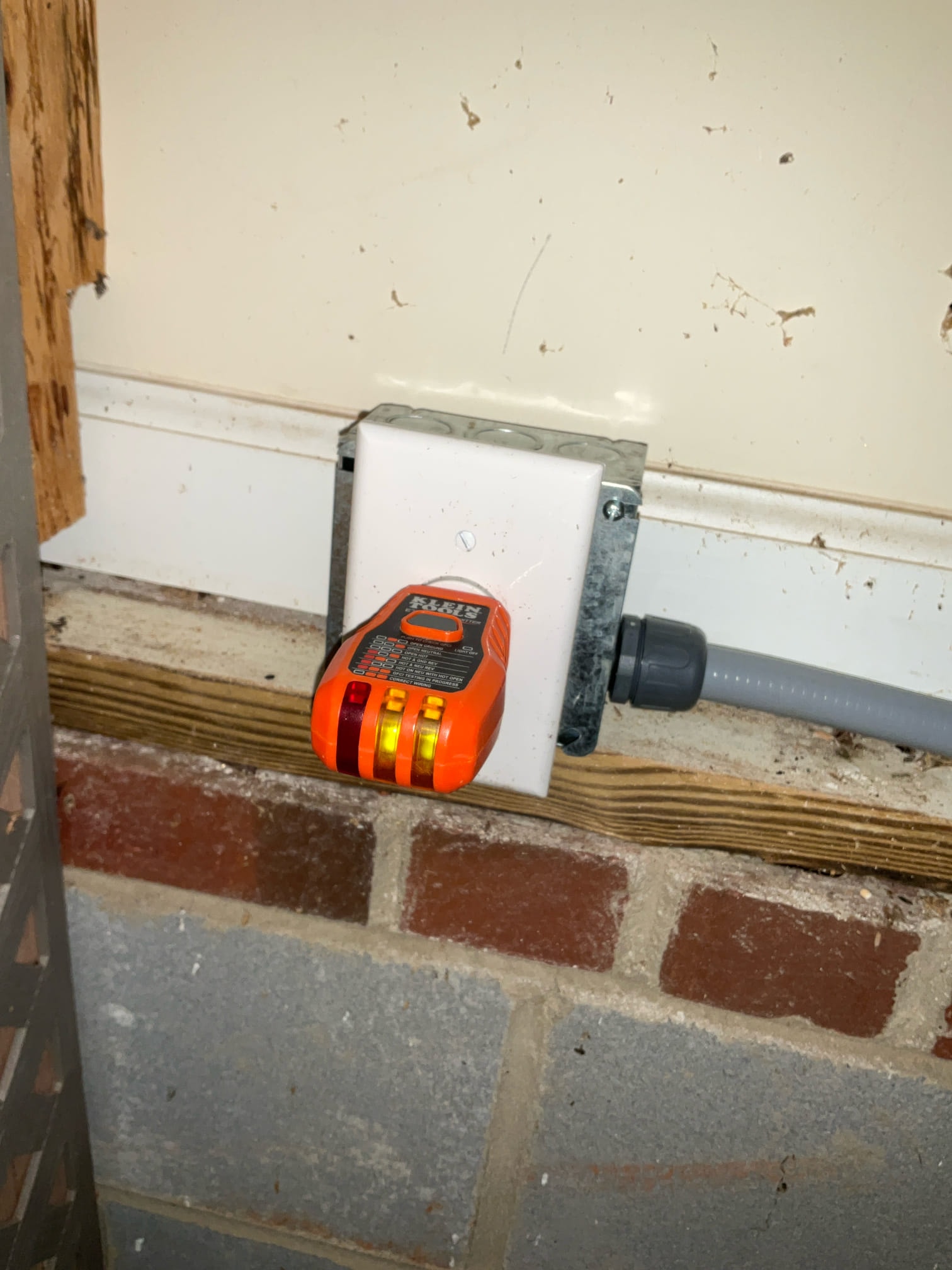

- Dedicated 15-amp garage freezer circuit: We furnished and installed a new 15A circuit with a single-yoke receptacle dedicated to the freezer. The run originated at the outdoor panel and was routed through flexible protective conduit (carflex) in the garage cabinet to the freezer location. The circuit was completed with a 15A breaker and 14/2 NM-B wiring for a safe, reliable connection.
- Whole-home surge protector: A panel-mounted surge protection device was installed to help divert excess voltage to ground, shielding the home’s electrical system and connected equipment from lightning-related surges, utility fluctuations, and equipment cycling.
- Second ground rod: We added an additional ground rod and ensured a continuous grounding electrode conductor back to the main service panel, strengthening the home’s grounding system for safety and code adherence.
Why a dedicated freezer circuit matters
Garage freezers can draw significant current during compressor start-up. Placing the freezer on a dedicated 15A circuit reduces nuisance trips, minimizes voltage drop, and helps protect your food from unexpected power interruptions caused by shared loads. A single, dedicated receptacle also prevents accidental overloading from additional devices.
Surge protection benefits for your home
Whole-house surge protection adds a crucial first line of defense against damaging voltage spikes. By shunting excess energy safely to ground at the main panel, it helps extend the lifespan of sensitive electronics and major appliances throughout the home.
- Helps protect against lightning-induced surges and utility grid fluctuations
- Reduces cumulative wear on electronics and appliances
- Complements point-of-use protectors for layered protection
This installation includes a $10,000 / 3-year warranty on covered home appliances in the unlikely event of protector failure. Per the manufacturer, claims are secondary to your existing insurance policy and direct lightning strikes are excluded. Typical covered equipment includes a washer, dryer, refrigerator, freezer, HVAC unit located inside the house, trash compactor, dishwasher, garbage disposal, stove, and a stove with a built-in microwave. Security systems and medical equipment are not covered.
Grounding upgrades improve safety
A robust grounding system provides a low-impedance path for fault currents and helps surge protection devices work effectively. By adding a second ground rod and ensuring a proper, continuous grounding electrode conductor to the main service, we enhanced the home’s overall electrical safety and performance.
Customer feedback
John praised our work with a review after the service. You can read the feedback here: Google Review – Touchstone Electric in Troutman.
Choose Touchstone Electric in Troutman
- Local expertise from our Matthews location and Charlotte-area team
- Clean, code-focused installations for outlets, circuits, and surge protection
- Clear scopes of work and respectful service from start to finish
Whether you need a garage outlet installation, a dedicated freezer circuit, or a whole-home surge protector, Touchstone Electric is ready to help in Troutman, NC. Contact our team to schedule an on-site assessment and keep your home powered safely and reliably.
