Electrical Repairs & Troubleshooting in Fairview, NC

Our Asheville team recently completed a targeted electrical repair and dedicated circuit installation in Fairview, NC. Technician Frank Fragale diagnosed an issue where a hot water heater and an air handler were sharing power and needed to be separated onto their own 20-amp circuits. The work was completed on July 15, 2026 for customer Art Waterman.

Shared circuits on high-demand equipment can lead to nuisance tripping, unnecessary wear on components, and potential safety concerns. By isolating these appliances on dedicated 20-amp circuits, we helped improve reliability and align the home’s electrical system with best practices.

What We Did

Frank began with a thorough diagnostic to trace the existing wiring, verify breaker assignments, and measure load conditions when the air handler and water heater called for power. Based on the findings, we performed a corrective installation to separate the loads.

Diagnostic and testing: Inspected the panel and circuits to confirm shared loads and identify the best separation method.
New 20-amp breaker install: Added a standard 20A breaker to provide a dedicated supply for the newly isolated load.
12/2 NM-B Romex run: Installed approximately 15 feet of 12/2 cable to route power cleanly and safely to the designated appliance.
Verification: Performed functional tests to confirm each appliance operates on its own circuit without tripping or voltage drop under normal demand.

The result: the water heater and air handler each now operate on their own 20-amp circuits, helping ensure stable performance and reducing the chance of overloads.

Why Dedicated Circuits Matter for Water Heaters and Air Handlers

Safety: Reduces the risk of overheated wiring and overloaded breakers when equipment starts or cycles.
Reliability: Prevents nuisance trips that cut hot water or climate control at inconvenient times.
Performance: Provides consistent power so motors and heating elements start and run as designed.
Best practices: Aligns with common code requirements and manufacturer recommendations for high-demand equipment.

If your water heater and air handler share a breaker, or if you’ve noticed frequent breaker trips when both run, a dedicated circuit installation may be the right solution.

Signs You May Need Electrical Troubleshooting in Fairview

Breaker trips when the air handler starts or when hot water is in heavy use
Audible buzzing or humming from the panel under load
Lights dim or flicker when HVAC equipment kicks on
Visible evidence of shared circuits for high-demand appliances
Older wiring or panels that haven’t been evaluated in years

Our electricians can diagnose these symptoms and recommend targeted repairs that improve safety and comfort without unnecessary upsells.

Your Local Fairview Electricians

Touchstone Electric’s Asheville team proudly serves Fairview and nearby communities from our Hendersonville-area branch presence. We bring clear communication, careful diagnostics, and dependable workmanship to every service call—especially when it comes to Electrical Repairs & Troubleshooting and dedicated circuit installations.

About the Technician

Frank Fragale completed the diagnostic and installation for this project, ensuring the new 20-amp circuit, wiring, and testing were performed with attention to safety and long-term reliability.

Need a Dedicated Circuit or Electrical Repair in Fairview?

If you suspect shared circuits or are experiencing tripping breakers, schedule an inspection with Touchstone Electric. We’ll evaluate your system, explain your options, and complete the work with the same care we brought to this Fairview project.

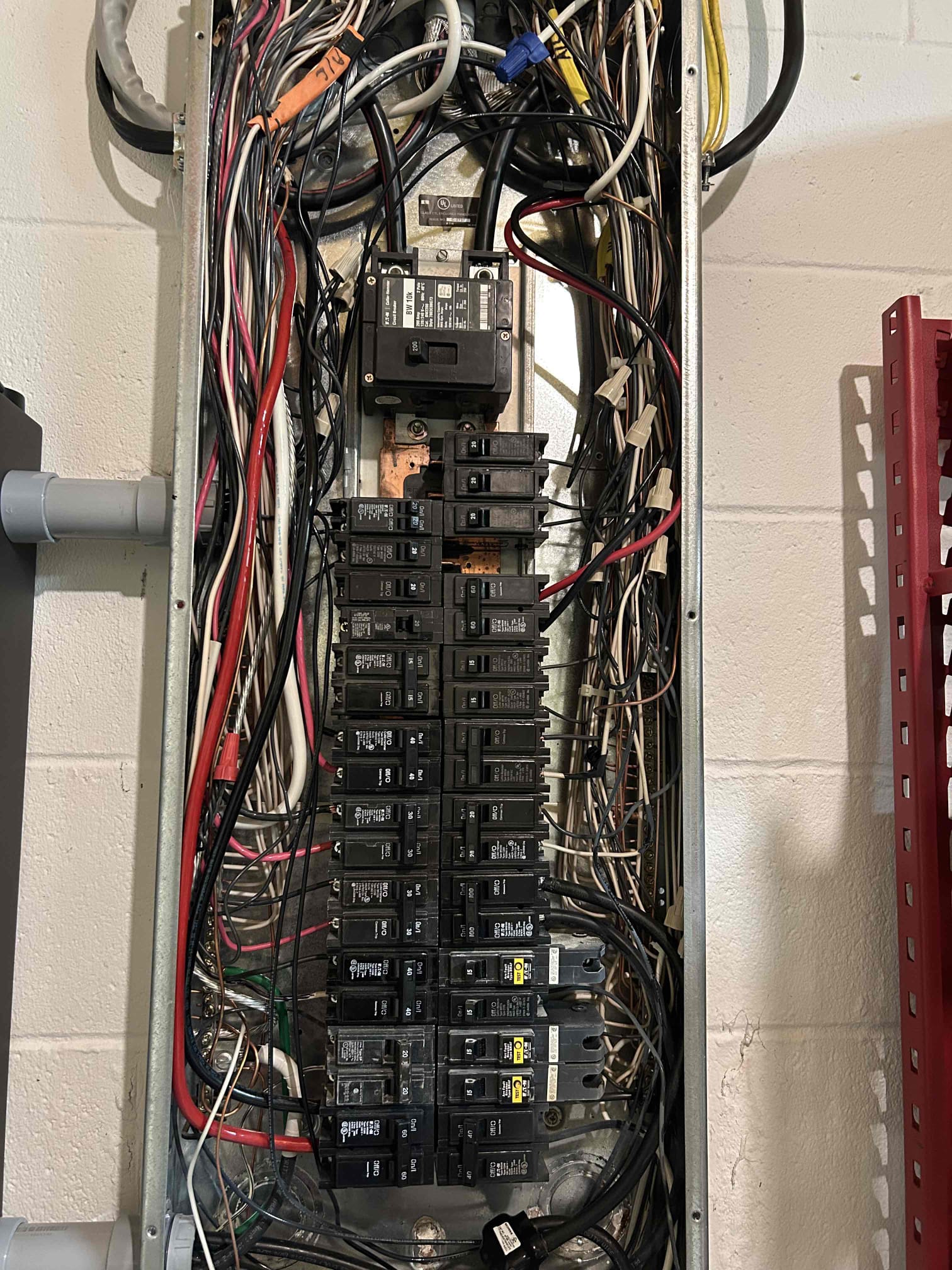

Dedicated Circuit Installation & Electrical Repair in Fairview
