Project overview
Touchstone Electric completed a dedicated 50A RV outlet installation in Catawba, NC, as part of our Outlets & Switches service category (Outlet Installation & Repair). This project, completed in April 2025 by our Charlotte team out of the Matthews branch, provided homeowner Greg Harris with a safe, reliable connection for an RV parking space. Technicians Easton Mitchell and Robert Sloan handled the installation from trenching to final testing.
The goal was to deliver a robust, code-conscious solution that keeps high-demand RV loads off general-use circuits, reduces nuisance tripping, and offers a clean, convenient hookup point outdoors.
Scope of work in Catawba, NC
- Dedicated 50A circuit: Installed a new 50-amp breaker in the main panel to power the RV receptacle on its own circuit.

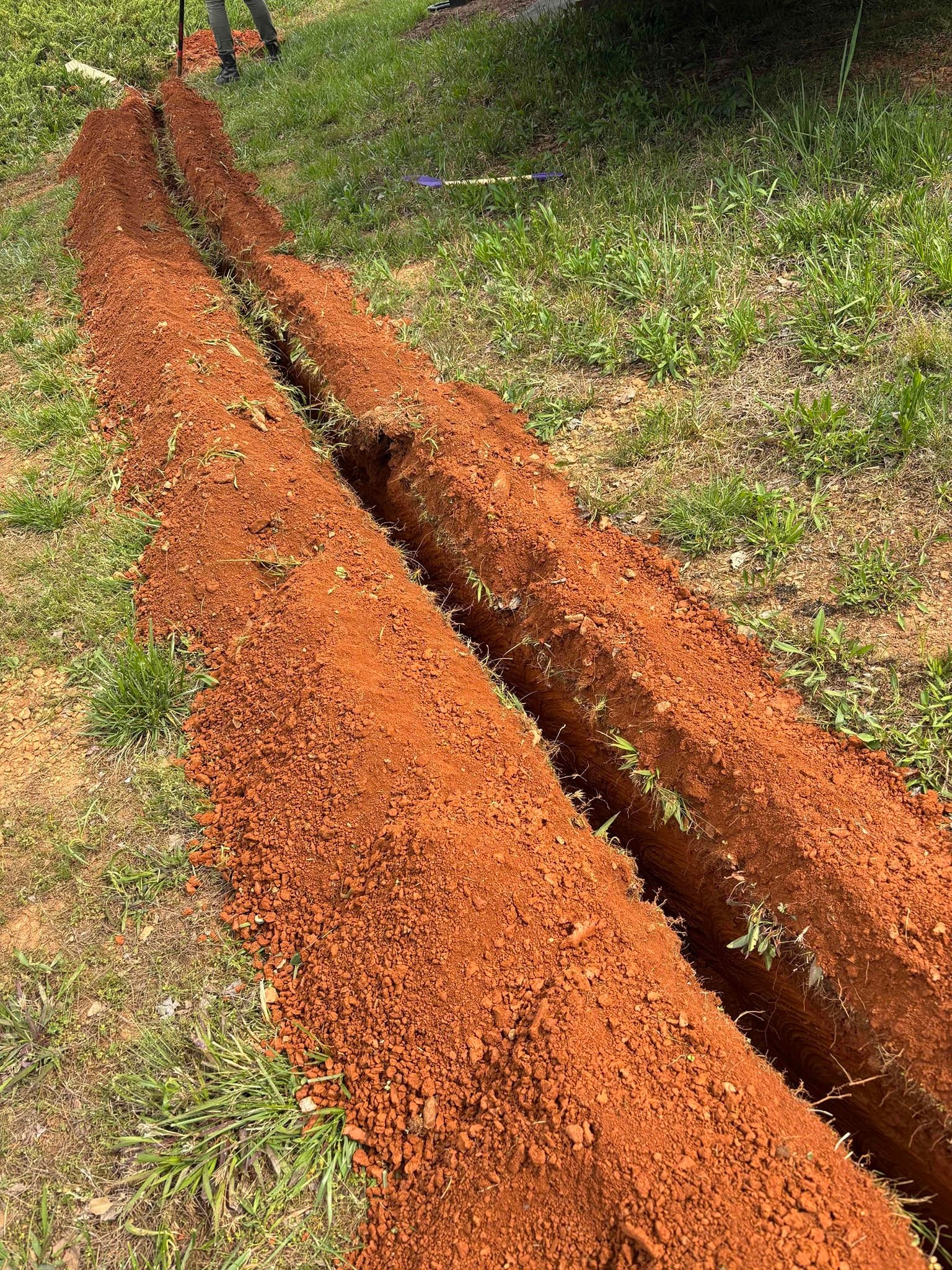

- Trenching: Excavated approximately 60 feet at a target depth of 18–24 inches to route the new electrical run to the RV parking area.
- Conductor run: Pulled approximately 70 feet of #6 THHN conductors to support the 50A load and help minimize voltage drop over the distance.
- Mounted receptacle post: Set a 4x4 wood post in concrete to create a sturdy, dedicated mounting location for the outdoor RV outlet.
- Outlet installation: Installed and terminated the 50A RV receptacle at the post, with neat, labeled routing from the panel to the pedestal.
- Crawl-space improvements: Added a keyless light in the crawl space for better visibility and installed a standard switch for user-friendly control.
- Routing solution: Performed a crawl diagnostic and extension to navigate structural constraints and reach the optimal outlet location.
Because the property already had incoming feeders and low-voltage lines in the ground, the crew trenched with extra care to protect existing utilities and maintain clear, well-documented routing.
Safety and installation considerations
Before any digging, homeowners should call 811 to have utilities marked. Trenching at 18–24 inches helps protect conductors from damage and supports long-term reliability. Our team verified secure terminations, proper grounding and bonding, and used outdoor-appropriate materials for weather resistance at the mounted post.
A dedicated 50A circuit ensures the RV outlet is isolated from household lighting and receptacle circuits, supporting stable power for high-demand equipment. Using appropriately sized conductors for the distance helps maintain performance when RV systems draw heavier loads.
Why homeowners choose Touchstone Electric for RV outlets
- Local expertise: Installed by our Charlotte team serving Catawba and surrounding communities from our Matthews branch.
- Clean, professional workmanship: Thoughtful routing, a solid post-mounted pedestal, and a tidy panel termination.
- Future-ready setup: A dedicated 50A connection supports most RVs and outdoor power needs without overloading existing circuits.
- Attention to detail: Added lighting and switching in the crawl space to improve access and serviceability.
Reviewed by our customer
Greg Harris praised our work on this RV outlet installation in Catawba. Read the Google review here: See Greg’s Google review.
Need a 50A RV outlet or outdoor receptacle in Catawba, NC?
Whether you are parking an RV, planning for a future camper, or need a durable outdoor power pedestal, Touchstone Electric can help. Our Outlets & Switches team handles everything from trenching and conductor runs to mounting posts, installing breakers, and finishing with a clean, labeled receptacle. We can also assist with practical add-ons—like crawl-space lighting and switching—while we’re onsite.
Contact Touchstone Electric to schedule an RV outlet installation in Catawba or the greater Charlotte area. Our Matthews-based branch will coordinate a convenient visit and deliver the same careful approach used on this project.
