Call 855-502-2244Project overview: Dedicated 20A circuit and GFCI quad outlet in Charlotte, NC
Our Charlotte branch, based out of Matthews, completed a clean, safe power upgrade for a home gym in Charlotte, NC. On December 9, 2025, technician Danny Bishop installed a dedicated 20‑amp circuit with 12/2 wiring, a GFCI‑protected quad outlet, and a 20A AFCI/GFCI breaker to reliably power exercise equipment for homeowner Dustin Seitz.
This service falls under our Outlets & Switches expertise and Outlet Installation & Repair solutions, providing the right combination of capacity and protection for high‑demand home equipment.
What we installed
- Dedicated 20‑amp circuit: Routed a new home‑run circuit sized for exercise equipment to prevent overloads and nuisance trips.
- 12/2 NM‑B Romex (approx. 50 ft): Quality copper wiring from the electrical panel to the exercise area.
- 3/4-inch PVC conduit (approx. 10 ft): Surface‑mounted with appropriate fittings and connectors for a neat, protected pathway where wiring needed extra physical protection.
- GFCI‑protected quad outlet: A four‑receptacle point to power multiple machines safely without extension cords.
- 20A AFCI/GFCI breaker: Dual protection installed at the panel to reduce the risk of arc‑fault events and ground‑fault shock hazards.
Together, these components deliver the right amperage for motors, plus layered protection that modern homes expect for safe, reliable operation.
Why a dedicated 20‑amp circuit is ideal for exercise equipment
- Reliable performance: Treadmills, ellipticals, rowers, and smart gyms draw higher startup current. A dedicated 20A line reduces dimming lights and breaker trips.
- Equipment longevity: Stable voltage helps protect sensitive electronics and motor controllers inside fitness machines.
- Safety first: GFCI helps protect against shock hazards, while AFCI reduces the risk associated with arcing faults.
- No more circuit conflicts: Keeps your gym on its own line so other household loads don’t interfere.
How we approach outlet installation and repair in Charlotte
As a local Outlets & Switches specialist serving Charlotte, NC, Touchstone Electric plans each circuit with load needs, routing, and protection in mind. For this home gym upgrade, our team:
- Mapped an efficient route from the panel to the exercise area for the new 20A home run.
- Used PVC conduit and proper fittings where added durability and clean surface mounting were beneficial.
- Installed and tested the GFCI protection so the quad outlet is safely fed.

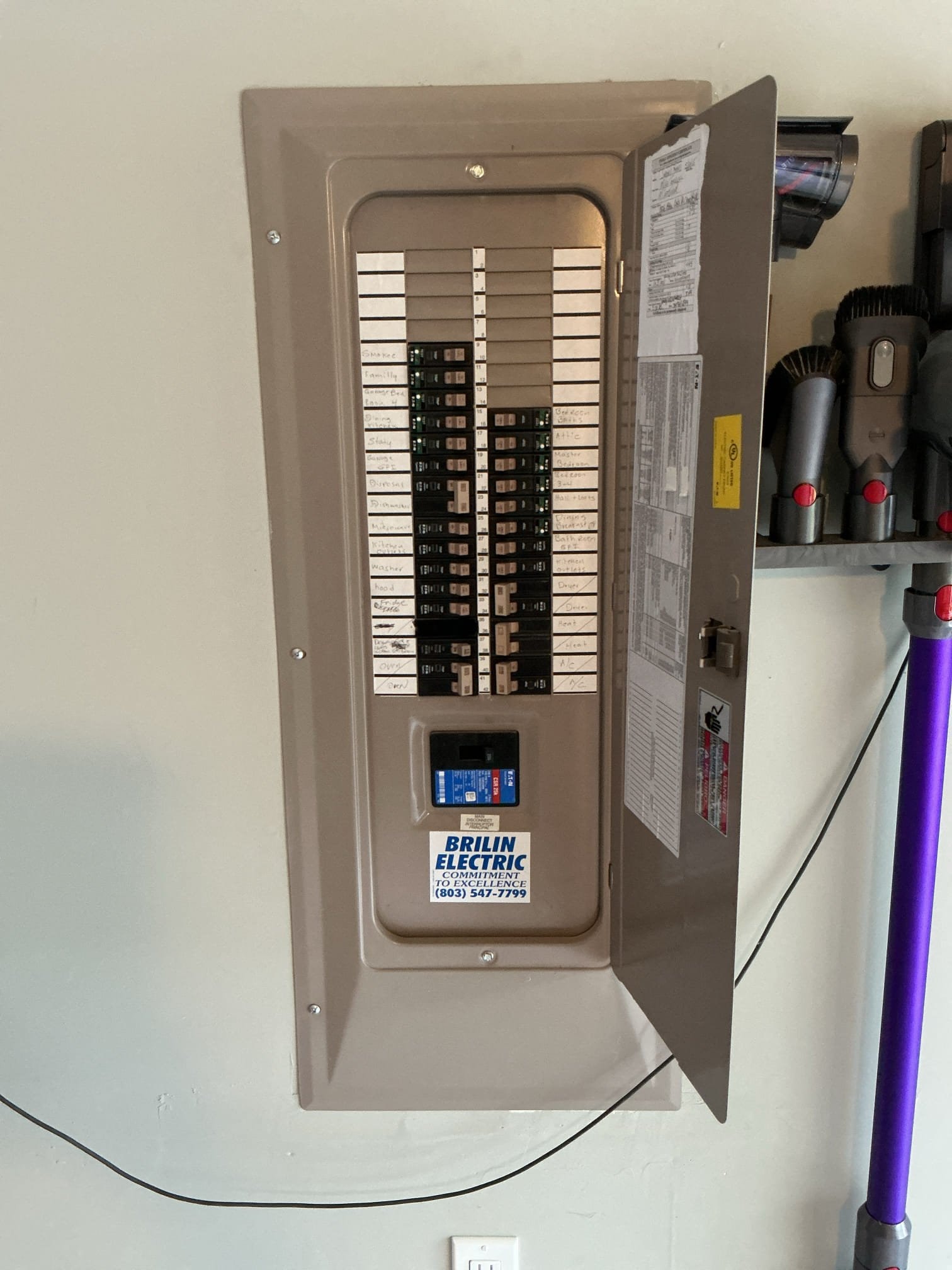

- Labeled the new 20A AFCI/GFCI breaker at the panel for clear identification.
- Verified correct polarity, grounding, and breaker function.
Whether you need a single quad outlet, tamper‑resistant receptacles, or a new dedicated line, our Charlotte team delivers tidy workmanship and dependable power where you need it.
Important note about AFCI/GFCI breaker upgrades
When adding combination AFCI/GFCI protection, existing wiring issues—such as shared neutrals or improper splices—can cause immediate tripping. If a preexisting condition is present, troubleshooting may require additional diagnostic time to isolate connections on the affected circuits. Our electricians handle this methodically to restore both safety and reliability.
Considering a similar upgrade in Charlotte?
- Dedicated 20A circuits for treadmills, ellipticals, rowers, and smart gym systems
- GFCI and AFCI protection upgrades at the panel or receptacle
- Quad outlets and clean conduit runs for garages, basements, and bonus rooms
- Outlet installation and repair for renovations and equipment changes
Touchstone Electric’s Charlotte branch is ready to help you plan the right outlet and circuit solution for your home. Tell us about your equipment and layout, and we’ll design a safe, code‑conscious installation that looks great and performs day after day.
Service details
Location: Charlotte, NC | Branch: Charlotte (Matthews) | Technician: Danny Bishop | Completion date: December 9, 2025 | Homeowner: Dustin Seitz
