Call 855-502-2244Dedicated 20-Amp GFCI Circuits Installed in Mooresville
Touchstone Electric completed a dedicated circuit installation in Mooresville for I&R Waterproofing. The project included two separate 20-amp GFCI-protected circuits: one intended to serve a dehumidifier and one intended to serve a sump pump. Dedicated circuits help provide dependable power for essential equipment by giving each unit its own electrical supply.
Dehumidifiers and sump pumps can play an important role in managing moisture, particularly in basement, crawl space, and other damp-prone areas. A properly planned dedicated circuit can help support the electrical demands of this equipment without sharing power with unrelated outlets or appliances.
Two Separate Circuits for Moisture-Control Equipment

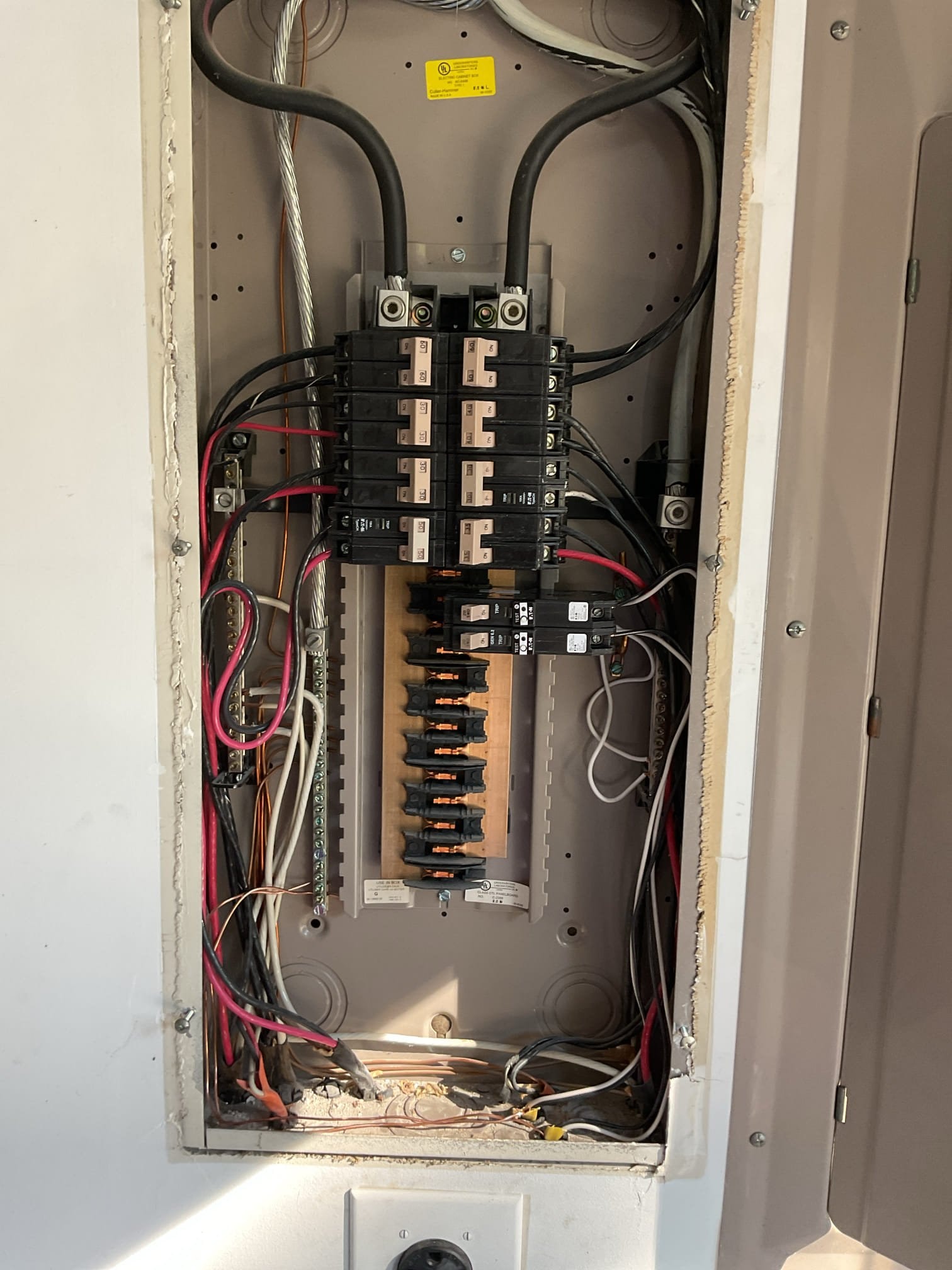

For this Mooresville electrical service, our team installed two 20-amp GFCI breakers and ran 12/2 NM-B Romex wiring for the new circuit pathways. One circuit was designated for the dehumidifier, while the second circuit was designated for the sump pump.
GFCI protection is commonly used where electrical equipment may be exposed to moisture or damp conditions. This type of protection is especially relevant for circuits serving equipment in areas such as basements, crawl spaces, garages, laundry areas, exterior locations, and similar spaces.
- Installed two dedicated 20-amp circuits
- Provided GFCI breaker protection for both circuits
- Installed approximately 80 feet of 12/2 NM-B Romex wiring
- Designated one circuit for a dehumidifier
- Designated one circuit for a sump pump
- Included electrical permit administration for the project
Electrical Permit Administration Included
Electrical permit administration was included with this dedicated circuit installation. Permitting can be an important part of electrical work because requirements may vary by jurisdiction and by the scope of a project. The included permit service applied to the electrical permit for this work.
Some projects may require additional approvals outside of an electrical permit, depending on local requirements. Examples can include zoning, historic preservation, environmental, septic, builder, or other non-electrical permits. When additional permits are needed, they are handled separately from the electrical permit process.
Why Dedicated Circuits Matter
A dedicated circuit is designed to supply power to one specific appliance or piece of equipment. For a sump pump or dehumidifier, this can help avoid the inconvenience of sharing a circuit with other devices that may add to the electrical load. A dedicated circuit also makes it easier to identify the power source for the connected equipment when service, maintenance, or troubleshooting is needed.
At Touchstone Electric, our Charlotte team provides residential electrical services throughout the Mooresville service area, including outlet and circuit-related work. Whether you need power for moisture-control equipment, an appliance, a garage, an outdoor receptacle, or another electrical need, our electricians can help evaluate the work required and install the appropriate circuit components.
Schedule Outlet and Circuit Service in Mooresville
If you need a new dedicated circuit, GFCI protection, or outlet-related electrical service in Mooresville, Touchstone Electric is ready to help. Our team can assist with circuit installations and repairs that support the power needs of your home’s equipment and living spaces.
