Dedicated 120V Infrared Sauna Circuit Installation in Waxhaw, NC

Infrared Sauna Circuit Installation in Waxhaw, NC

Date completed: July 6, 2026

Our Charlotte team, operating from the Matthews branch, completed a specialty infrared sauna power upgrade for homeowner Christian Grattan in Waxhaw, NC. The project involved installing a dedicated 120V/20A GFCI-protected circuit to safely and reliably power a new infrared sauna. This service falls under our Specialty offerings with additional expertise in Pool & Hot Tub Electrical.

What We Installed

To deliver safe, code-compliant power to the sauna, our licensed electricians designed and installed a dedicated run from the home’s main panel. The route utilized protective conduit outdoors and clean wire transitions into the attic and finished space.

• Dedicated 120V/20A circuit: Sized specifically for infrared sauna electrical loads, keeping the sauna on its own protected branch for stable performance.
• 20A GFCI breaker: Ground-fault protection at the source provides an extra layer of safety for equipment and occupants.
• PVC conduit (1/2"): Used where required for mechanical protection and a neat, durable exterior run into the attic space.
• UF-B 12/2 cable: Exterior-rated cable suitable for exposure to moisture or sunlight along the outdoor segment of the route, installed per code.
• NM-B 12/2 cable: Transitioned to indoor-rated cable for attic and interior pathways, with junction boxes included where needed.
• Standard receptacle: Installed at the designated sauna location, complete with cover and tested for correct polarity and grounding.

Technicians on site included Alex Bishop, Logan Day, and Mark Alaev, with an electrical assistant providing additional support to expedite the project.

Clean Routing and Minimal Disruption

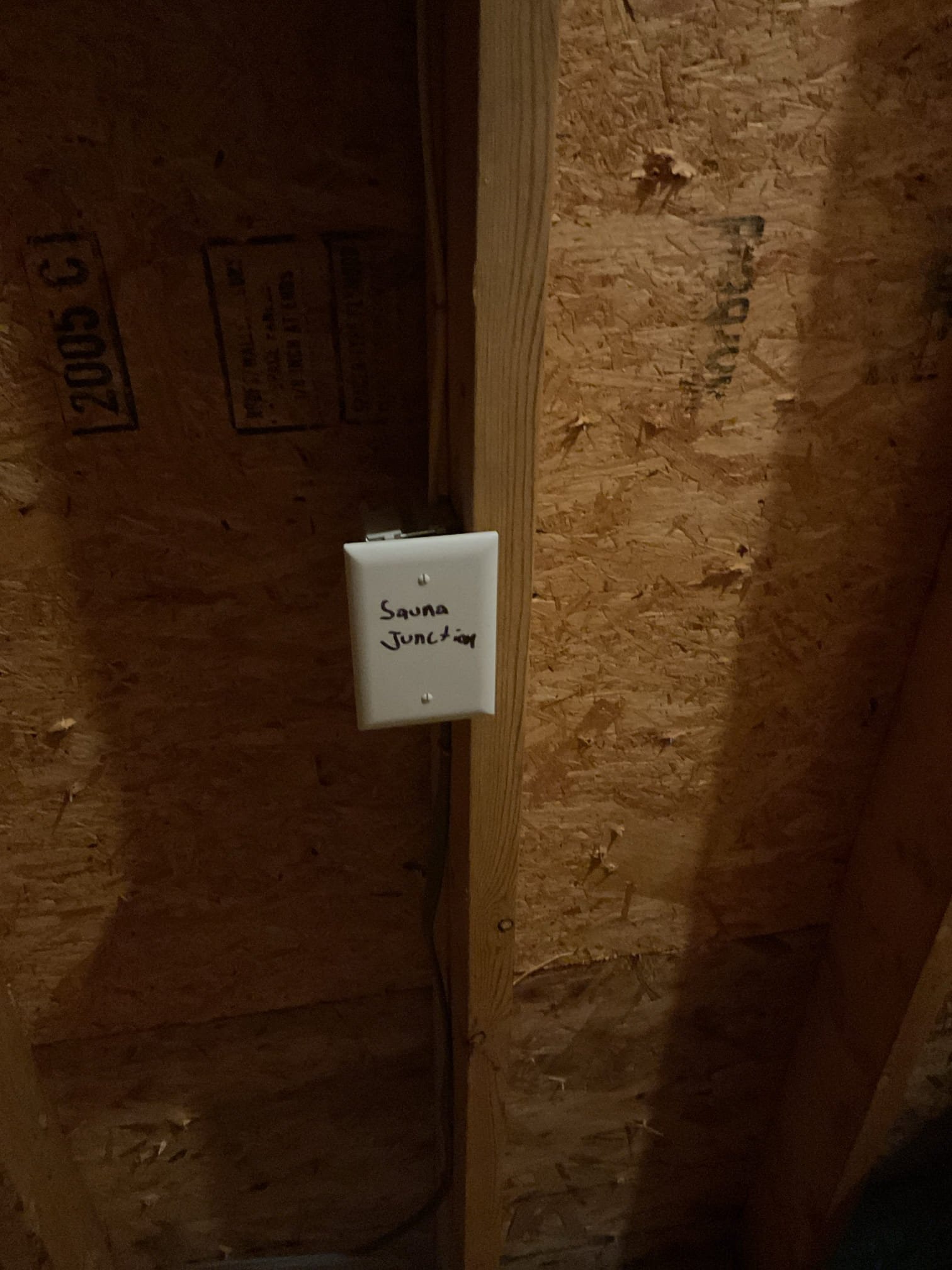

The new circuit was pulled from the main service panel outside the home, routed in conduit up into the attic, and fished down to the precise point where the sauna will be installed. To properly fish the wire to the finished location, small drywall cuts were required. Touchstone Electric is not responsible for drywall repair, and we clearly communicate this upfront so homeowners can plan cosmetic touch-ups at their convenience.

Permits, Safety, and Code Compliance

An electrical permit was included and filed for this Waxhaw project. Our team follows North Carolina electrical code and manufacturer guidelines for sauna wiring, including proper circuit sizing, grounding, and GFCI protection.

• GFCI-protected circuit: Enhances safety on a moisture-adjacent application like a sauna.
• Correct cable types: UF-B for exterior exposure as needed and NM-B indoors, with secure transitions in accessible junction boxes.
• Neat terminations: Labeled at the panel and receptacle, verified with testing before completion.

Permit scope note: The included permit covers electrical work only. If a project requires non-electrical permits (such as Historic Preservation, Environmental/Septic, Zoning, or Builder-related permits), those are not included. If additional permits are identified, we inform homeowners about next steps and can provide pricing for processing those filings as needed.

Why Waxhaw Homeowners Choose Touchstone Electric

• Local expertise: Serving Waxhaw and the surrounding area from our Matthews branch within the Charlotte service region.
• Specialty installations: Experience with infrared saunas, spas, and other pool and hot tub electrical projects.
• Transparent process: Clear scope, permits handled, and careful routing to protect your home’s finishes as much as possible.
• Skilled team: Work completed by trained electricians familiar with dedicated circuits and GFCI-protected applications.

Thinking About a Sauna in Waxhaw?

If you’re adding an infrared sauna or upgrading spa equipment, a properly sized, GFCI-protected dedicated circuit is essential. Touchstone Electric provides design, permitting, and installation tailored to your equipment requirements and home layout—delivered by a friendly, local team you can trust.

Contact our Charlotte team in Matthews to schedule your consultation and get a safe, code-compliant sauna circuit installed the right way the first time.
