Professional NEMA 14-50 Outlet Installation in Concord

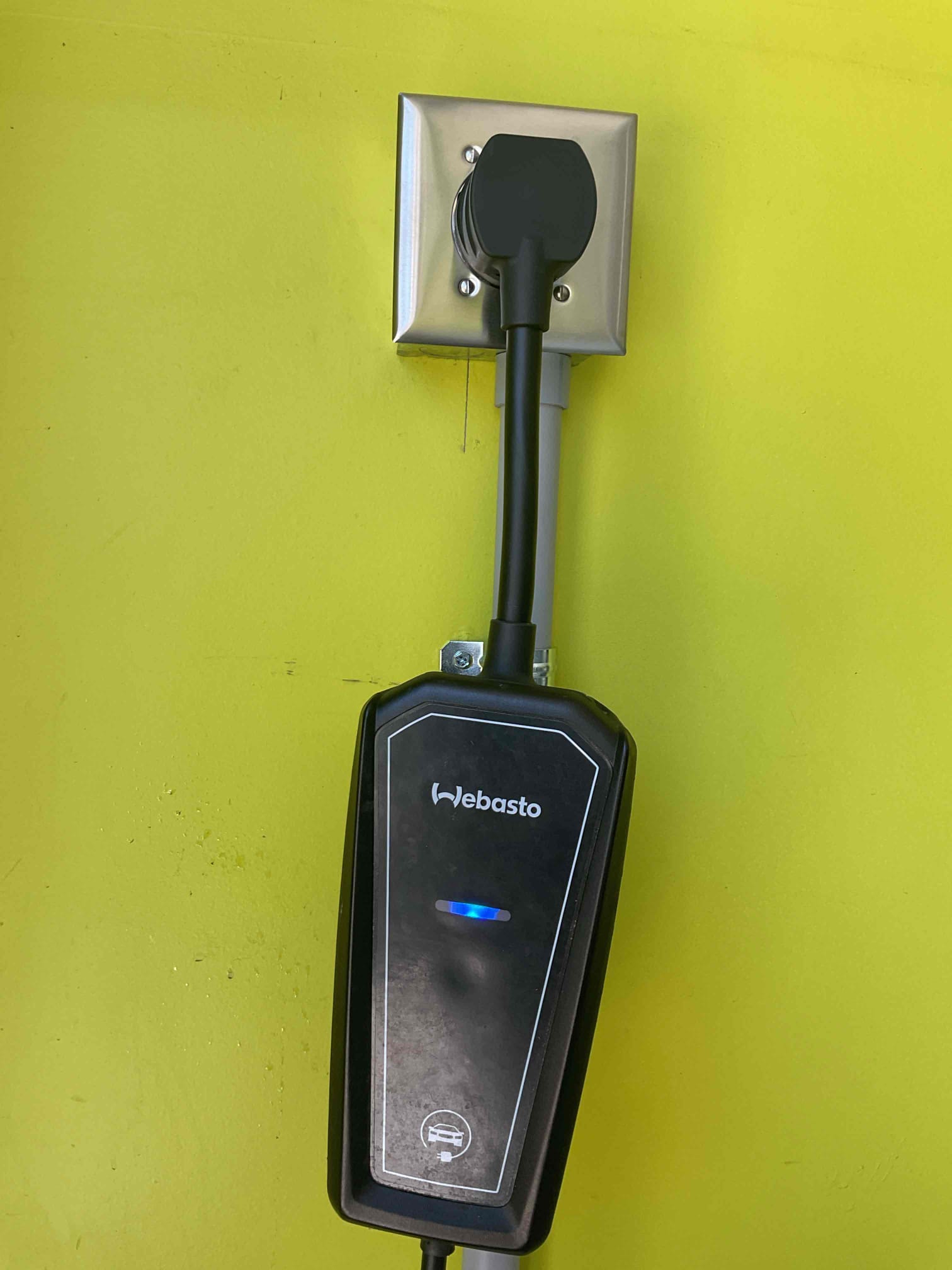

Touchstone Electric’s Charlotte branch completed a code-compliant Level 2 EV charging outlet for homeowner Ronak Patel in Concord. Led by technician Mark Alaev, our team installed a NEMA 14-50 receptacle on the left wall of the garage, positioned about 13 feet from the electrical panel for convenient charging access and a clean, professional look.
This project was scheduled and completed with a filed electrical permit and careful attention to National Electrical Code practices for a safe, reliable 240V charging solution.
What We Installed
- NEMA 14-50 receptacle for Level 2 EV charging (240V)
- Dedicated 50A double-pole breaker in the service panel
- 6/3 NM-B copper wiring (sized for a 50-amp circuit)
- 1-inch PVC conduit with proper connectors and supports for a clean, protected run
- Neatly mounted box and cover plate on the garage’s left wall, approximately 13 ft from the panel
Routing the circuit in conduit protects the conductors along the garage wall and keeps the installation tidy and durable. The NEMA 14-50 configuration is widely compatible with many EV portable chargers and adapters; always follow your vehicle manufacturer’s charging recommendations.
Built for Speed, Safety, and Convenience
A 50-amp, 240-volt circuit provides the backbone for Level 2 home charging, delivering faster, more convenient charging than a standard 120V outlet. For many homeowners, a NEMA 14-50 receptacle offers flexibility: plug in a compatible mobile EVSE today, or upgrade to a hardwired wall charger later if your needs change.
- Faster charging than Level 1 (120V)
- Flexible setup works with many portable EV chargers
- Dedicated circuit helps ensure reliable performance
Permits and Code Compliance
We filed the electrical permit with the county for this Concord installation and completed the work to current electrical code standards. Proper permitting helps safeguard your home, maintains documentation for future real estate transactions, and supports a smooth inspection process.
Permit note: The included permit covers the electrical scope only. If a project requires additional non-electrical approvals (such as Historic Preservation, Environmental/Septic, Zoning, or Builder permits), those are not included. If other permits are needed, we’ll advise you on what to handle and can provide pricing to process additional non-electrical permits upon request.
Local Concord EV Charging Specialists
From our Charlotte team based in Matthews, Touchstone Electric serves homeowners across Concord with turnkey EV charging solutions. Whether you need a NEMA 14-50 outlet or a dedicated hardwired Level 2 charger, we size circuits correctly, select the right materials, and install to code for long-term safety and performance.
Your Technician
This job was completed by Mark Alaev on August 17, 2026. Mark ensured a clean conduit run, secure terminations, and a neat receptacle placement for easy day-to-day charging in the garage.
Customer Feedback
Ronak Patel praised our work on this Concord EV outlet installation. Read their review here: Google Review
Thinking About a Level 2 Charger in Concord?
If you’re ready to add a NEMA 14-50 outlet or a hardwired Level 2 EV charger, our Charlotte branch can help you choose the right circuit size, placement, and equipment for your vehicle and garage layout. Contact Touchstone Electric to schedule a visit and get a clear, code-compliant plan for EV charging at home.
