200A Meter Base & Main Panel Replacement in Charlotte, NC
Our Charlotte team from the Matthews branch completed a comprehensive meter base and service upgrade for homeowner Jeanette Branch Mullen in Charlotte, NC. Led by technician Christian Cedillos, this project restored safe, reliable power by replacing outdated service equipment, updating breakers, and bringing the electrical system up to current code. The work was completed on November 2, 2024, with permits and inspection coordinated start to finish.
What We Upgraded
To meet present-day safety standards and prepare the home for inspection and utility reconnection, we installed and configured the following:
- New 200A Meter Base — Included scheduling the power drop with the utility, pulling permits, setting a new meter, and installing ground rods with grounding electrode conductors.

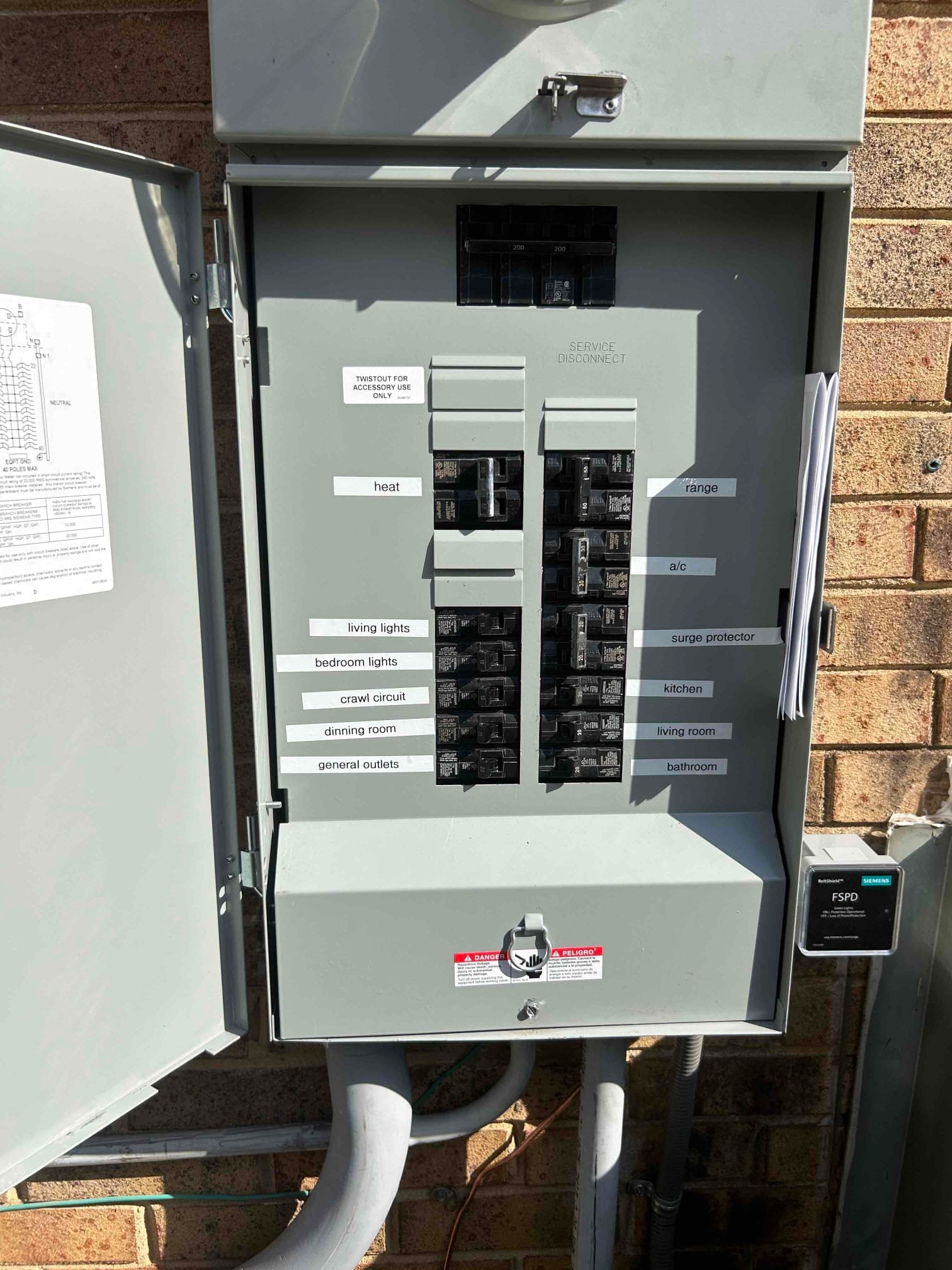

- Outdoor 200A Aluminum Main Panel — Brought the service equipment to current code, grounded and bonded the panel, reconnected the service entrance conductors, and relabeled circuits for clarity.
- PVC Conduit — 2-inch PVC conduit (8 feet) with appropriate connectors and fittings for a clean, durable installation.
- Service/Feeder Conductors — 11 feet of 4/0 THHN conductors to ensure proper ampacity and long-term performance.
- Breaker Updates — Installed a balanced mix of standard breakers to support common household loads:
- 3 × 50A standard breakers (e.g., range, heat equipment, EV charger, or subpanel)
- 4 × 20A standard breakers for general and small appliance circuits
- 6 × 15A standard breakers for lighting and standard branch circuits
For customer convenience, we can make a generator available during the temporary outage window upon request.
Code Compliance, Safety, and Inspection
Touchstone Electric handled permitting and inspection to ensure a smooth process from shut-down to final approval. As authorities continue adopting newer code cycles (such as NEC 2020), inspectors may require AFCI protection on certain circuits. In some homes this can reveal pre-existing wiring issues (for example, shared neutrals) that require diagnostic time to correct. Our team prepares homeowners for these possibilities and resolves them the right way.
As part of the panel upgrade, this installation included whole-home surge protection with a $10k warranty, plus a 20-year transferable panel warranty for added peace of mind.
Platinum Home Safety Membership Included
The project came with our PLATINUM Home Safety Membership, which begins with a detailed electrical safety inspection and ongoing homeowner perks:
- Comprehensive panel inspection, voltage readings, and bus bar evaluation
- Verification of grounding/bonding, meter base condition, and service equipment
- Testing of GFCIs and key home safety systems (surge protection, disconnects, smoke/CO devices)
- Battery replacements for smoke detectors (standard ceiling heights)
- Upgraded 8-year warranty on all work performed by Touchstone Electric
- Member savings on services and $0 dispatch/diagnostics during membership
Local Pros Serving Charlotte
If you need a 200A meter base replacement, an outdoor main panel upgrade, or a service replacement anywhere in the Charlotte, NC area, our Matthews-based Charlotte branch is ready to help. We plan outages, coordinate with the utility, manage permits and inspections, and complete clean, code-compliant installations that pass inspection and protect your home.
Customer Review
We’re grateful that Jeanette Branch Mullen praised our work. Read the review on Google: View Customer Review
