Call 855-502-2244Failed Inspection Code Corrections in Charlotte, NC
Touchstone Electric’s Charlotte team completed a comprehensive set of electrical repairs and code corrections for Focht Pro Builders after a failed inspection in a Charlotte residence. Led by technician Danny Bishop, our crew methodically resolved safety and code issues so the installation is ready for re-inspection and ongoing safe operation.
Completion date: September 18, 2025 | Branch: Charlotte (Matthews) | Category: Electrical Repairs & Troubleshooting
What Caused the Failed Inspection
During the inspection, several items were flagged for not meeting electrical code and best practices. The most critical concerns included:

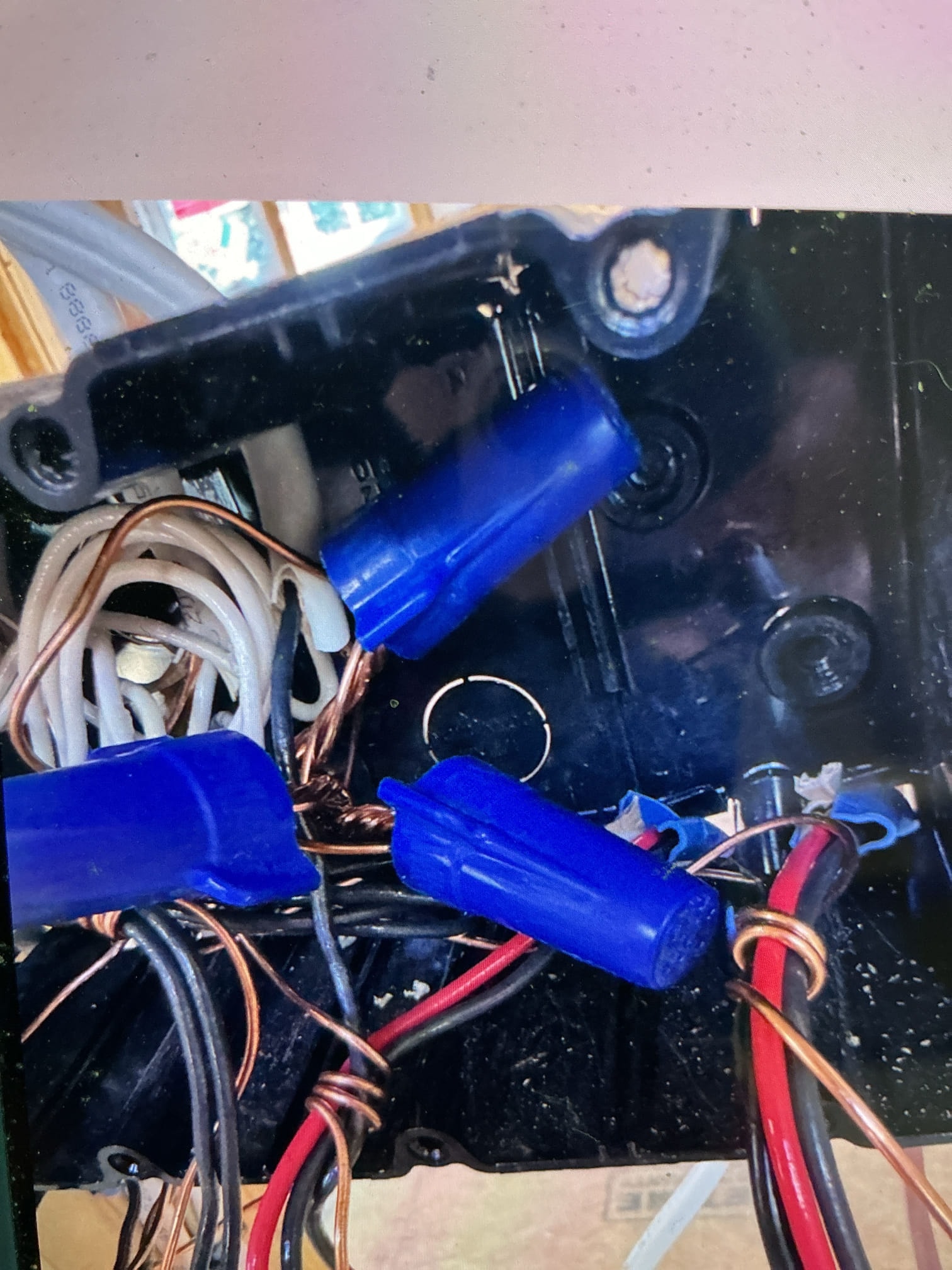

- Overloaded wire nuts at the kitchen switch bank — Blue wire connectors were found with more conductors than their listed capacity allows (notably multiple 14 AWG conductors in a single connector).
- Grounds not tied in junction boxes — Equipment grounding conductors were not properly bonded together, risking continuity of the grounding path.
- Circuits not secured within 8 inches of boxes — Cables entering boxes lacked required staples or straps, allowing movement that can loosen terminations over time.
- Missing nail plate — A protective plate was not installed where wiring passes through framing, leaving the cable vulnerable to fastener damage.
- Attic boxes not made up / improper terminations — Open splices and incomplete terminations created both safety and reliability concerns.
Left uncorrected, these issues can lead to overheating, nuisance tripping, or shock hazards. Our priority was to bring each item into compliance with current code requirements observed in Charlotte, NC.
How We Corrected the Deficiencies
- Reworked kitchen switch bank splices — Removed overloaded wire nuts, separated conductors into properly sized groups, and used listed connectors matched to conductor count and gauge.
- Bonded all grounds — Tied equipment grounding conductors together with listed connectors and added device pigtails as needed to ensure a continuous, low-impedance path.
- Secured NM cables — Installed staples and straps so conductors are secured within approximately 8 inches of each box and supported per code.
- Installed a steel nail plate — Protected cables at the framed penetration to prevent future nail or screw damage during drywall or cabinet work.
- Completed attic terminations — Properly made up junction boxes with secure splices, correct conductor lengths, and listed covers; removed any improper terminations.
- Verification and cleanup — Checked polarity, continuity, and device function, labeled as appropriate, and readied the installation for re-inspection.
All work was performed by Danny Bishop and aligned with nationally recognized standards and local requirements followed in the Charlotte area.
Why Charlotte Homeowners and Builders Choose Touchstone Electric
- Local expertise — Our Matthews-based branch serves Charlotte, NC with fast, knowledgeable troubleshooting and repairs.
- Code-first approach — We correct the root cause, not just the symptom, prioritizing safety, clarity, and long-term reliability.
- Transparent process — Clear findings, clear fixes, and jobsite-ready solutions that position your project for a smooth re-inspection.
Whether you are addressing a failed inspection or need a pro to verify safe, code-compliant installations before the inspector arrives, Touchstone Electric is ready to help.
Need Electrical Code Corrections in Charlotte?
If your project in Charlotte, NC requires electrical repairs or inspection corrections, our Charlotte team can assess, prioritize, and fix issues efficiently. From overloaded connectors and unsecured circuits to grounding and protection details, we bring installations up to code with workmanship you can trust.
Contact Touchstone Electric to schedule an inspection and repair visit with a licensed technician.
Project Snapshot
- Location: Charlotte, NC
- Customer: Focht Pro Builders
- Completed: September 18, 2025
- Technician: Danny Bishop
- Service: Electrical Repairs & Troubleshooting
- Branch: Charlotte (Matthews)
