Reliable 200A Panel Upgrade and Subpanel Installation in Charlotte, NC
Our Charlotte team completed a comprehensive service upgrade for homeowner Alex Dean, delivering safe, code-ready power for today’s household demands. Led by technician Grady Houston, this project included a new 200A meter/panel combo, a properly sized outdoor subpanel, targeted breaker upgrades, and refreshed devices to prepare the home for inspection and long-term reliability.
Completed on December 31, 2024, this job was performed by Touchstone Electric’s Charlotte unit from our Matthews branch, serving the greater Charlotte, NC area.
Scope of Work
To bring the service up to modern standards and enhance safety, our crew installed and adjusted the following components:
- 200A Meter/Panel Combo: Coordinated permit approvals and the utility power drop; installed new meter/panel combo with ground rods and grounding electrode conductors.
- Outdoor Midsized Subpanel (12/24, up to 125A): Added capacity for present and future circuits.
- Main and Branch Breakers: 100A 2-pole feeder for the subpanel; 50A standard for heavy loads (range, heater/furnace, small subpanel, or EV-ready capacity); 30A 2-pole for dedicated equipment; 20A GFCI breaker for required areas; 20A standard; and four 15A standard breakers for general lighting and branch circuits.

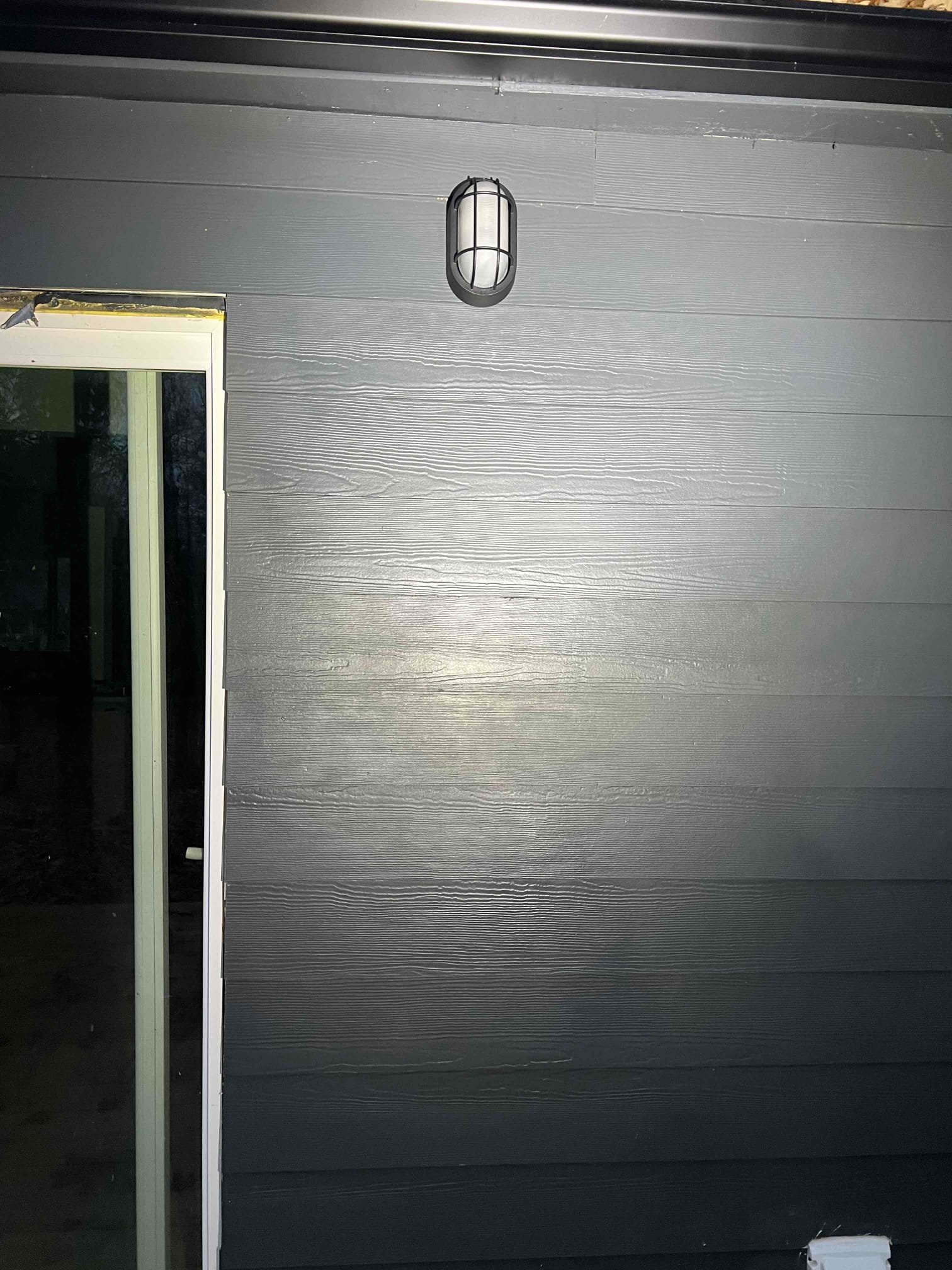

- Device Upgrades: Kitchen standard receptacle; GFCI receptacle where required; weatherproof bubble cover for an exterior outlet; replacement of the back-door light switch.
- Custom Electrical Task: Relocated wiring and installed a junction box for the garage light to clean up the layout and support safe maintenance.
- Appliance Hookup: Connected a customer-supplied major appliance with either a proper receptacle or hard-wired termination as appropriate.
- Crawl Space Tune-Up: Sealed penetrations and the panel area in the crawl space to help minimize moisture and pest intrusion and support electrical system longevity.
Why This Upgrade Matters
A 200A service equips Charlotte homes for today’s power needs—HVAC, EV chargers, upgraded kitchens, and dedicated equipment—without overloading older infrastructure. By adding the outdoor subpanel and right-sizing breakers, we improved circuit organization, made future additions easier, and enhanced safety for everyday use.
In line with current inspection practices, we prepared the system for NEC 2020 requirements. Inspectors may call for AFCI upgrades on certain circuits; when AFCI protection is added, existing wiring conditions—like shared neutrals—can cause immediate tripping and require troubleshooting. Our team is experienced in identifying and resolving those issues so your home stays safe and code-compliant.
Our Process for Panels & Service Upgrades
Touchstone Electric handles the logistics from start to finish—securing permits, scheduling the utility shut-off/turn-on, and installing grounding components correctly. We label circuits clearly, verify terminations, and test new devices so you have a clean, dependable result. For planned outages, we can also discuss temporary power options upon request.
This project falls under our primary category of Panels & Service Upgrades and our secondary category of Electrical Panel Upgrades, reflecting our focus on safe capacity increases and modern protective devices for Charlotte homeowners.
Local Expertise in Charlotte, NC
Whether you need a full service replacement, a subpanel for additions, or targeted breaker and device updates, our Charlotte team delivers neat workmanship and inspection-ready results. We proudly serve homeowners across the Charlotte, NC area from our Matthews branch with prompt scheduling, clear communication, and thorough documentation for your records.
Customer Feedback
Homeowner Alex Dean praised our work with a review. Read it here: Google Review
