Project overview: Chapel Hill electrical panel replacement and service upgrade
Touchstone Electric’s Raleigh branch completed a comprehensive 200‑amp electrical panel replacement and full service upgrade in Chapel Hill, NC for Ground Works - Raleigh. Led by technician Jared Mata, this permitted project modernized the home’s main service equipment, enhanced surge protection, and improved grounding for safety and code compliance.
Service categories: Panels & Service Upgrades and Electrical Panel Upgrades. Date of completion: December 31, 2025.
Scope of work and key upgrades
- Permitting and inspections: We secured the electrical permit and coordinated inspections in Chapel Hill.

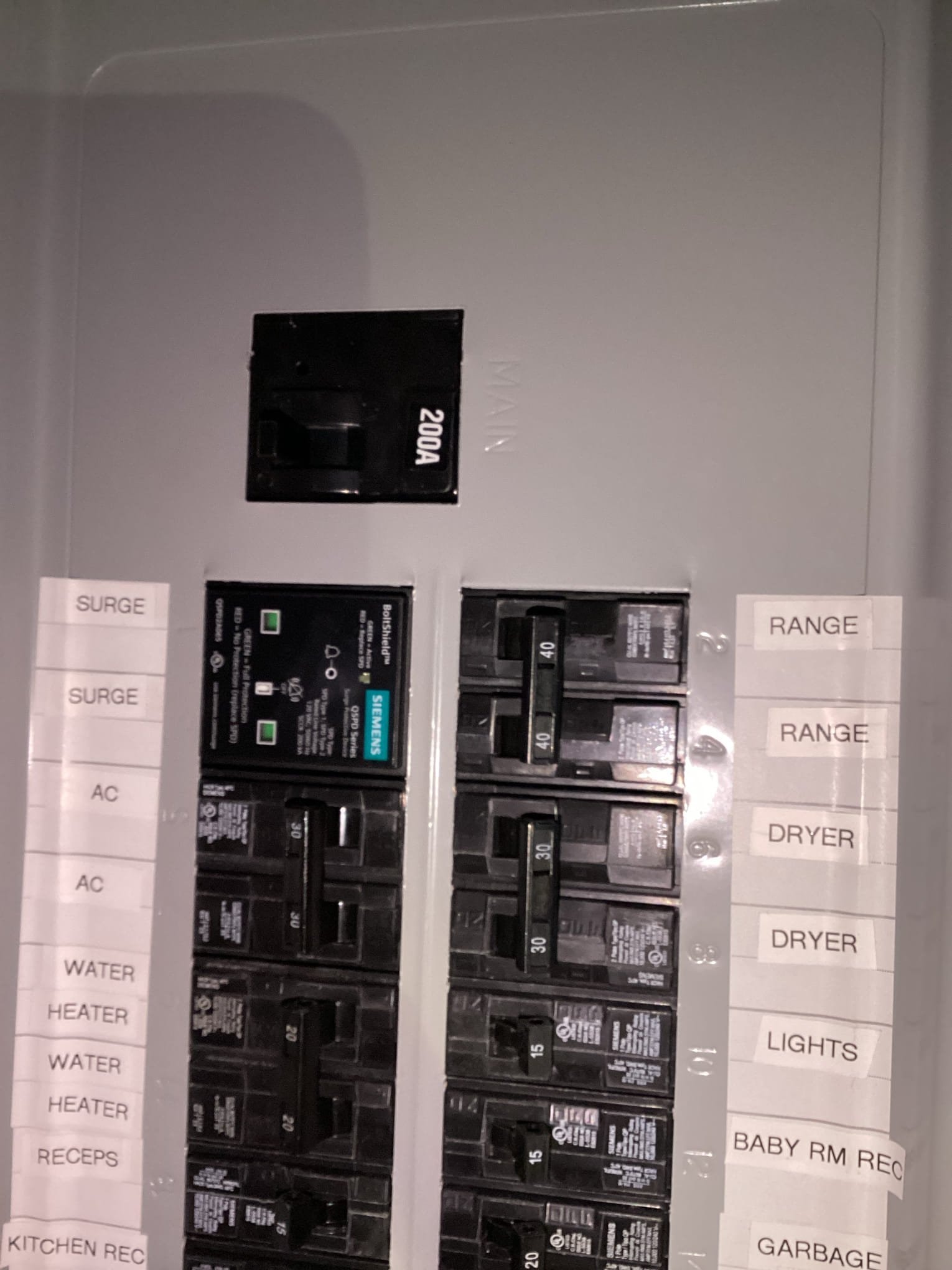

- 200A main panel replacement (indoor): Installed a new aluminum‑bus main panel brought to current electrical code, with grounding and bonding verified. All existing circuits were reconnected and the new panel was clearly labeled. The panel includes a 20‑year transferable warranty.
- New breakers installed: 1× 40A standard, 2× 30A double‑pole, 10× 20A, and 6× 15A breakers to match circuit requirements and improve reliability.
- Whole‑home surge protection: Installed a system at the main panel with a $10k / 3‑year warranty on covered equipment in the unlikely event of protector failure, helping shield appliances and electronics from power surges.
- Service upgrade with new meter base (200A): Replaced the meter base and coordinated the utility power drop. Included a new riser with weatherhead, IMC conduit, and SEU 4/0 service cable sized for the 200A service.
- Conduit and conductors: Added approximately 10 feet of 2″ PVC with fittings and LBs, and SEU 4/0 cable for safe, code‑compliant service conductors.
- Grounding system upgrade: Drove a new ground rod and installed a continuous grounding electrode conductor back to the main service panel to improve fault clearing and lightning dissipation.
- Power coordination: Power was safely disconnected during the changeover; a generator was made available for limited usage during the outage upon request.
Every step was completed to meet current code requirements and to position the home for future electrical needs such as EV charging, HVAC upgrades, or additional circuits.
Safety, reliability, and surge protection benefits
The upgraded 200A service and new panel provide greater capacity and a safer foundation for the home’s electrical system. The whole‑home surge protector diverts excess voltage to ground, helping guard sensitive electronics and hard‑wired appliances from grid fluctuations and lightning‑related surges. Routine surges can quietly degrade equipment over time; this installation helps extend equipment life while adding the assurance of a $10k/3‑year warranty on covered equipment.
Code notes for Chapel Hill homeowners
As local inspectors continue implementing NEC 2020 requirements, certain circuits may require AFCI breakers. In some homes, installing AFCI protection can expose pre‑existing wiring conditions (such as shared neutrals) that cause immediate tripping and may require diagnostic time to correct. Our team communicates these possibilities up front so homeowners understand potential next steps if AFCI upgrades are requested by the inspector.
Why choose Touchstone Electric in Chapel Hill
- Local expertise: Completed by our Raleigh branch serving Chapel Hill, NC.
- Craftsmanship guaranteed: Signature Lifetime Craftsmanship Warranty included.
- Permit‑ready and inspection‑ready: We handle the paperwork and coordinate utility scheduling.
- Clear labeling and future‑ready capacity: Organized panels and thoughtful planning for future circuits.
- Professional installation: Led by technician Jared Mata with additional wireman support for an efficient, clean installation.
Customer feedback
Ground Works - Raleigh praised our team with a review. Read it on Google: View the customer review
