Reliable Battery Backup Transfer Panel and Subpanel Installation in Lewisville, NC

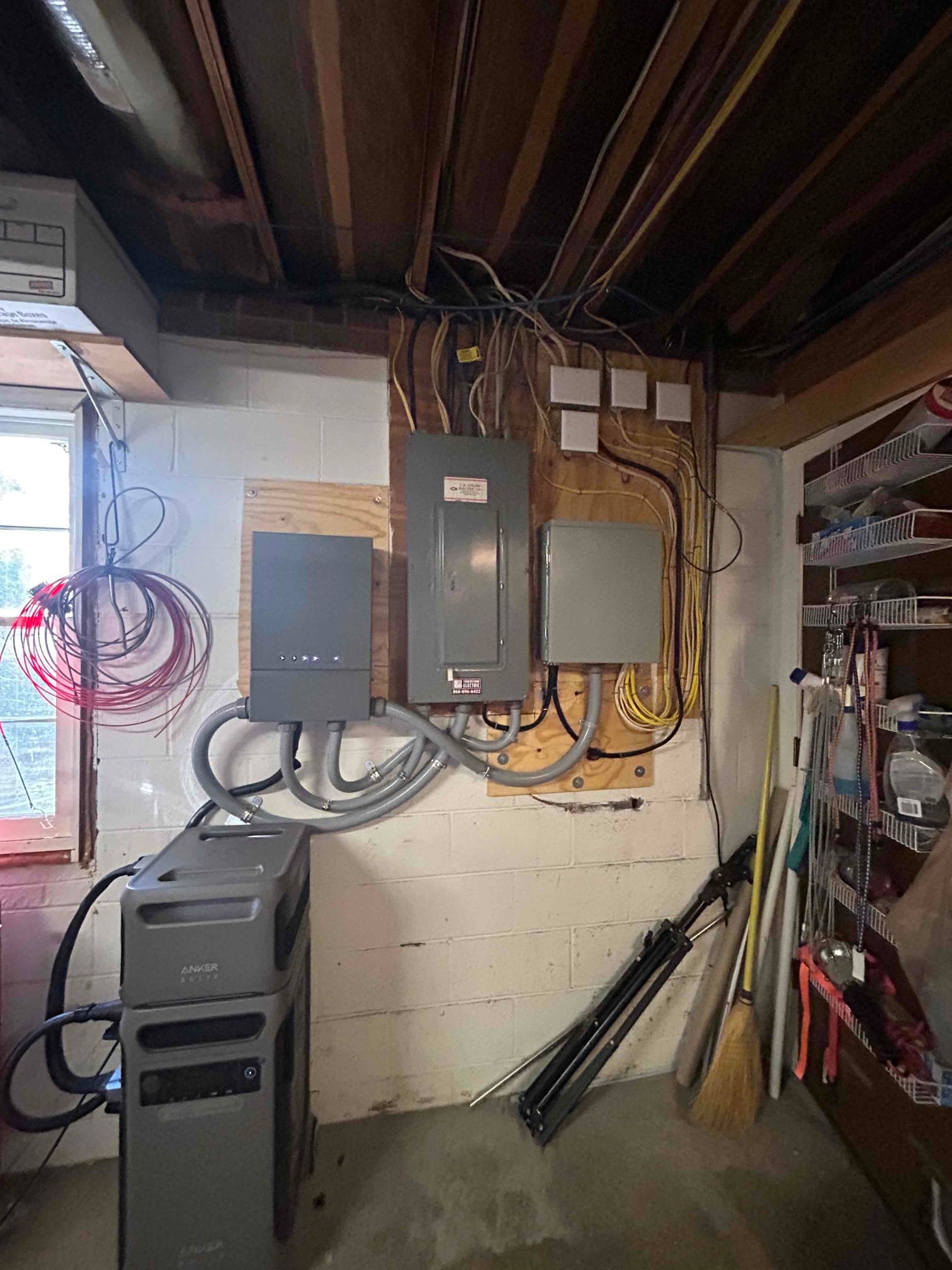

Touchstone Electric’s Matthews-based Charlotte team completed a clean, code-compliant installation of a customer-supplied transfer panel and new subpanel for John Jackman in Lewisville, NC. Led by technician Christian Cedillos, this project ensures selected home circuits can operate on battery backup during a utility outage, with safe, seamless switching thanks to an automatic transfer switch. Completed on October 11, 2024, the work falls under our Panels & Service Upgrades and Subpanel Installation services.
What We Installed
- Customer-supplied transfer panel configured with dedicated backup circuits for essential loads.
- New subpanel to organize backup and non-backup circuits for straightforward maintenance and expansion.
- Automatic transfer switch (ATS) for hands-free switchover between utility power and battery backup.
- Circuit extensions: 130 ft of NM-B 14/2 for general-purpose and lighting circuits, and 15 ft of NM-B 10/3 for 240V, 30-amp branch circuits.
- Breakers installed: four 15-amp standard breakers for branch circuits and lighting, one 30-amp double-pole breaker for 240V loads, and one 40-amp standard breaker for higher-demand circuits as applicable.
- Electrical permit filed with the county to ensure the work meets local requirements and inspection standards.
Every connection was neatly routed, labeled, and tested to verify correct operation on both utility power and battery backup.
Why This Setup Matters for Your Home
- Outage readiness: Keeps key lighting, outlets, and selected 120/240V circuits energized when the grid goes down.
- Safety and compliance: Proper isolation prevents backfeeding and supports inspection-ready installations.
- Load management: A dedicated subpanel and ATS simplify choosing and balancing which circuits receive backup power.
- Future flexibility: Labeled, organized panels make it easier to add or adjust circuits as your needs evolve.
Our Process in Lewisville
- Assessment and planning: We identified essential circuits for backup and confirmed panel locations and capacity.
- Installation: The transfer panel and subpanel were mounted and connected with properly sized conductors and listed components.
- Circuit extensions: New home runs were added using NM-B 14/2 and 10/3 where needed, with tidy routing and secure terminations.
- System integration: The ATS was wired to manage automatic switchover between utility and battery power.
- Testing and verification: We tested normal and backup modes to confirm safe operation before walkthrough and inspection.
Permitting and Local Requirements
For this project, Touchstone Electric secured the electrical permit with the county. Some jurisdictions may require additional non-electrical permits (for example, zoning or historic reviews) depending on property conditions and scope. If other permits are required for your project, we’ll let you know what’s needed and can provide pricing to handle those filings upon request.
Completed by Our Charlotte Branch
This Lewisville installation was completed by our Matthews-based Charlotte team and technician Christian Cedillos. We proudly serve homeowners in Lewisville, NC with expert Panels & Service Upgrades and Subpanel Installation services designed for reliability, safety, and long-term value.
Customer Feedback
We’re grateful that John Jackman praised our work with a Google review. Read their feedback here: View Google Review.
Need a Transfer Panel or Subpanel in Lewisville?
If you’re planning a battery backup system, adding a subpanel, or upgrading breakers and circuits, Touchstone Electric can help. Our local team delivers clean workmanship, clear labeling, and inspection-ready installations that make living with backup power simple and safe.
