200A Service, Meter, and Panel Upgrade in Ballantyne

Touchstone Electric completed a permitted 200-amp service upgrade with a new meter/panel combo and grounding system for homeowner Max Nunez in Ballantyne. Our Charlotte team, dispatched from our Matthews branch, finished the project on June 25, 2026. Technicians on site included Matt Silber, Anthony Vazquez, and Dillon Culley.

Scope of Work

This project falls under our Panels & Service Upgrades and Meter Base & Service Replacement services. We installed a modern, code-compliant meter/panel combo rated for 200A with feed-through lugs, built to support present load and future expansion. A new grounding system was installed and bonded, circuits were clearly labeled, and a basic surge protector was added for whole-home protection.

Meter/Panel Combo – 200A: Over/under configuration with feed-through lugs, installed with ground rods and grounding electrode conductors.
Surge Protection: Basic whole-home surge protector for essential protection against voltage spikes.
Clear Labeling: All circuits accurately labeled for easier troubleshooting and maintenance.

Breakers Installed

1x 25A Standard (Double-Pole) – small condenser, well pump, or small mini-split
2x 30A Standard (Double-Pole) – dryer, water heater, air condenser, spa, EV charger, etc.
2x 45A Standard – larger loads such as water heater, air condenser, spa, EV charger, etc.
1x 50A Standard – range, furnace/heat, small subpanel, EV charger, etc.
5x 15A Tandem – standard branch circuits
2x 20A Tandem – small appliance circuits
1x 20A Standard (Double-Pole) – dedicated small appliance or equipment load

Permitting and Utility Coordination

We handled the electrical permit with the county and coordinated the power drop with the local utility to complete the service change safely and efficiently. Every jurisdiction has unique requirements; this job included only the electrical permit. If projects require Historic Preservation, Environmental/Septic, Zoning, separate subcontractor, or building permits, those are handled separately and can be quoted as needed.

Code and Safety Considerations

As inspectors implement NEC 2020, certain circuits may be required to use AFCI breakers. In some homes, preexisting wiring conditions—such as shared neutrals—can cause nuisance tripping and may require additional diagnostic time to resolve. Our team communicates these possibilities up front so homeowners understand potential next steps if an inspector requires AFCI upgrades.

Note: The scope above did not include the riser/weatherhead, service-entrance cable from the new meter to the weatherhead, or feeder and conduit to additional main panels (if needed). For outage periods, we can make a generator available for limited temporary power upon customer request.

Results for This Ballantyne Home

The upgraded 200A service and grounded meter/panel combo provide improved reliability, cleaner organization, and capacity for future additions like EV charging or comfort upgrades. Clear labeling makes routine maintenance faster and safer, while the surge protector adds essential first-line defense for sensitive electronics.

Customer Feedback

Following completion, Max Nunez left a review for our Charlotte team. We appreciate the opportunity to serve Ballantyne homeowners and continually improve through customer feedback.

Why Ballantyne Homeowners Choose Touchstone Electric

Local expertise from our Charlotte team (Matthews branch) with permitted, inspector-ready work
Utility coordination to minimize downtime during service changes
Transparent scope, clear exclusions, and upfront code guidance
Thoughtful circuit labeling and neat, professional installations
Options for limited temporary power during outages (on request)

If you need a meter base replacement or a full 200A panel and service upgrade in Ballantyne, our licensed electricians are ready to help.

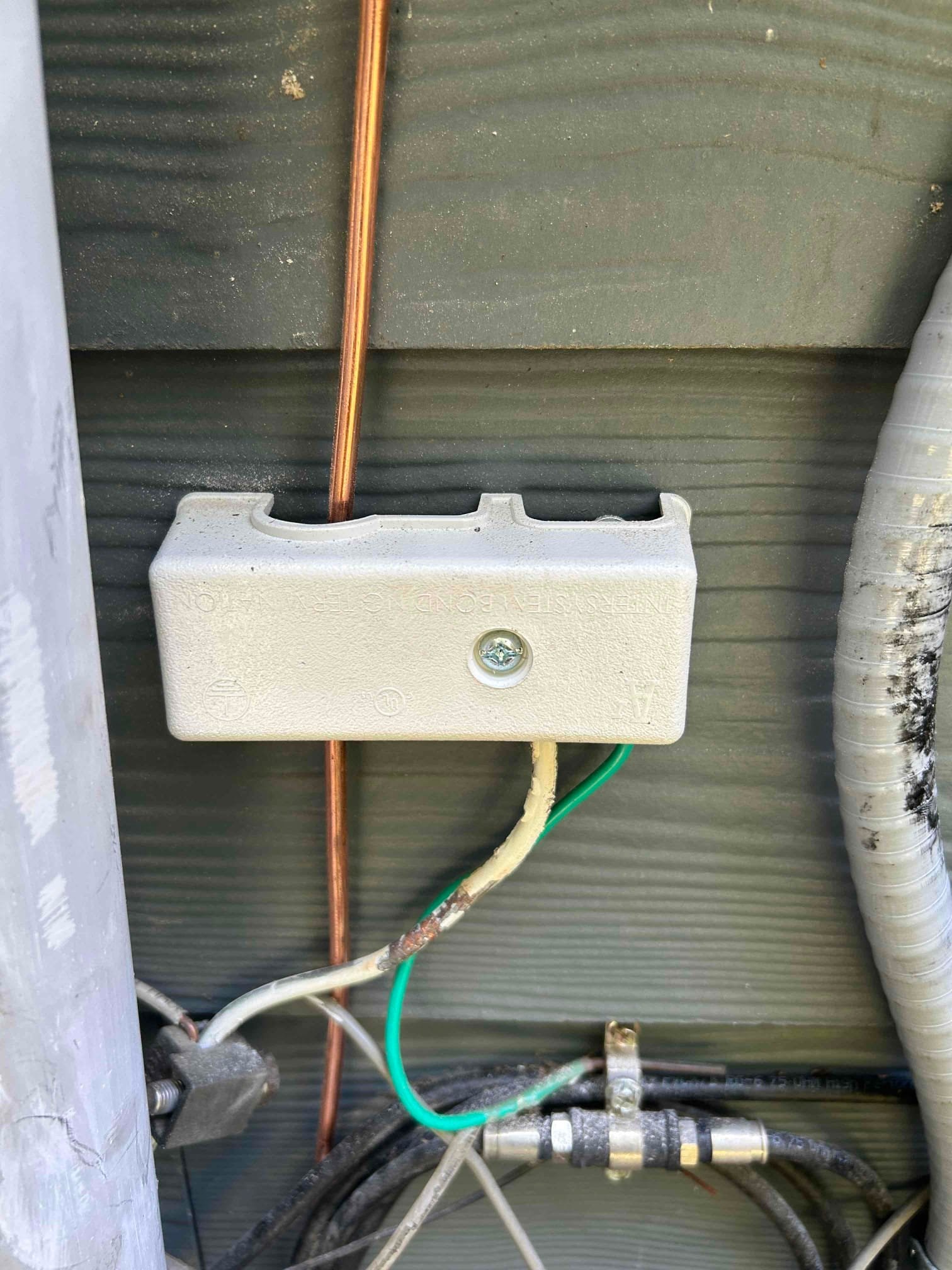

Ballantyne 200A Service, Meter & Panel Upgrade + Grounding
