Completed 30A Dedicated Circuit Project in Waxhaw, NC
Touchstone Electric completed a permitted, code-compliant 30-amp dedicated circuit and breaker installation for homeowner Steve Smith in Waxhaw, NC. This project was handled by our Matthews branch (Charlotte business unit) and performed by technician Christian Cedillos on February 22, 2025.
Whether you are powering a new appliance or planning for future upgrades, a dedicated 30A circuit delivers the capacity and safety modern homes in Waxhaw need. Our team ensured the installation met local code requirements from start to finish.
Scope of Work on This Installation
- 30A circuit wiring: Pulled approximately 130 feet of NM-B Romex 10/2 to supply a dedicated 30-amp branch circuit for a larger appliance. Includes any required junction box; does not include receptacles, switches, or fixture installations.

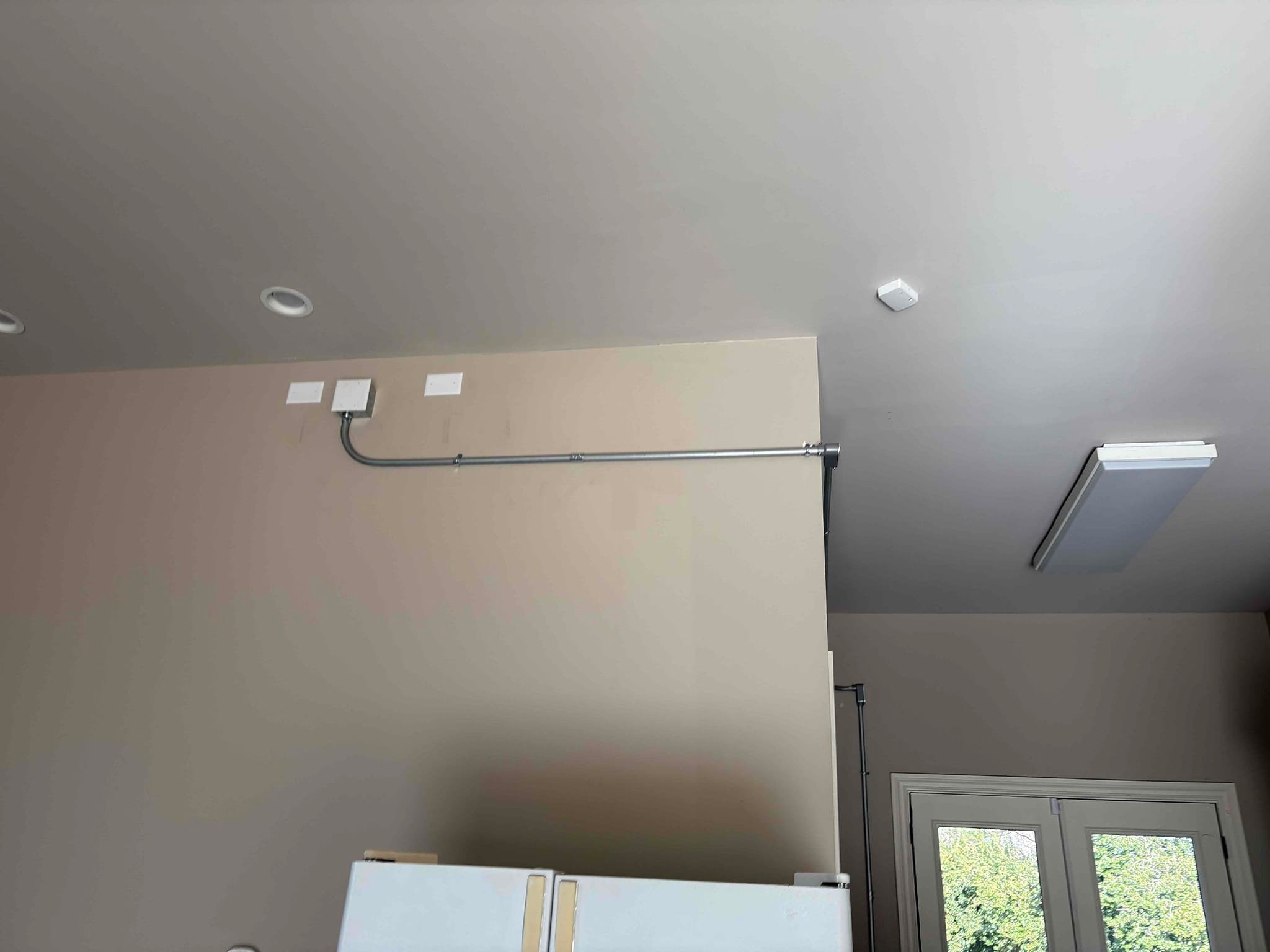

- Conduit runs: Installed EMT conduit for protection and routing, including 16 feet of 3/4" EMT and 20 feet of 1" EMT with appropriate mounting hardware, connectors, and LBs as applicable.
- Rigid components: Added rigid materials as required for durability and compliance at transition points.
- Trenching: Completed approximately 25 feet of trenching at a 6-inch depth for routing, as planned. Note: customer to call 811 before any digging.
- Panel upgrade work: Installed a standard double-pole 30-amp breaker dedicated to the new circuit.
- Permitting: Filed the electrical permit with the county and performed work to current code requirements.
This installation was tailored for safe, reliable operation and future serviceability, using neat routing and durable materials appropriate for the environment.
Permitting and Code Compliance
We obtained and filed the required electrical permit for this project. Please note that every jurisdiction can have different requirements. The permit covered here is only for the electrical scope. If a project requires non-electrical permits (for example, Historic Preservation, Environmental/Septic, Zoning, separate Subcontractor permits, or a Builder’s permit), those are not included. If additional permits are identified, we’ll inform you of what is needed for you to handle and, if requested, provide pricing to process and file those non-electrical permits.
Why a Dedicated 30-Amp Circuit?
A 30-amp dedicated circuit is commonly used for higher-demand equipment and appliances to prevent nuisance tripping and overloading. Typical applications include:
- Electric dryers and water heaters
- Air condensers and spas
- EV chargers and similar loads requiring a dedicated 30A supply
If you’re planning to add one of these appliances in your Waxhaw home, a properly sized, dedicated circuit protects your investment and your electrical system.
Local Service in Waxhaw from Our Matthews Branch
Touchstone Electric proudly serves homeowners in Waxhaw, NC from our Matthews branch within the greater Charlotte area. Our team regularly handles panel-related work, service upgrades, and dedicated circuit installations that align with local code and inspection standards.
Related services include:
- Panels & Service Upgrades
- Circuit Breaker Repair & Replacement
Your Technician
This project was completed by Christian Cedillos, delivering a clean, professional installation and clear communication throughout the process.
Customer Feedback
We’re grateful that Steve Smith praised our work with a Google review after the installation. You can view the review here: Read the Google review.
Need a 30A Circuit or Breaker Work in Waxhaw?
If you’re adding a new appliance or planning an upgrade, our licensed electricians can design and install the right dedicated circuit and breaker solution for your home in Waxhaw, NC. Contact Touchstone Electric to schedule your visit with our Matthews-based team.
