200A Panel Upgrade and Meter Base Replacement in Anderson, SC

Our Greenville team out of the Taylors branch completed a comprehensive electrical service upgrade for homeowner Sarah Rider in Anderson, SC. Led by technician Tyler Harris, this project brought the home’s service equipment up to modern standards with a new 200-amp main panel, a surface-mount meter/panel combo, updated 4‑wire service, a robust grounding system, whole‑home surge protection, and a dedicated 20A crawlspace circuit. Completed on May 31, 2024, this work falls under our Panels & Service Upgrades and Meter Base & Service Replacement specialties.

Project Overview

The existing meter and service entrance were embedded in brick, and the interior panel lacked a neutral from the meter—an issue that can create safety and performance problems. To correct this, we installed a new surface‑mount meter/panel combo and ran new 4‑wire service conductors to a code‑compliant 200A indoor main panel. We also established a proper grounding electrode system and installed whole‑home surge protection to help safeguard connected electronics and appliances.

Installed a new 200A indoor main panel with updated labeling and bonding
Replaced the embedded meter with a surface‑mount meter/panel combo
Pulled new 4‑wire service conductors (including neutral) from meter to main panel
Set a complete grounding system and bonded the service equipment
Added whole‑home surge protection at the main panel
Installed conduit from the new meter to the weatherhead and to the drip loop interface
Provided a dedicated 20A crawlspace circuit with two receptacles for a sump pump and dehumidifier
Removed the old meter and service conduit that had been set into the brick

Note: Any masonry repair associated with the previous embedded equipment opening is outside the scope of electrical work and handled separately.

Why a 4‑Wire Service and New Panel Matter

Modern electrical systems require a dedicated neutral and equipment grounding path for safe operation and reliable fault clearing. By running a proper 4‑wire service to the new main panel, we improved system safety, reduced the risk of stray current, and aligned the home with current electrical codes. The new 200A panel offers expanded capacity and cleaner organization, with circuits clearly labeled for easier maintenance and future upgrades.

Grounding and Surge Protection for Whole‑Home Safety

A well‑installed grounding electrode system helps dissipate fault current and transient energy. Paired with whole‑home surge protection at the main panel, the home gains a strong first line of defense against voltage spikes from lightning, utility events, or large appliance cycling. This layered approach supports both safety and the longevity of sensitive electronics.

Crawlspace Power Solution

Moisture management equipment works best on a dedicated circuit. We installed a 20A circuit with two receptacles in the crawlspace to reliably power a sump pump and dehumidifier without nuisance trips or overloading other household circuits.

Permitting, Utility Coordination, and Clean Execution

Touchstone Electric handled permitting, inspections, and the scheduled power shutoff with the utility to complete the meter and panel upgrade efficiently. We also removed the old service components that were set into the brick and transitioned to a clean, surface‑mounted installation for improved accessibility and future serviceability.

Local Expertise in Anderson, SC

As a residential electrical contractor serving Anderson, SC, our Greenville branch delivers expert Panels & Service Upgrades and Meter Base & Service Replacement solutions. After the work, Sarah Rider praised our team with a positive review—another example of our commitment to safety, code compliance, and customer care.

If you’re considering a 200A upgrade, meter base replacement, surge protection, or dedicated circuits for critical equipment, our team is ready to help you plan and complete the work with minimal disruption.

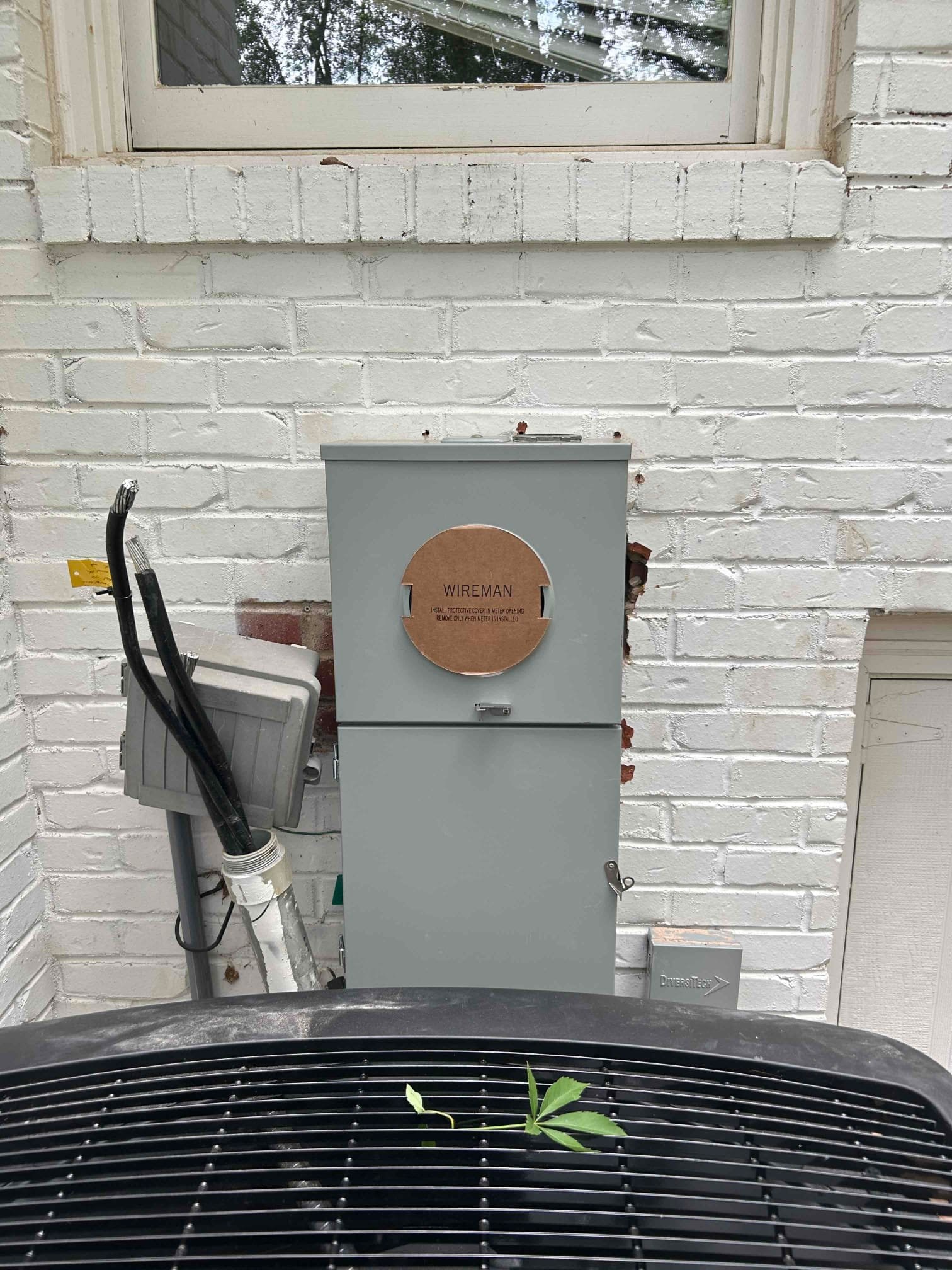

200A Panel Upgrade & Meter Base Replacement in Anderson, SC
