200A Panel & Meter Service Upgrade with Surge Protection in Waxhaw, NC

Professional 200A Service Upgrade in Waxhaw, NC

Touchstone Electric recently completed a comprehensive 200A meter and electrical panel upgrade with whole‑home surge protection for Dogwood Home Improvement Llc in Waxhaw, NC. Led by our technician Jose Rodriguez, this project was delivered by our Matthews branch as part of our Charlotte service team and finished on September 12, 2025. All work followed stamped customer-provided electrical plans and was installed to current NEC code requirements.

This upgrade provides the capacity, safety, and reliability needed for modern homes and remodels, including dedicated circuits for kitchen, laundry, HVAC, and specialty loads.

Scope of Work Completed

• 200A Meter Service: New meter with conduit, riser, and service entrance cable from the meter to the weatherhead and drip loop.
• 200A Main Panel: Installed one 40/80 200A panel with new feeder from meter to panel, including full panel labeling for clarity and future service.
• Main Disconnect: Installed to meet NEC requirements for service equipment safety and emergency shutoff.
• Grounding System: Two ground rods with a grounding electrode conductor (GEC) from the meter for a compliant, low-impedance path to earth.
• Whole‑Home Surge Protection: Installed per NEC 2020. Includes a manufacturer warranty up to $10,000 against damage to connected home appliances in the unlikely event of device failure.
• Life Safety: Interlinking wire for smoke detectors for coordinated alarm operation.
• Ventilation Power: Dedicated power for bathroom builder-grade exhaust fans.
• HVAC & Major Appliances: Wiring for HVAC, disposal, dishwasher, range, cooktop, microwave, and dryer per plans.
• Kitchen Circuits: Two 20A small-appliance branch circuits with GFCI protection for countertops; AFCI protection provided for lighting circuit.
• Laundry: 20A GFCI-protected circuit for laundry.
• Dining: 20A dedicated dining room circuit.
• Bathrooms: 20A GFCI-protected bathroom circuits.
• Specialty Load: 20A dedicated circuit for an electric fireplace.
• Devices & Lighting: Outlets, lights, and switches wired to plan or to NEC where not specified. (Door bell and chime not included.)
• Permitting & Inspections: Electrical permit obtained; work coordinated around rough‑in and final inspections.

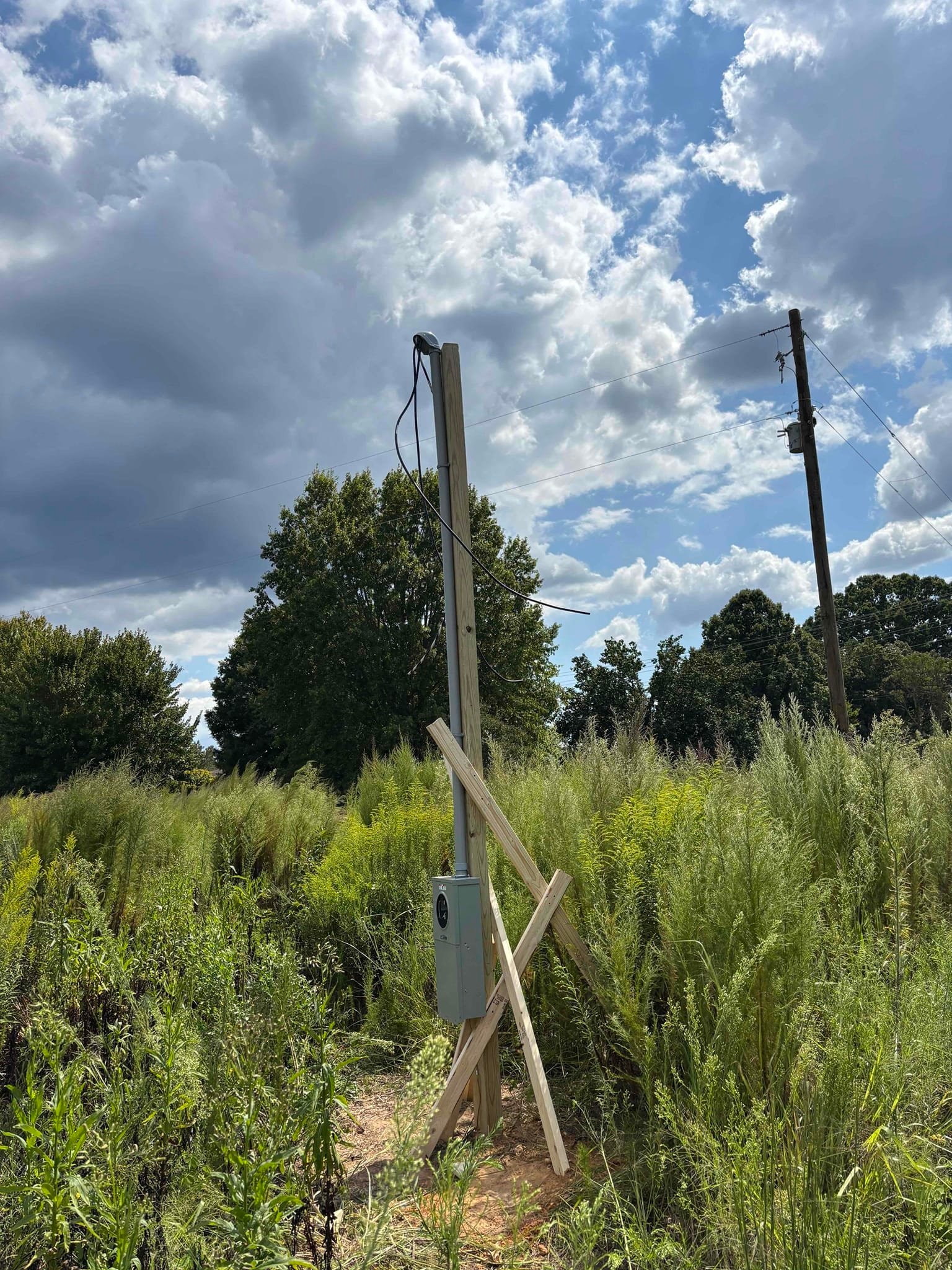

• Temporary Power: One overhead temporary power pole with meter/panel combo, weatherhead, riser, drop loop (proper clearances), grounding, and a 20A receptacle, including utility work order and county permit coordination.

Code-Compliant, Reliable Power for Your Remodel

With a new 200A service, this Waxhaw property now supports today’s higher electrical demands with capacity to grow. The panel is neatly labeled for quick troubleshooting, while surge protection helps shield sensitive electronics and appliances from transient voltage spikes. GFCI and AFCI protection were applied where required to enhance safety against shock and arc faults.

Every element—from the grounding system to the main disconnect—was installed to current code, helping ensure successful inspections and long-term reliability.

Local Experts Serving Waxhaw and the Greater Charlotte Area

Our Matthews branch team specializes in panel and service upgrades across Waxhaw, NC. We manage permitting, coordinate with inspectors and utilities, and keep projects moving with clear communication and clean workmanship.

Following completion, the customer praised our team in their review, reflecting our commitment to quality and professionalism on every project.

Need a Panel or Service Upgrade in Waxhaw?

If you’re planning a remodel, adding new appliances, or experiencing panel limitations, Touchstone Electric can evaluate your service and design a code-compliant upgrade to fit your needs. From temporary power to final labeling, our Charlotte-based team delivers start-to-finish solutions that are safe, organized, and inspection-ready.
